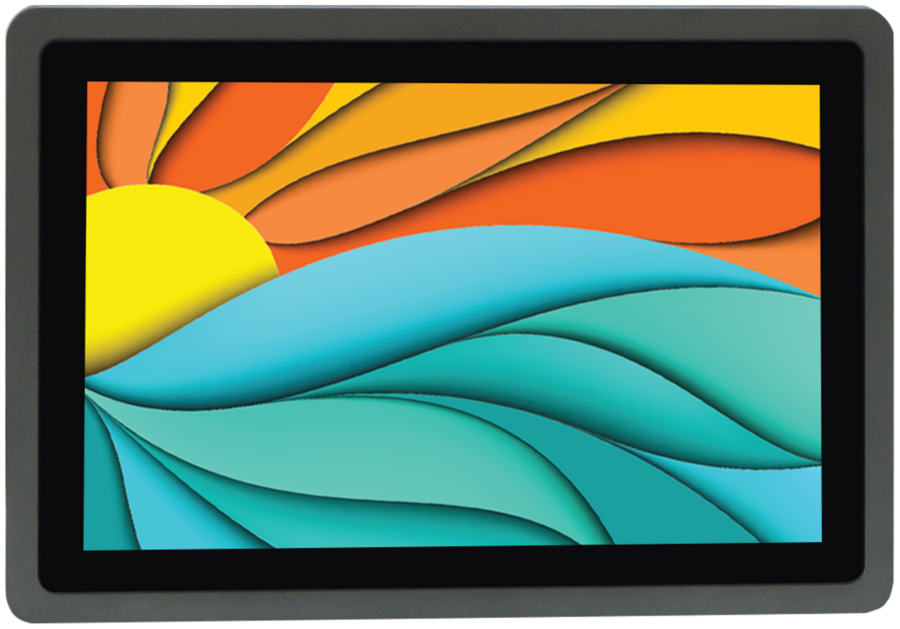

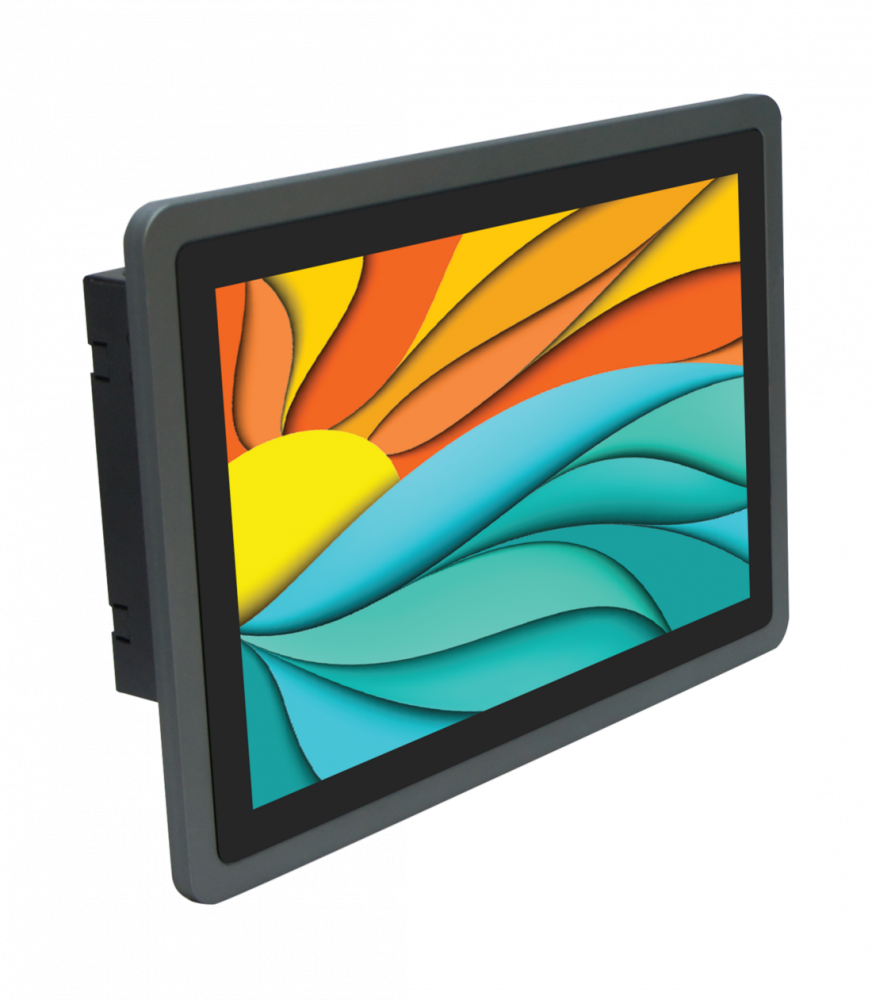

TEP - Human Machine Interface TFT Touch Display

High contrast TFT/LCD screens available in different display sizes

TEP devices are fanless human machine interfaces based on ARM or X86 technology enclosed in a compact fully aluminium ruggedized enclosure. Incorporating a cable-less design having all I/O connectors on the main SBC or adapted via the 'Power Networking Module' or 'Automation I/O Expansion Module' by using a high-speed board-to-board connector.

TEP Display and Touch

The TEP-series features a flux mounted projective touch with high brightness LCD available in different display sizes.

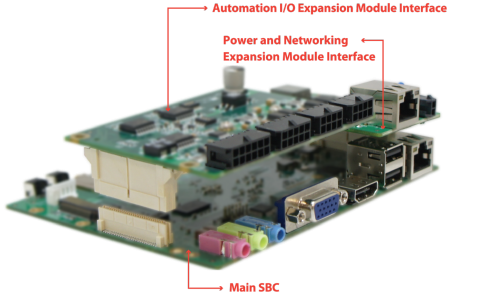

Automation I/O Expansion Module

The AIOEM expands the TEK-Series hardware with addtional I/O functionality. Two versions of expansion modules help customers to fit to most different requirements in projects:

TXB-I2-S2-C2-G8

  • 2x RS232
  • 2x CAN
  • 8x GPIO



TXB-I2-GS2-GC2-GG8

  • 1x RS232 galvanic isolated
  • 1xRS232/422/485 galvanic isolated
  • 2x CAN galvanic isolated
  • 4x digital input galvanic isolated
  • 4x digital input galvanic isolated



Power and Networking Expansion Module

The TEK-series comes with a Power and Networking Expansion Module that not only adopts to the end-user application power requirements but also adds networking and interfaces like SPI, I²C and GPIO.

TXB-P1-12V-LAN1

  • 12VDC power input1
  • 1x RJ45 LAN connector

 TXB-P1-24V-LAN1

  • 24VDC power input
  • 1x RJ45 LAN connector

TXB-P1-1030V-LAN1

  • 10-30VDC power input
  • 1x RJ45 LAN connector

TXB-P1-12V-POE1

  • 12VDC power input
  • 1x RJ45 LAN PoE (802.3at)

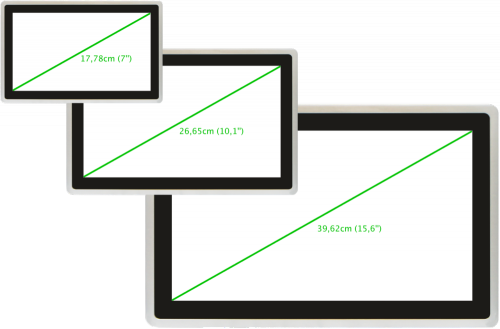

  • 17,78cm/26,65cm/39,62cm Display size
  • projective capacitive touchscreen
  • Cortex A9/X86 CPU
  • 1GHz to 1.6GHz CPU speed
  • Single/Dual/Quad core
  • 512MB - 8GB RAM
  • 4GB eMMC NAND Flash / SSD
  • 10/100/1000 Mbit Ethernet
  • USB Host/OTG
  • GPIO
  • serial interfaces
  • CAN
  • 12V/24V/10-30V/PoE supply



Model Overview:





Model Name

TEP5-IMX6

TEP5-BSW



  Display 17,78cm (7''), 1024x600, 500cd/m² 17,78cm (7''), 1024x600, 500cd/m²
    26.65cm (10,1''), 1280x800, 350cd/m² 26.65cm (10,1''), 1280x800, 350cd/m²
    39,62cm (15,6''), 1366x768, 300cd/m² 39,62cm (15,6''), 1366x768, 300cd/m²

  Touchscreen projective capacitive

  CPU i.MX6 Solo, 1GHz Pentium N3710, Quad Core, 1,6GHz
    i.MX6 DualLite, 1GHz Celeron N3160, Quad Core, 1,6GHz
    i.MX6 Dual, 1GHz Celeron N3060, Dual Core, 1,6GHz
    i.MX6 Quad, 1GHz Celeron N3010, Dual Core, 1,6GHz
      AtomX5-E8000, Quad Core, 1,6GHz

  Memory up to
4 GB DDR3 RAM		 up to
8 GB DDR3 RAM

  Mass Storage 4GB eMMC
NAND Flash		 M.2 SSD / 4GB
eMMC NAND Flash (optional)

  SD-card

✓

✓



  Ethernet 10/100/1000 MBit 10/100/1000 MBit

  USB Host 2 2

  USB OTG 1 1

  Display 1x HDMI 3x mini
    1x VGA display port

  Audio 3x 3,5mm 3x 3,5mm
    Audio Jack Audio Jack

  miniPCIe slot 1 1


  M.2 Connector 1 1


  Expansion Pin Header 2 2

  CAN Bus 2 (on I/O n.a.
    expansion board)

  Serial 2 (on I/O 2 (on I/O
    expansion board) expansion board)


  GPIO 8 (on I/O 8 (on I/O
    expansion board) expansion board)


  Dimensions 168(w) x 109(h) x 55(D) mm

  Weight 685g

  Software Linux, Android Linux, Windows



TEP0500IMX6G05R05E04L112 TEP 5 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH 12V INPUT
TEP0500IMX6G05R05E04L130 TEP 5 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH 10-30V INPUT
TEP0500IMX6G05R05E04LPOE TEP 5 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH POE LAN
TEP0500IMX7DR10E04L112 TEP 5 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH 12V INPUT
TEP0500IMX7DR10E04L130 TEP 5 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH 10-30V INPUT
TEP0500IMX7DR10E04LPOE TEP 5 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH POE LAN
TEP0700IMX6G05R05E04L112 TEP 7 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH 12V INPUT
TEP0700IMX6G05R05E04L130 TEP 7 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH 10-30V INPUT
TEP0700IMX6G05R05E04LPOE TEP 7 INCH PCAP TOUCH LCD NXP I.MX6UL + 512MB RAM + 4G EMMC WITH POE LAN
TEP0700IMX7DR10E04L112 TEP 7 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH 12V INPUT
TEP0700IMX7DR10E04L130 TEP 7 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH 10-30V INPUT
 TEP0700IMX7DR10E04LPOE  TEP 7 INCH PCAP TOUCH LCD NXP I.MX7 DUAL + 1GB RAM + 4G EMMC WITH POE LAN
TEP1010E8000R20L112 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT
TEP1010E8000R20L112XG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010E8000R20L112XS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT AND SERIAL/GPIO EXPANSION
TEP1010E8000R20L130 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT
TEP1010E8000R20L130XG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010E8000R20L130XS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT AND SERIAL/GPIO EXPANSION
TEP1010E8000R20LPOE TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN
TEP1010E8000R20LPOEXG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010E8000R20LPOEXS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN AND SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04L112 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT
TEP1010IMX6QR20E04L112XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04L112XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04L130 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT
TEP1010IMX6QR20E04L130XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04L130XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04LPOE TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN
TEP1010IMX6QR20E04LPOEXG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6QR20E04LPOEXS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04L112 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT
TEP1010IMX6SR05E04L112XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04L112XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04L130 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT
TEP1010IMX6SR05E04L130XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04L130XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04LPOE TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN
TEP1010IMX6SR05E04LPOEXG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6SR05E04LPOEXS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04L112 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT
TEP1010IMX6UR10E04L112XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04L112XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04L130 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT
TEP1010IMX6UR10E04L130XG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04L130XS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04LPOE TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN
TEP1010IMX6UR10E04LPOEXG20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1010IMX6UR10E04LPOEXS20 TEP 10.1 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1010N3710R20L112 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT
TEP1010N3710R20L112XG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010N3710R20L112XS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT AND SERIAL/GPIO EXPANSION
TEP1010N3710R20L130 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT
TEP1010N3710R20L130XG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010N3710R20L130XS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT AND SERIAL/GPIO EXPANSION
TEP1010N3710R20LPOE TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN
TEP1010N3710R20LPOEXG21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1010N3710R20LPOEXS21 TEP 10.1 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN AND SERIAL/GPIO EXPANSION
TEP1560E8000R20L112 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT
TEP1560E8000R20L112XG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560E8000R20L112XS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 12V INPUT AND SERIAL/GPIO EXPANSION
TEP1560E8000R20L130 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT
TEP1560E8000R20L130XG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560E8000R20L130XS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH 10-30V INPUT AND SERIAL/GPIO EXPANSION
TEP1560E8000R20LPOE TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN
TEP1560E8000R20LPOEXG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560E8000R20LPOEXS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL ATOM X5-E8000 + 2GB RAM WITH POE LAN AND SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04L112 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT
TEP1560IMX6QR20E04L112XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04L112XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04L130 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT
TEP1560IMX6QR20E04L130XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04L130XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04LPOE TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN
TEP1560IMX6QR20E04LPOEXG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6QR20E04LPOEXS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 QUAD + 2GB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04L112 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT
TEP1560IMX6SR05E04L112XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04L112XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04L130 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT
TEP1560IMX6SR05E04L130XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04L130XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04LPOE TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN
TEP1560IMX6SR05E04LPOEXG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6SR05E04LPOEXS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 SOLO + 512MB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04L112 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT
TEP1560IMX6UR10E04L112XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04L112XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 12V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04L130 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT
TEP1560IMX6UR10E04L130XG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04L130XS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH 10-30V INPUT AND CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04LPOE TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN
TEP1560IMX6UR10E04LPOEXG20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN AND GALVANIC ISOLATED CAN/SERIAL/GPIO EXPANSION
TEP1560IMX6UR10E04LPOEXS20 TEP 15.6 INCH PCAP TOUCH LCD PC NXP I.MX6 DUALLITE + 1GB RAM + 4G EMMC WITH POE LAN AND CAN/SERIAL/GPIO EXPANSION
TEP1560N3710R20L112 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT
TEP1560N3710R20L112XG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560N3710R20L112XS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 12V INPUT AND SERIAL/GPIO EXPANSION
TEP1560N3710R20L130 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT
TEP1560N3710R20L130XG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560N3710R20L130XS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH 10-30V INPUT AND SERIAL/GPIO EXPANSION
TEP1560N3710R20LPOE TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN
TEP1560N3710R20LPOEXG21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN AND GALVANIC ISOLATED SERIAL/GPIO EXPANSION
TEP1560N3710R20LPOEXS21 TEP 15.6 INCH PCAP TOUCH LCD PC INTEL PENTIUM N3710 + 2GB RAM WITH POE LAN AND SERIAL/GPIO EXPANSION
High contrast TFT/LCD screens available in different display sizes
