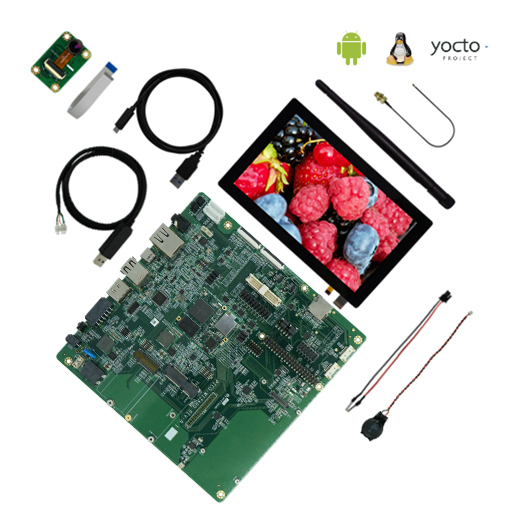

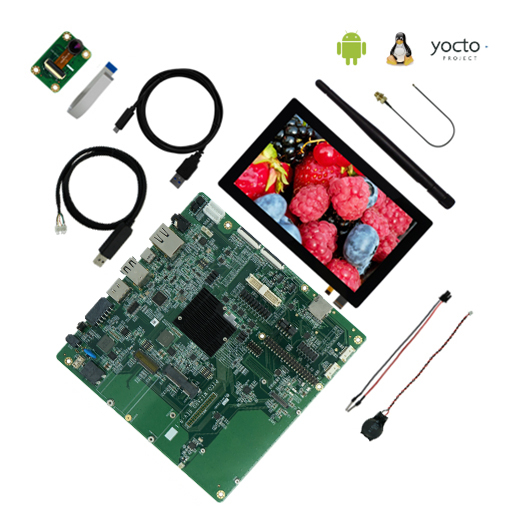

WIZARD
Versatile Evaluation Kit for PICO SoMs
horizontab
Features
PICO 70-pin Hirose connectors
UART Interface by Through-hole
1x Atheros AR8035 Gigabit LAN
1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
1x Qualcomm Atheros QCA9377 Bluetooth 5
1MHF4 connector
1x M.2 slot
1x mini-PCIe
MIPI DSI signals on 70-pin Hirose connector
Expansion Headers:GPIO, I²C, I²S, PWM, SPI, UART, USB
1x HDMI
CTIA compliant 3.5mm audio jack
1x RJ45
1x USB 2.0 Host
1x USB 2.0 OTG (C-Type)
1x Reset
2x Micro-SIM cardslot
1x microSD cardslot
Audio speaker connector (stereo) (2W pre-amplified)
RTC: 2-pin header battery connector with backup Battery
12V DC +/-5%
Commercial: 0° to +50° C
Relative humidity: 10 to 90 %
Size: 170 (W) x 170 (H) x 21.6 (D) mm
Compliant with CE / FCC / RoHS / REACH directives
Software Support
Linux
Yocto
Android

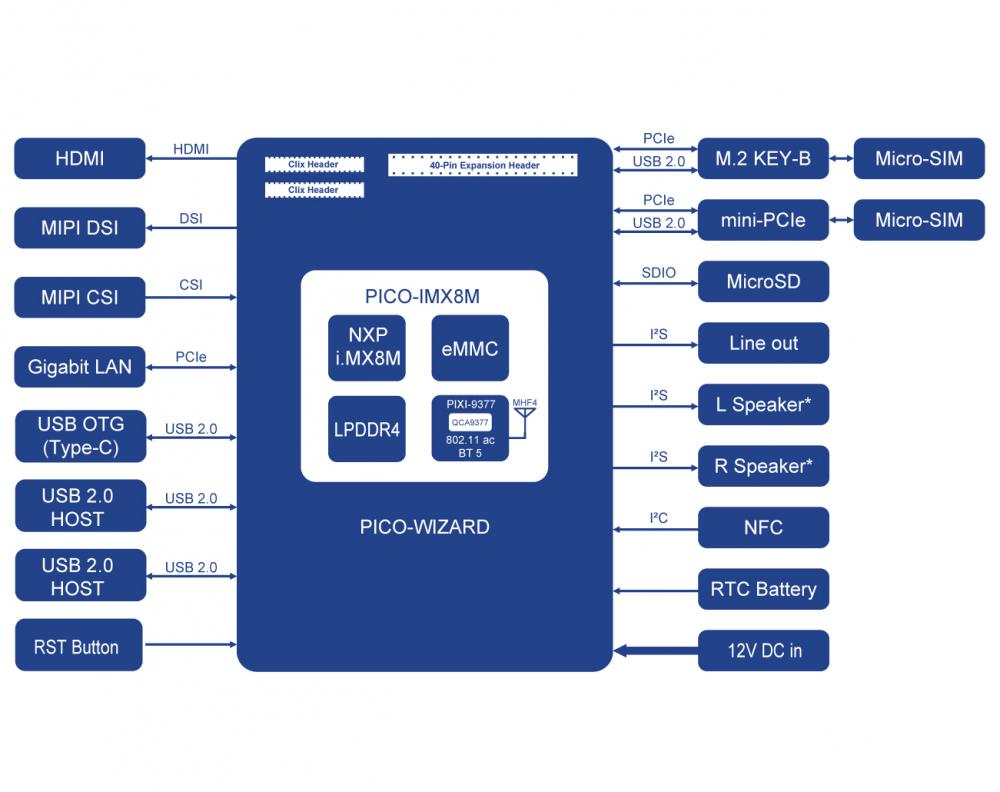

Block Diagram
