PICO-IMX8M System on Module
PICO SoM based on i.MX8M

PICO-IMX8M is an extreme-performance, low-power SoM featuring i.MX8M applications processor based on ARM Cortex-A53 and Cortex-M4 architecture that provides industry-leading video, voice and audio processing capabilities.
Featuring video quality with full 4K UltraHD resolution and HDR. It supports the newest high-speed interfaces for flexible connectivity. The PICO-IMX8M is optimized for fanless operations, low thermal system cost, and long battery life.
Wi-Fi and Bluetooth communication interfaces.
Software source code at your fingertips: Android, Linux, Yocto and Ubuntu.
Open carrier board specifications, design guides, and schematics.
Pre-loaded plug and play start kits.
12-year longevity guarantee.
Features
- Freescale i.MX8M Quad
- ARM Cortex-A53 + M4 core @ up to 1,3 GHz
- ROHM BD71837
- up to 4GB LPDDR4 RAM
- up to 16GB eMMC
- 1x Intel Edison compatible connector (Hirose 70-pin)
- 2x PICO Hirose 70-pin connectors
- RGMII
- 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
- 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
- MHF4 connector (optional)
- I/O: HDMI, MIPI CSI, MIPI DSI, RGMII, PCIe, USB, USB OTG, I²S, SDIO, UART, SPI, I²C, PWM, GPIO
- Vivante GC7000Lite
-
4K UltraHD HDR 4Kp60, H.265 VP9
- MIPI CSI (4 lanes)
- I²S (2 channel)
- 4.2-5.25V DC
- Commercial: 0° to +60° C
-
Extended: -20° to +70° C
-
Industrial: -40° to +85° C
- 37 x 40 mm / 1⅜ x 1⅝ inch
- 8 grams
- Compliant with RoHS / REACH directives
Software Support
- Linux
- Yocto
- Android
- Ubuntu

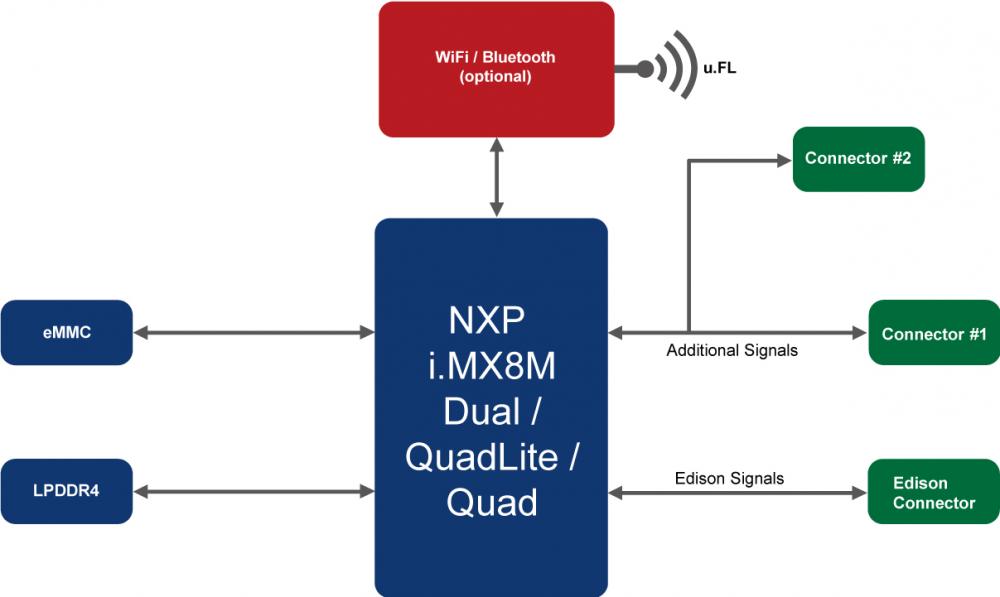

Block Diagram

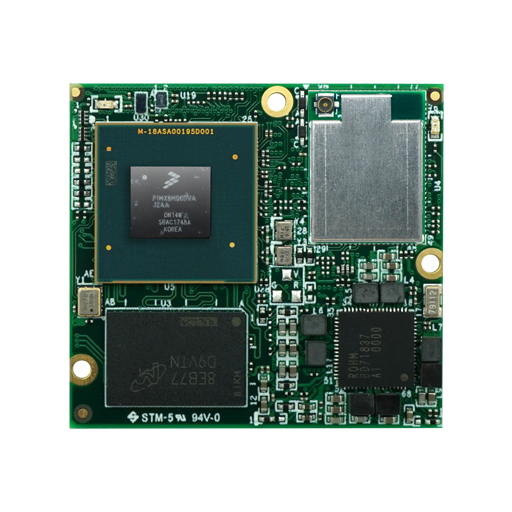

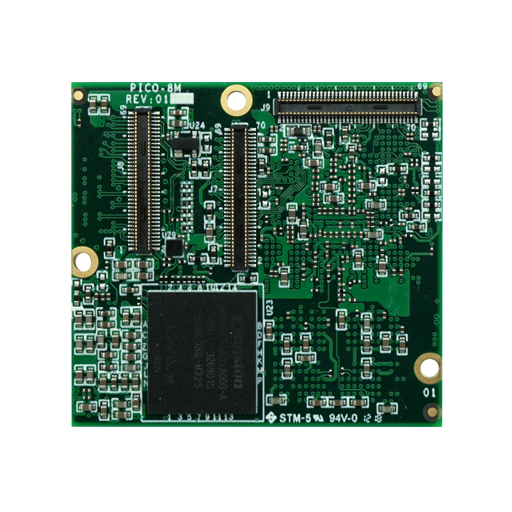

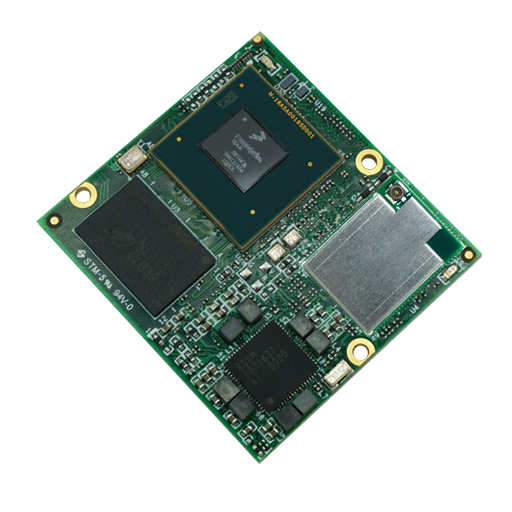

Pictures



Order Codes
i.MX8M Quad |
|
PICO-IMX8MQ13-R10-E08 |
|
PICO-IMX8MQ13-R10-E08-9377 |
|
PICO-IMX8MQ13-R20-E08 |
|
PICO-IMX8MQ13-R20-E08-9377 |
|
PICO-IMX8MQ13-R40-E16 |
|
PICO-IMX8MQ13-R40-E16-9377 |
|
Feel free to contact us for customization requests.
