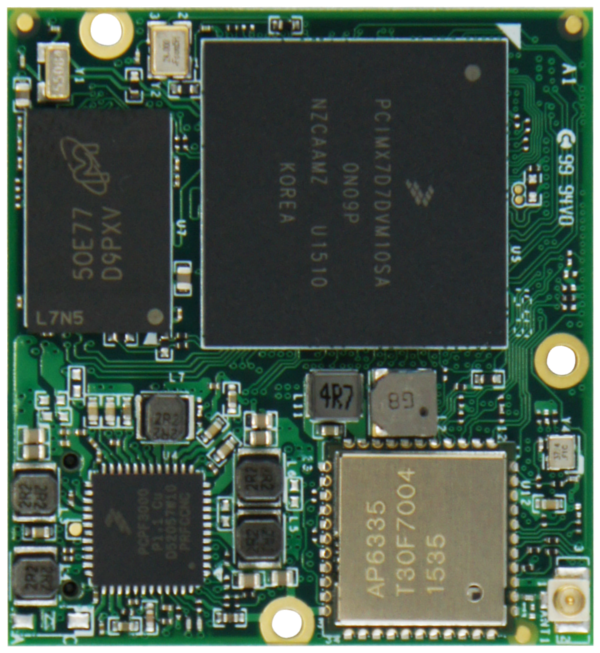

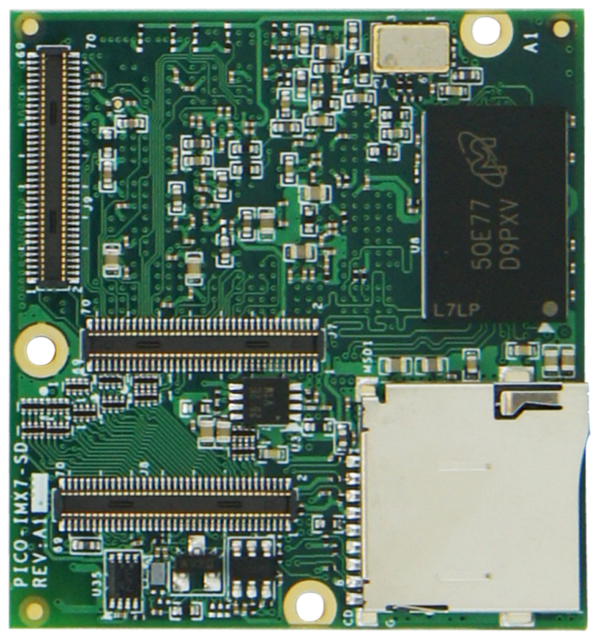

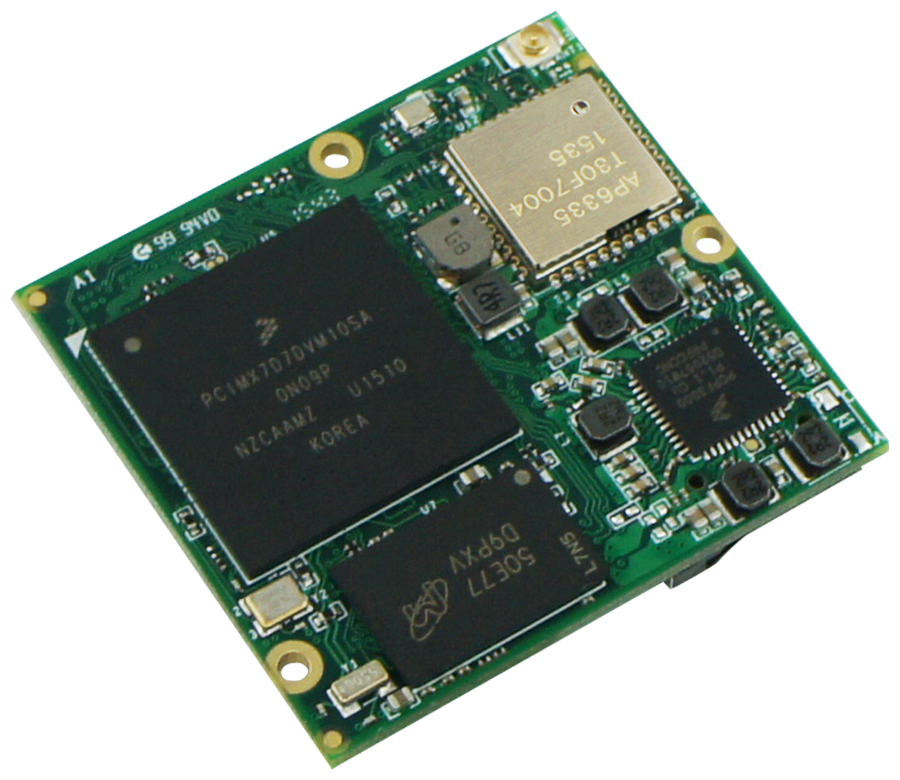

PICO-IMX7 System on Module

PICO SoM for the Internet of Things

The PICO-IMX7 based on the NXP i.MX7 multimedia processor is a purpose-built, small footprint hardware platform equipped with a wide array of high-speed connectivity engineered to support IoT endpoints, wearable applications, appliances, drones or industrial mobile terminals.

The i.MX 7Dual family of processors represents our latest achievement in high-performance processing for low-power requirements with a high degree of functional integration. These processors are targeted towards the growing market of connected devices. The i.MX 7Dual family of processors features our advanced implementation of the ARM® Cortex®-A7 core, which operates at speeds of up to 1 GHz, as well as the ARM® Cortex®-M4 core. The i.MX 7Dual family provides up to 32-bit DDR3L/LPDDR2/LPDDR3-1066 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth, GPS, displays, and camera sensors.

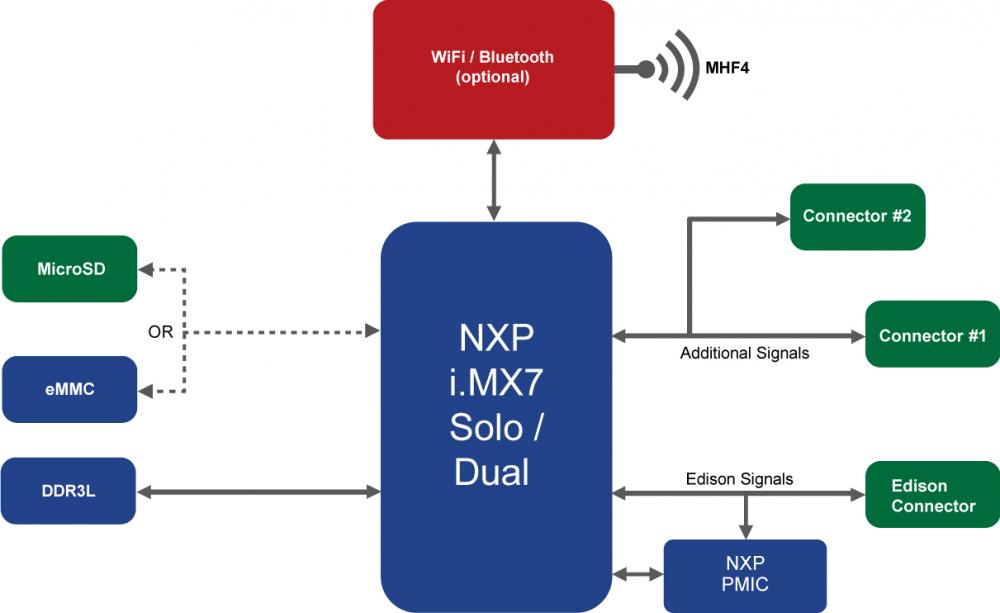

The affordable reference design is compatible with Intel Edison baseboards and adds a number of additional high-speed signals such as PCIe, RGMII LAN, USB as well as 24 bit TTL Display, LVDS, HDMI and MIPI CSI Camera and MIPI DSI Display options.

    • Freescale i.MX7S or i,MX7D
    • ARM Cortex-A7 single or dual core @ up to 1GHz
    • ARM Cortex-M4
    • 512MB or 1GB DDR3 RAM
    • 4GB eMMC NAND Flash or SD-card slot
    • Signals routed to board-to-board connector
    • optionally WiFi/Bluetooth
    • 1x Intel Edison compatible connector (Hirose 70-pin)
    • 2x Hirose 70-pin connectors
    • GPIO
    • I²C
    • I²S
    • SPI
    • UART
    • USB-OTG
    • SDIO
    • 24-bit TTL RGB
    • 10/100/1000MBit Ethernet
    • Flex CAN version 2.0B Compliant
    • 4.2-5.25V DC
    • Commercial : 0° to 60°
    • Extended : -20° to 70° C
    • 36 x 40 mm
    • 8 grams
    • Compliant with CE, FCC, RoHS, REACH directives

    Software Support

    • Linux 3.x
    • Yocto
    • Android 4.3
    • Android 4.4
    • Android 5.0
    • Ubuntu



    i.MX7 Dual


    PICO-IMX7D-10-R05-E04

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 512MB RAM
    • 4GB e.MMC

    PICO-IMX7D-10-R05-E04-9377

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 512MB RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX7D-10-R05-MSD

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 512MB RAM
    • SD CARDSLOT

    PICO-IMX7D-10-R05-MSD-9377

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 512MB RAM
    • SD CARDSLOT
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX7D-10-R10-E08

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 1GB RAM
    • 4GB e.MMC

    PICO-IMX7D-10-R10-E08-9377

    • PICO SOM NXP I.MX7 DUAL 1GHZ
    • 1GB RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX7D-10-R10-MSD

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 1GB RAM
    • SD CARDSLOT

    PICO-IMX7D-10-R10-MSD-9377

    • PICO SOM
    • I.MX7 DUAL 1GHZ
    • 1GB RAM
    • SD CARDSLOT
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5
    PICO SoM for the Internet of Things
