MAXEVK – Intel PSG Arria10 Evaluation Kit

Easy Start and Integration of the Arria10 SoM

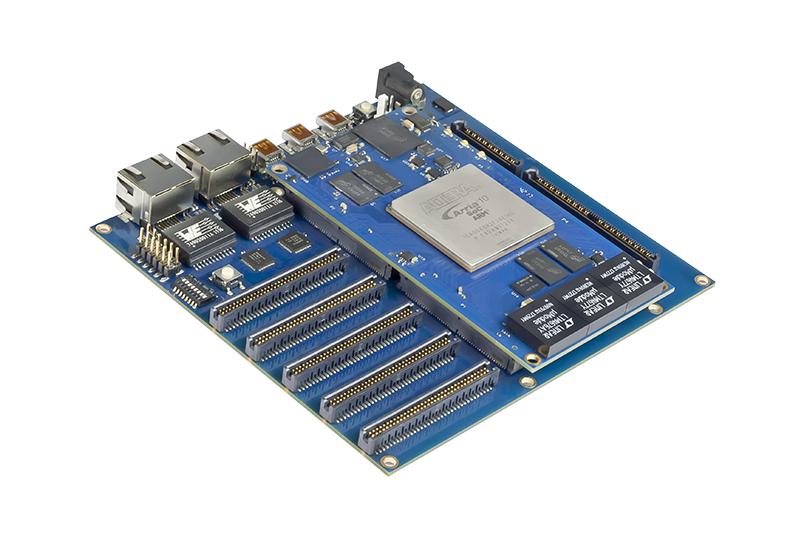

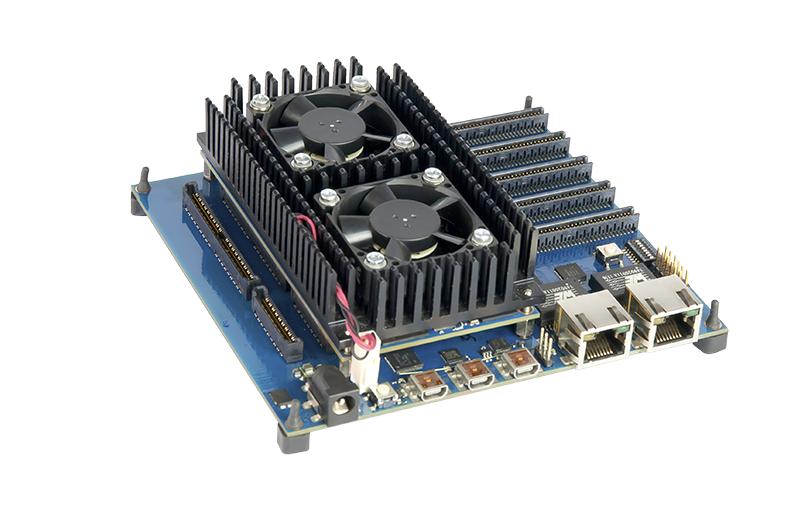

The MAXEVK was developed to serve the MAX System on Modul, based on Arria 10 SoC-FPGA devices. It offers most interfaces of the HPS Subsystem and all FPGA I/O pins on to a 1,27mm pin header. 24 transceive channels are available at two Samtec high-speed connectors. The HPS supports two Gigabit Ethernet interfaces, one USB OTG interface as well as a UART/USB converter. For in-system-programming a USB-Blaster II is implemented.

    • 2 x Gigabit Ethernet
    • USB-OTG
    • UART / USB converter
    • embedded USB-Blaster II
    • 5 x pinheader for FPGA / HPS signals
    • 2 x high-speed conectors for 24 transceiver
    • 12V power supply
    • clock generation for  Ethernet / USB
    • wall plug power supply
    • size: 180 x 180mm





    MAXEVK-66BAEDE

    • MAXEVK baseboard
    • MAX-66BAEDE SoM
      • Arria 10 SoC-FPGA 10AS066
        • 660 KLE
        • 1688  DSP blocks
        • 47Mbit RAM
        • 24 Transceiver
      • 2GByte DDR3 RAM
      • 1GBit configuration device
      • 16GByte eMMC NAND Flash



    MAXEVK-48DCEDE

    • MAXEVK baseboard
    • MAX-48DCEDE
      • Arria 10 SoC-FPGA 10AS048
        • 480 KLE
        • 1368 DSP blocks
        • 32MBit RAM
        • 24 Transceiver
      • 2GByte DDR3 RAM
      • 1GBit configuration device
      • 16GByte eMMC NAND Flash



    MAXEVK-27DCEDE

    • MAXEVK baseboard
    • MAX-27DCEDE
    • Arria 10 SoC-FPGA 10AS027
      • 270 KLE
      • 830 DSP blocks
      • 17 MBit RAM
      • 12 Transceiver
    • 2GByte DDR3 RAM
    • 1GBit configuration device
    • 16GByte eMMC NAND Flash
