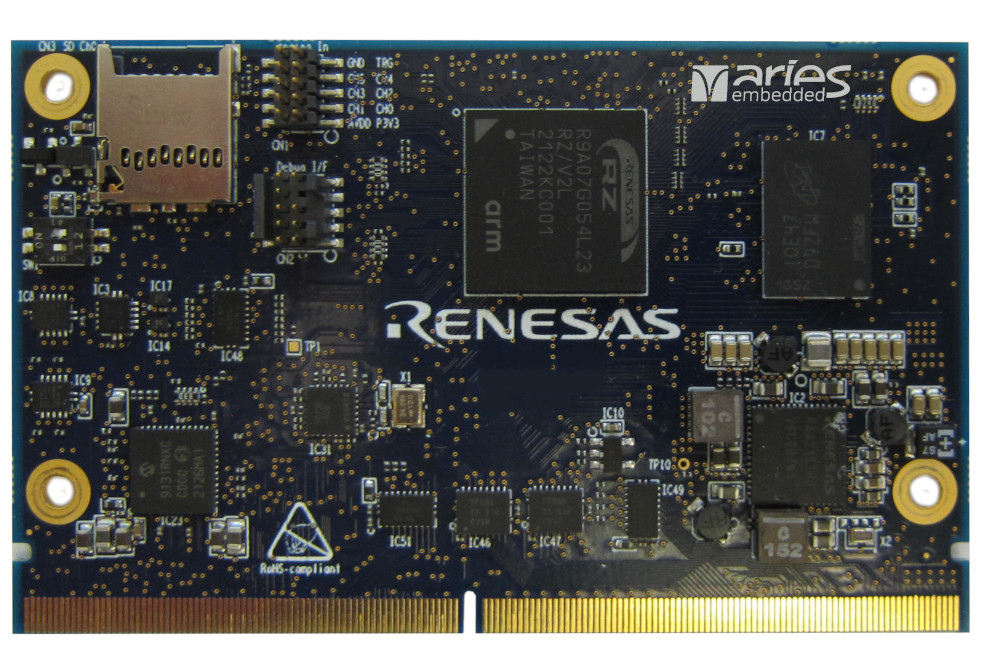

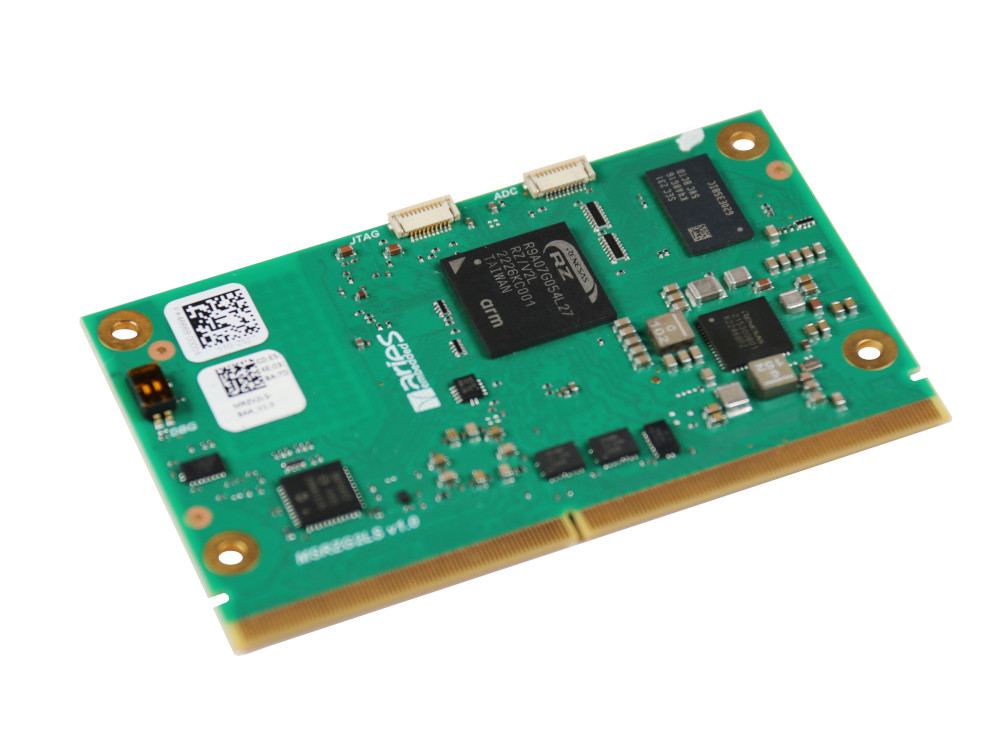

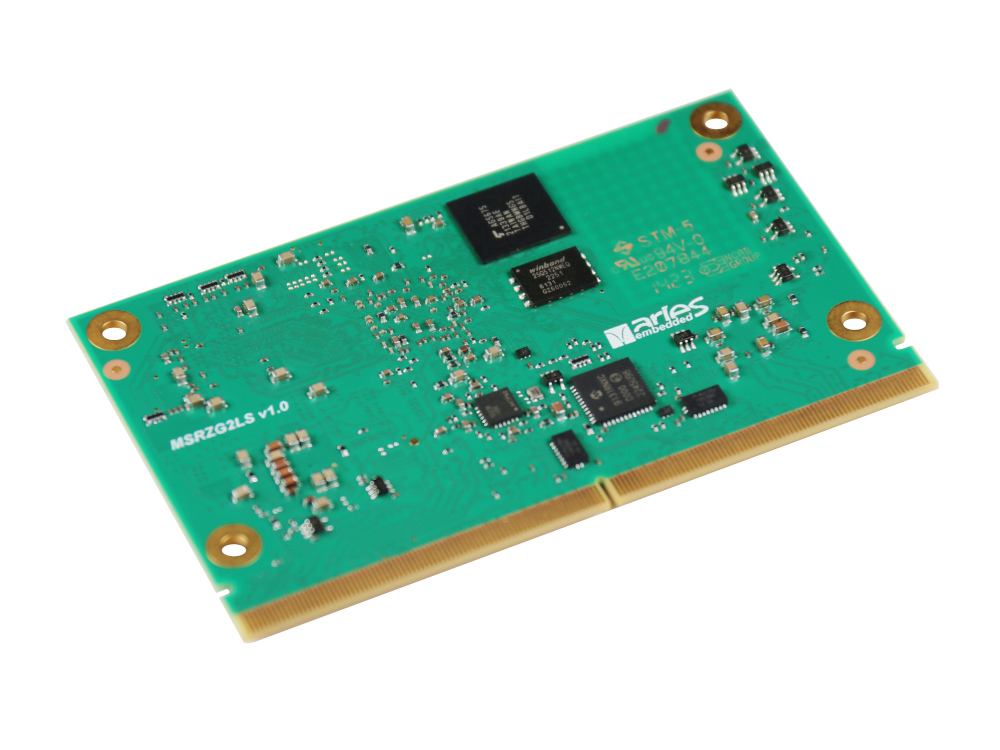

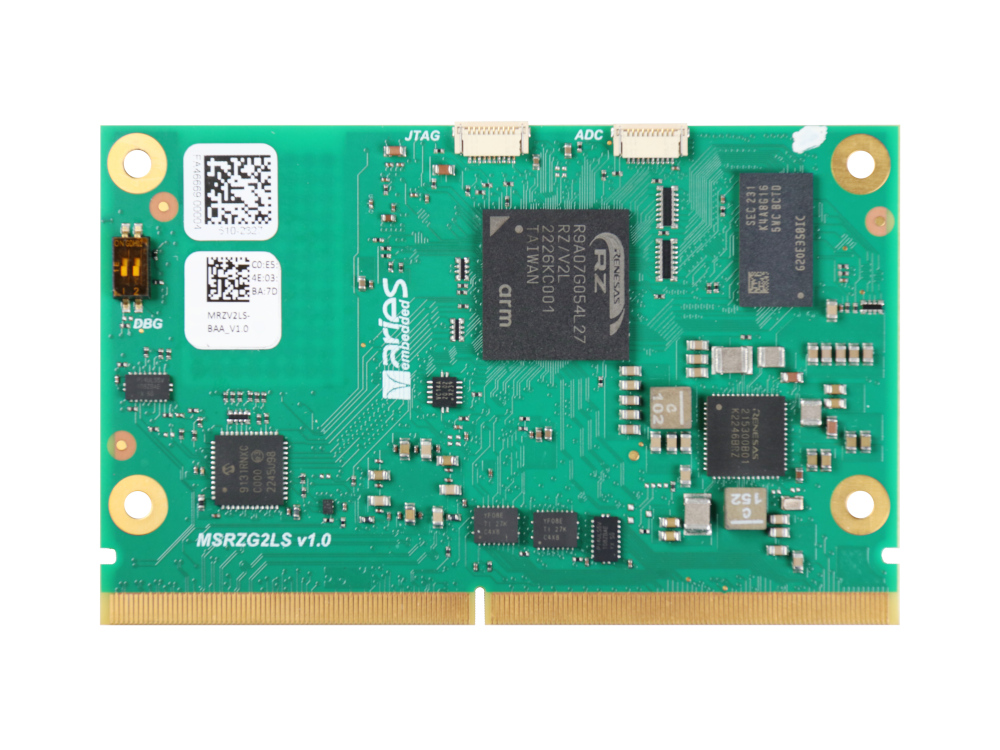

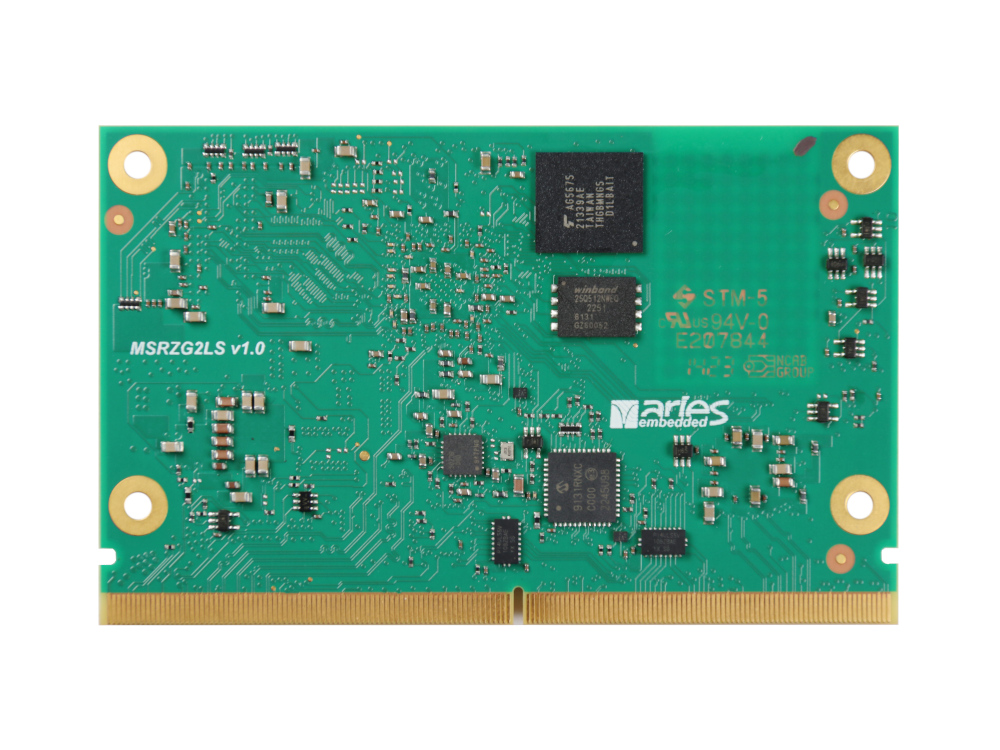

MRZV2LS - CortexA55 CPU with AI Accelerator

RZ/V2L SMARC 2.1 compliant System-on-Module

The MRZG2LS and MRZV2LS are the SMARC V2.1 compliant System-on-Modules based on Renesas RZ Family architecture offering high-performance for embedded systems.

RZ/V2L is equipped with a Cortex®-A55 (1.2GHz) CPU and built-in AI accelerator "DRP-AI" for vision, which is Renesas' original technology. "DRP-AI" is configured with DRP and AI-MAC. It also has a 16-bit DDR3L/DDR4 interface and a built-in 3D graphics engine with Arm Mali-G31 and video codec (H.264).

DRP-AI’s excellent power efficiency eliminates the need for heat dissipation measures such as heat sinks or cooling fans. AI can be implemented cost efficiently not only in consumer electronics and industrial equipment but also in a wide range of applications such as point-of-sale (POS) terminals for retail. Also, the DRP-AI provides both real-time AI inference and image processing functions with the capabilities essential for camera support such as color correction and noise reduction. This enables customers to implement AI-based vision applications without requiring an external image signal processor (ISP).



  • Single or Dual Cortex-A55, up to 1GHz
  • optional AI accelerator; DRP-AI on MRZV2L
  • 3D Graphics engine (Arm Mali-G31)
  • Video Codec (H.264)
  • Cortex-M33
  • 512MB – 4GB DDR4 RAM
  • SPI NOR
  • 4GB-64GB eMMC NAND Flash
  • dual 10/100/1000MBit Ethernet with PHY
  • USB2.0 Host/OTG
  • 2x CAN
  • UART, I2C, SPI
  • ADC
  • Camera interface MIPI-CSI
  • Display interface MIPI-DSI
  • compliant to the SGET SMARC 2.1 standard
  • commercial (0°C...+70°C) / industrial (-40°C...+85°C) temperature range



MRZV2LS-AAB

  • Renesas RZ/V2L R9A07G054L23GBG#BC0
  • 1GB DDR4 RAM
  • 4GB eMMC
  • 128MBit SPI-NOR
  • 2x KSZ9131 PHY
  • -25°...+85°C
