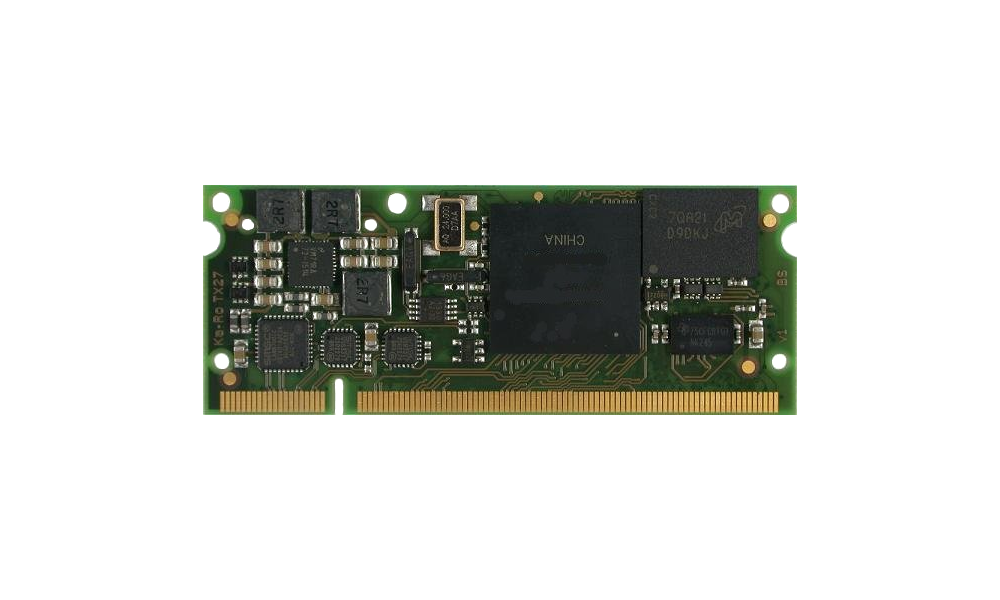

TX25 System on Module

i.MX25 on the TX-standard

TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. TX modules includes an ARM9 processor, SDRAM and Flash memory. The integrated LCD-controller enables direct connection of an LCD screen, and the standard PCMCIA interface permits simple extension and integration into a target system. The TX25 is specifically targeted at embedded applications where size, high cpu-performance and low power consumption are critical factors.

    • Processor i.MX257
      • 400MHz speed
      • ARM926EJ-S™ core
      • 16k I/D cache
      • 128k on chip SRAM
    • 64 MB SDRAM
    • 128MB NAND Flash
    • PATA/CE-ATA
    • 10/100 Ethernet
    • LCD Controller
    • Touchscreen
    • CSI
    • CAN
    • ESAI
    • Smartcard
    • HS USB 2.0 OTG + PHY
    • HS USB 2.0 Host + PHY
    • 12-bit ADC
    • SD/SDIO/MMC
    • I2C * SSI/I2S * SPI
    • UART
    • Power supply Single 3.0V to 5.5V
    • Size 26mm SO-DIMM
    • Temperature range : -40°C..85°C
    • windows Embedded CE
    • Linux 2.6
    • RedBoot Bootloader

    TX25-4021

    • i.MX257, 400 MHz
    • 64MB SDRAM
    • 128MB NAND Flash
    • -40°C..85°C
