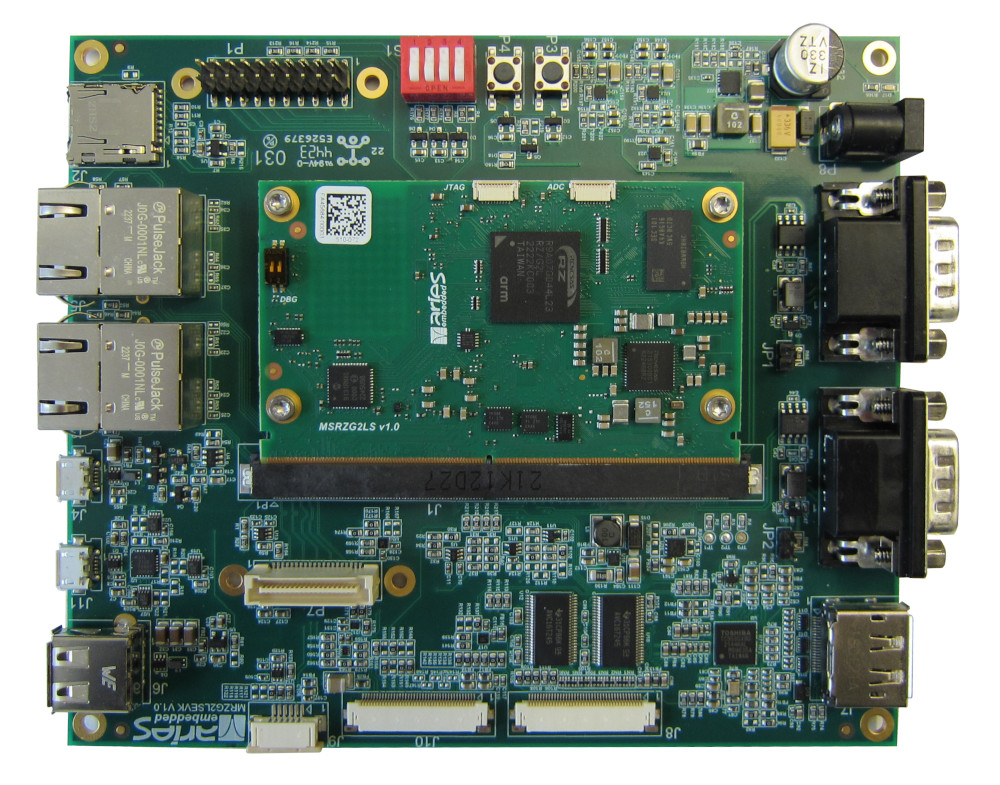

MRZG2LSEVK - Evaluation Kit for RZ/G2L

Your Easy Start with the MRZG2LS SMARC SoM

The MRZG2LSEVK is the ideal platform for a quick and smooth startup with the new architecture. Due to its functionality it supports developers for a quick startup, helps developing software and can also be used as a platform for rapid prototyping.

The baseboard supports both the MRZG2LS and MRZV2LS System-on-Modules which are compliant to the SMARC 2.1 specification.

    • MRZG2LS or MRZV2LS System on Module
    • 2x Ethernet on RJ45
    • 2x CAN on DSub9
    • MIPI-DSI via converter on HDMI connector
    • MIPI-CSI on connector
    • USB2.0 OTG on USB micro AB
    • USB2.0 Host on USB A
    • console via converter on USB micro AB
    • UART, I2C, SPI on pin header
    • SD-card on µSD-card slot


    • MRZG2LS-AAB SoM featuring
      • Renesas RZ/G2L R9A07G044L23GBG#BC0
      • 1GB DDR4 RAM
      • 4GB eMMC
      • 128MBit SPI-NOR
      • 2x KSZ9131 PHY
      • -25°...+85°C
    • MRZG2LSEVK baseboard
    • power supply
