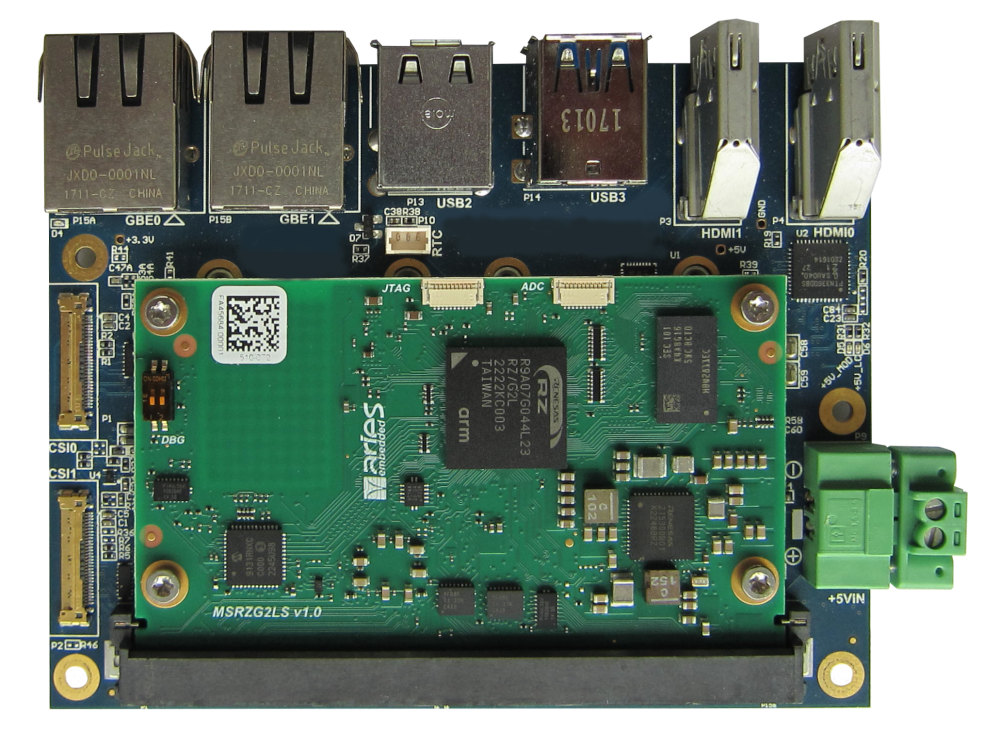

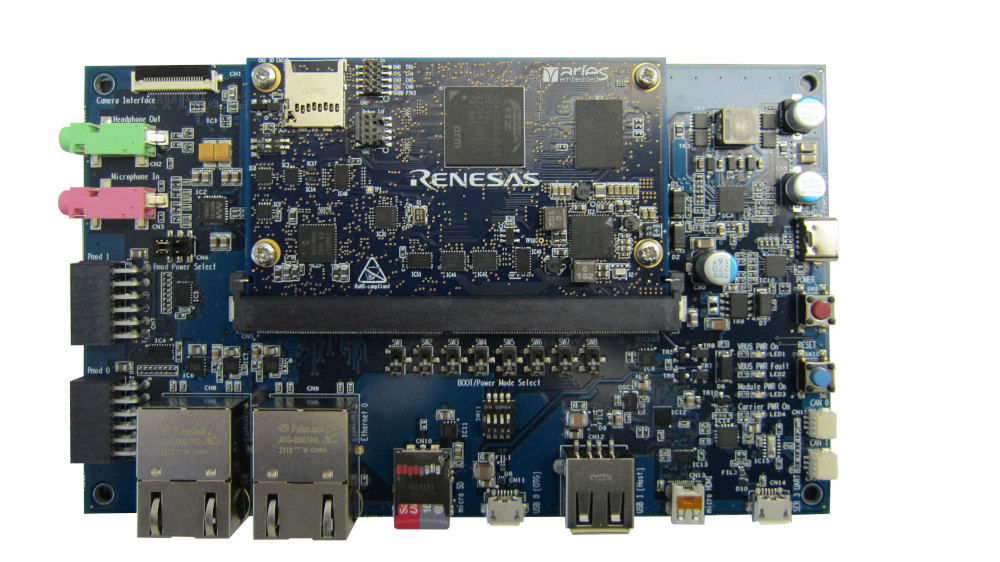

MRZV2LSEVK - Evaluation Kit for RZ/V2L

Your Easy Start into Edge AI-applications

The MRZV2LSEVK is the ideal platform for a quick and smooth startup with the new architecture. Due to its funtionality it supports developers for a quick startup, helps developing software and can also be used as a platform for rapid prototyping.

The baseboard supports both the MRZG2LS and MRZV2LS System-on-Modules which are compliant to the SMARC 2.1 specification.

The DRP-AI’s excellent power efficiency eliminates the need for heat dissipation measures such as heat sinks or cooling fans. AI can be implemented cost efficiently not only in consumer electronics and industrial equipment but also in a wide range of applications such as point-of-sale (POS) terminals for retail. Also, the DRP-AI provides both real-time AI inference and image processing functions with the capabilities essential for camera support such as color correction and noise reduction. This enables customers to implement AI-based vision applications without requiring an external image signal processor (ISP).

    • MRZG2LS or MRZV2LS System on Module
    • 2x Ethernet on RJ45
    • 2x CAN on DSub9
    • MIPI-DSI via converter on HDMI connector
    • MIPI-CSI on connector
    • USB2.0 OTG on USB micro AB
    • USB2.0 Host on USB A
    • console via converter on USB micro AB
    • UART, I2C, SPI on pin header
    • SD-card on µSD-card slot



    MRZV2LSEVK-BAA

    • MRZV2LS-AAB SoM featuring
      • Renesas RZ/V2L R9A07G044L23GBG#BC0
      • 1GB DDR4 RAM
      • 4GB eMMC
      • 128MBit SPI-NOR
      • 2x KSZ9131 PHY
      • -25°...+85°C
    • MRZV2LSEVK baseboard
    • power supply
