MSRZG3EEVK - RZ/G3E Evaluation Kit

Easy Start and Integration of the MSRZG3E SiP

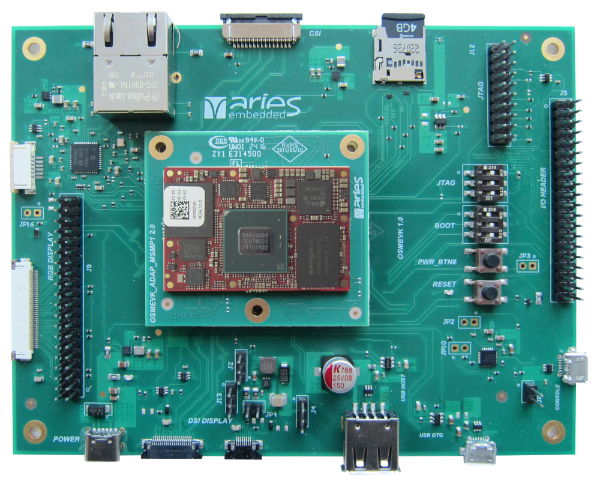

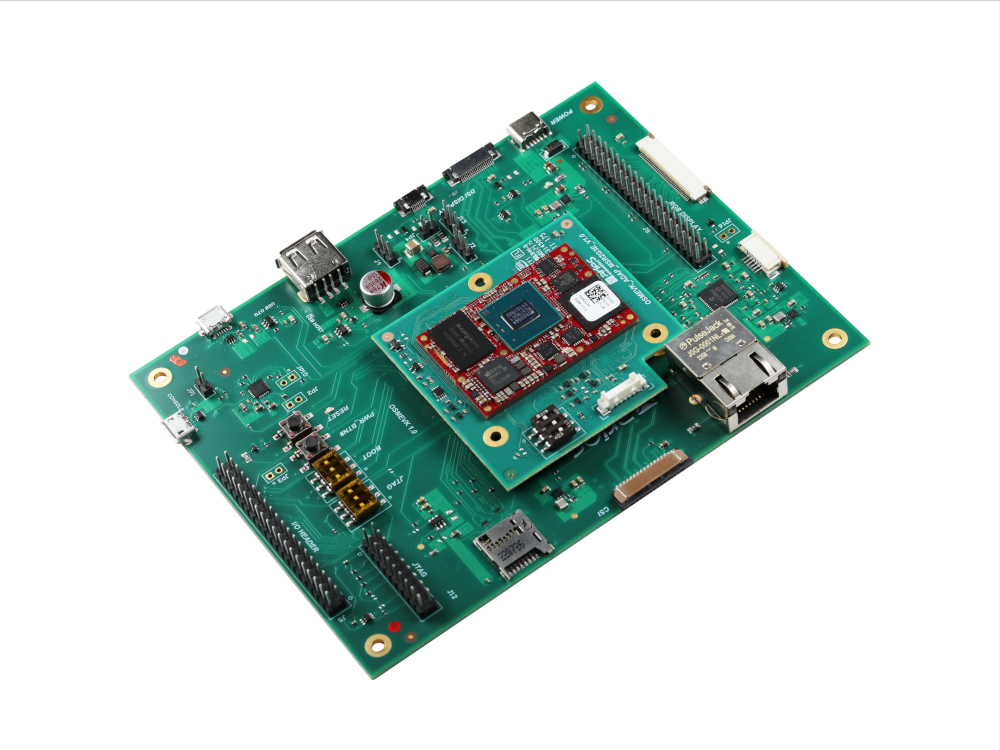

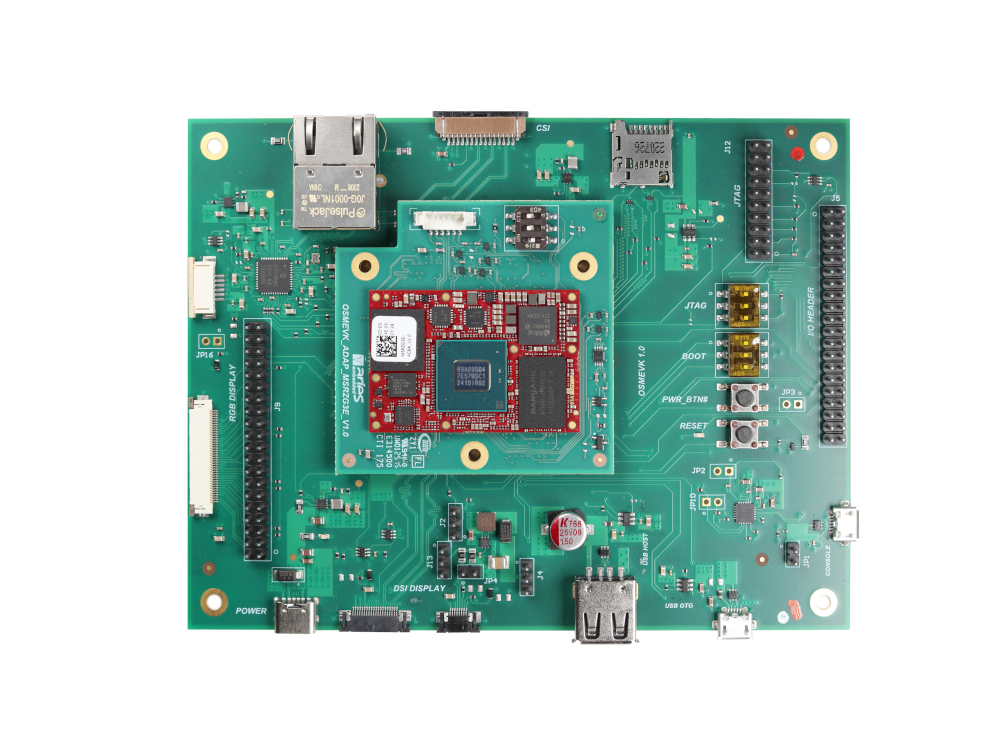

The MSRZG3EEVK supports a quick start-up of CPU projects and can easily be used as a fast-prototype platform.

The MSRZG3EEVK contains the Open Standard Module compliant System-In-Package based on Renesas' RZ/G3E Family architecture offering high-performance dual/quad CortexA55 cores in combination with a CortexM33 core. The MSRZG3E combines compact design and a wide range of services, bringing low power consumption, thermal efficiency and low-cost to embedded systems.

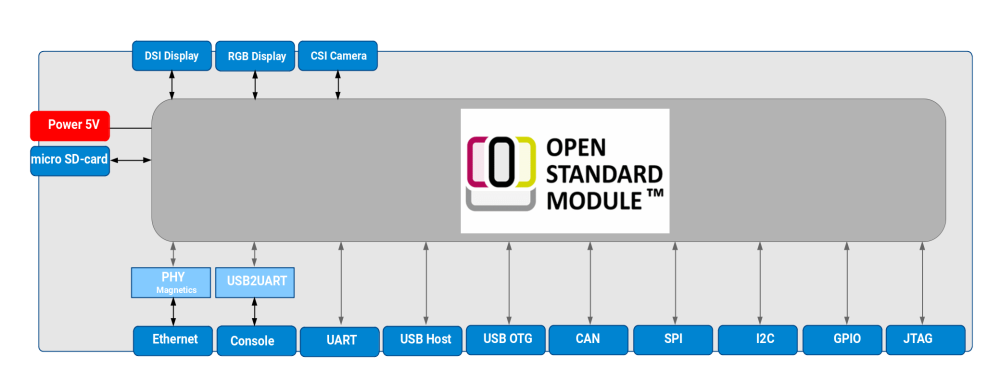

  • MSRZG3E System on Module
  • Ethernet on RJ45 connector
  • USB Host on USB A connector
  • USB OTG interface on USB microAB connector
  • display on FPC connector or pin header
  • console interface on USB microAB connector
  • UART on pin header
  • CAN on pin header
  • SPI on pin header
  • I2C on pin header
  • GPIO on pin header
  • JTAG on pin header

MSRZG3EEVK-4CBA

  • MSRZG3E-4CBA SiP
    • R9A09G047E57GBG CPU
      • Ethos-U55
      • 4x Cortex-A55, up to 1.8GHz
      • 1x Cortex-M33, up to 200MHz
    • 2GB LPDDR4 RAM
    • 8GB eMMC NAND flash
    • 128MBit SPI NOR
    • -25°C...+70°C
  • Ethernet on RJ45 connector
  • USB Host on USB A connector
  • USB OTG interface on USB microAB connector
  • display on FPC connector or pin header
  • console interface on USB microAB connector
  • UART on pin header
  • CAN on pin header
  • SPI on pin header
  • I2C on pin header
  • GPIO on pin header
  • JTAG on pin header

OSM Standard

OSM Standard

The idea of all Open Standard Modules (OSM) is to create a new, future proof and versatile standard for small-size, low-cost embedded computer modules, combining the following key characteristics:

  • different architectures available on the same footprint, scalability in function and performance
  • four different mechanical sizes and pin counts, downwards compatible
  • pre-defined soft- and hardware interfaces
  • specification and design guide publicly available
  • design support for baseboard integration, driver development and mass production by ARIES Embedded
  • directly assembly to the baseboard without connectors using LGA (Land Grid Array) technology
  • completely machine processible during soldering, assembly and testing

The Open Standard Module specification allows developing, producing and distributing embedded modules for the most popular MCU32, ARM and RSICV architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.
