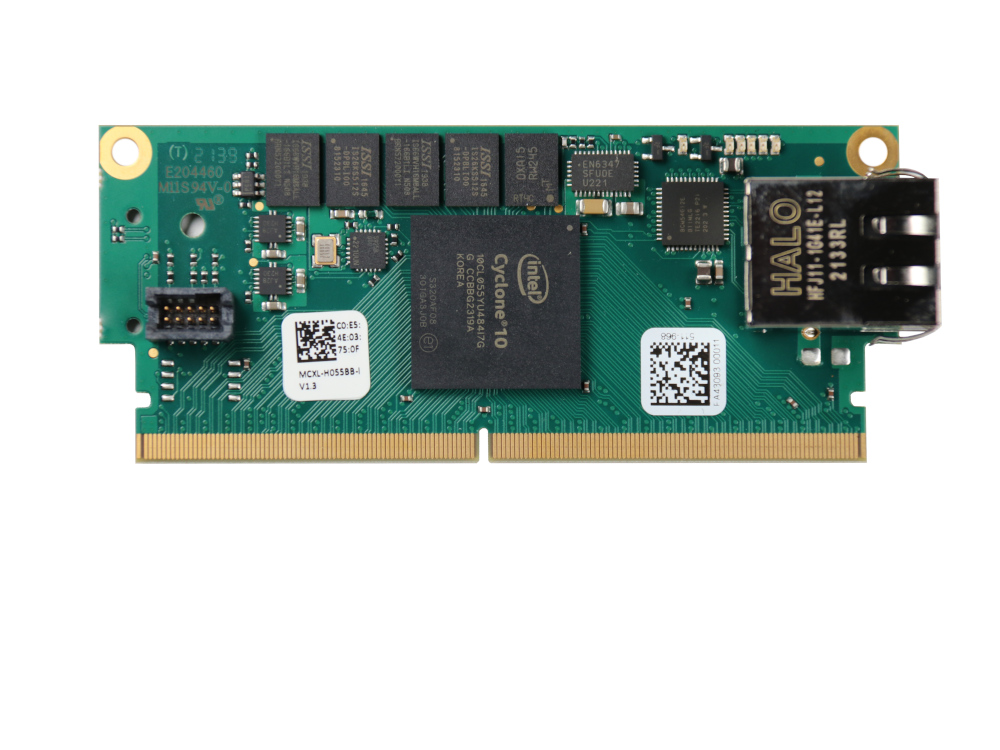

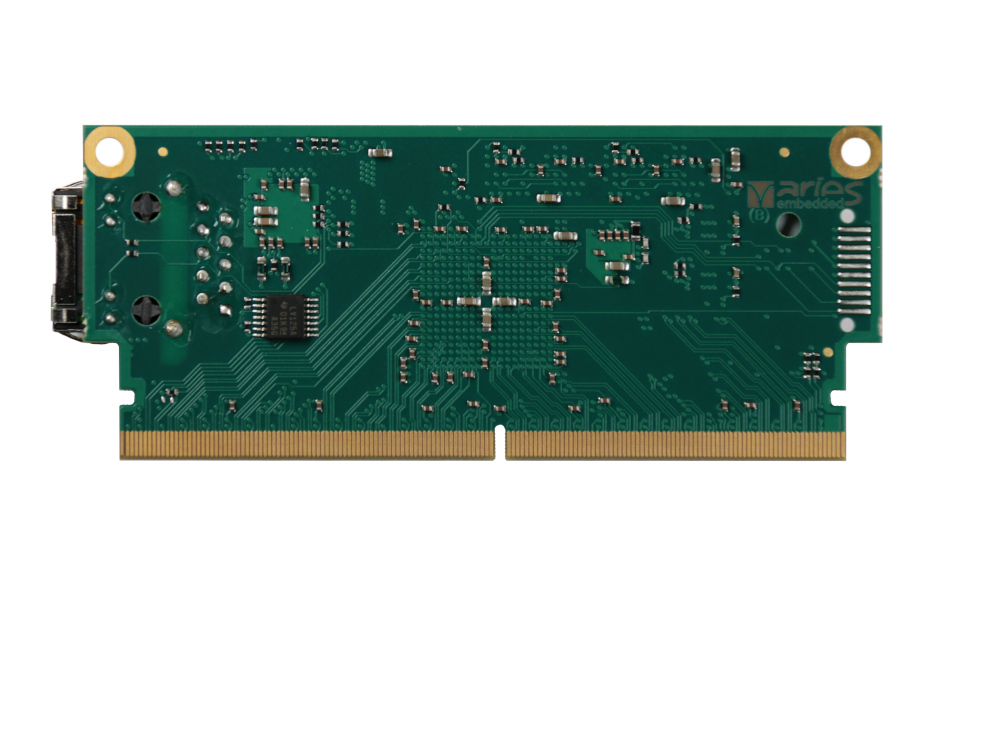

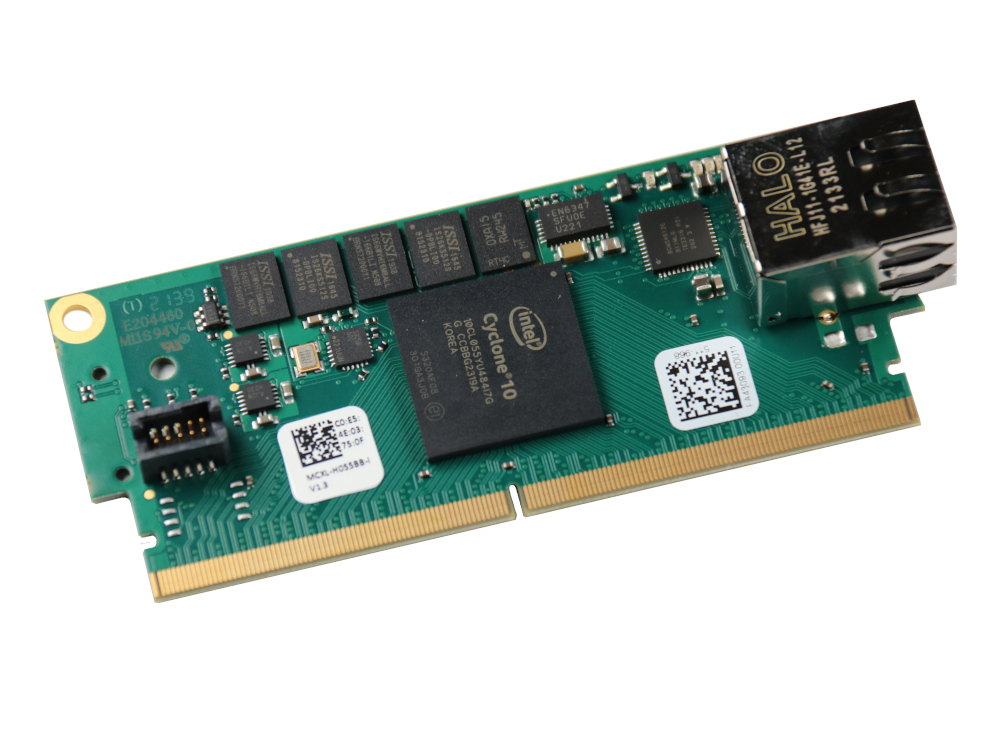

MCXL – Intel PSG Cyclone10LP SoM

First FPGA-SoM featuring Hyperbus Technology

The MCXL SoM leverages the functionality of the Cyclone 10 LP family on a compact embedded module. Intel Cyclone 10 LP FPGAs are ideal for cost-sensitive applications that require increasing lower static power as the need for scalable processing acceleration increases system interface requirements.

Typical end market examples include:

  • I/O expansion
  • Interfacing
  • Bridging
  • Sensor fusion
  • Industrial motor control



    • Cyclone 10LP
        • 10CL016YU484C7N
        • 10CL040YU484C7N
        • 10CL055YU484C7N
    • 256Mbit QSPI Flash
    • 512Mbit SDRAM, 32bit
    • or 2x128MBit HyperRAM and 2x512MBit HyperFlash
    • Clock generation
    • 4 User LEDs
    • Gigabit Ethernet Phy
    • 221 FPGA Pins:
        • 6 Pins IO-Bank 1 (3.3V)
        • 18 Pins IO-Bank 3 (3.3V)
        • 39 Pins IO-Bank 4
        • 39 Pins IO-Bank 5
        • 37 Pins IO-Bank 6
        • 41 Pins IO-Bank 7
        • 41 Pins IO-Bank 8
    • JTAG pin header
    • on board 2.5V, and 1.2V power supply
    • size : 37 x 90 mm

    MCXL-H055BBB-I

    • 10CL055YU484I7G Cyclone 10 FPGA, 55KLE
    • 2x128MBit HyperRAM and 2x512MBit HyperFlash
    • Configuration device 256 Mbit
    • Gigabit Ethernet Phy & connector
    • 221 FPGA Pins



    MCXL-S055BC-I

    • 10CL055YU484I7G Cyclone 10 FPGA, 55KLE
    • 512Mbit SDRAM
    • Configuration device 256 Mbit
    • Gigabit Ethernet Phy & connector
    • 221 FPGA Pins
