QSXP

29x29mm i.MX 8M Plus surface-mounted QFN Computer On Module

QSXP Series is a QFN Style Solder-Down Computer On Module. The module with a small square size of 29mm and a height of 2.6mm is single-sided assembled. Its QFN type lead style has a 1mm pitch with 108 pads. The ground pad additionally acts as thermal pad.

Since industrial applications lead to faster, higher integrated and lower power electronic circuits with a smaller formfactor, the PCB layout becomes more and more important. With a good layout many EMI problems can be minimized to meet the required specifications. It's not only the pinout which should lead to an easy wiring without the need for crossings. It has also to provide a proper solution for the signal path back to the module. If this return path, mostly the ground plane, cannot be connected near the signal pin, the return current has to take another way and this may result in a loop area.

  • Large ground pad on the bottom side makes a defined ground plane connection available for all signals.
  • The pinout leads to an easy wiring without crossing.
  • Ground will be connected near the signal pin to avoid loop areas.
  • High speed signals can be routed on the top layer at a defined impedance.
  • Ground pad holds the component at a defined height during soldering.
    • NXP i.MX 8M Plus Quad Cortex - A53 up to 1,6 GHz
    • Cortex-M7 up to 800 MHz
    • 2.3 TOPS Machine Learning Accelator
    • 2GB LPDDR4 RAM
    • 8GB eMMC ROM
    • Display support:
      • 1x MIPI DSI (4-lane)
      • GC520L 2D GPU
      • GC7000UL 3D GPU
      • 1080p60 Video de-/encode
    • Vision and Machine Learning:
      • 1x MIPI CSI (4-lane)
      • Dual Camera ISP (2x HD/ 1x 12MP) HDR, dewarp
    • Connectivity:

      • 1x Gb Ethernet, AVB, TSN
      • 1x USB 2.0
      • 1x USB 3.0
      • 1x eMMC/SD
      • 2x CAN-FD
      • 3x UART
      • 1x PCIe Gen 3 (1 lane)
      • 2x I²C
      • 2x SPI
      • PWM
      • SAI
      • Up to 60x 3.3V General Purpose I/O
    • -25 °C to 85 °C
    • 29 mm x 29 mm x 2.6 mm

    Software Support

    • Linux

    QSXP-ML81

    • Processor NXP i.MX 8M Plus 1,6GHz
    • 2 GB LPDDR4 RAM
    • 8 GB eMMC
    • Display-IF MIPI
    • Dimensions 29mm x 29mm x 2.6mm
    • -30°C...+85°C



    Benefit by using QS module family

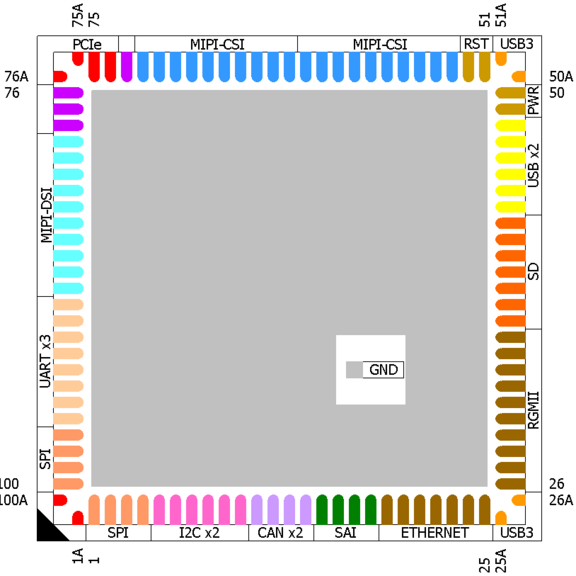

    https://www.karo-electronics.com/fileadmin/_processed_/a/0/csm_qsx-pinout_20156290d4.png



     With only 29mm x 29mm the QSXM module family has very compact dimensions. They include a complete embedded System on Module with processor, PMIC, RAM and flash memory.

    Because of the very dense packaging on the top side, there are no components on the bottom side of the module, cut-outs on the base board are not required. The pin compatible family concept provides all important interfaces needed for embedded designs, e.g. USB, Gigabit-Ethernet, display and many serial interfaces.

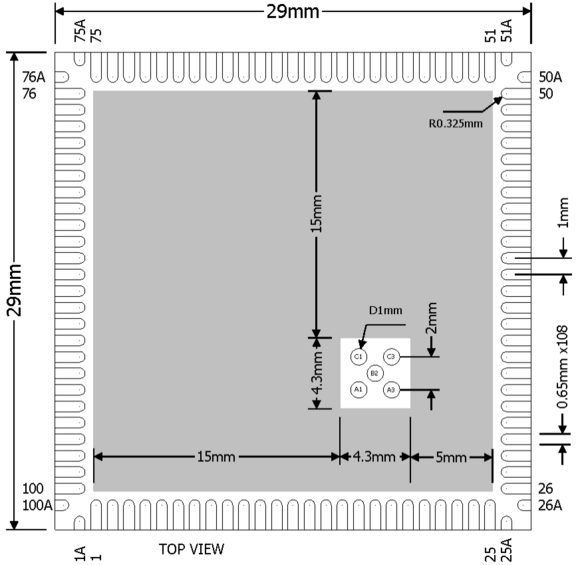

    https://www.karo-electronics.com/fileadmin/_processed_/1/3/csm_qsx-dims_0f341b6a5d.png



     All signal connections are located at the module edges, allowing easy optical inspection during production.
    The modules can be assembled by automatic pick & place machines without any mechanical assembly work necessary.
    The pin-optimized QS concept enables the use of a simple, cost-effective 2-layer base board.

    To support a quick evaluation and project start, a starter kit, with included schematics and bill of materials, is available.



    Flexibility, high performance and easy integration

     Target Markets

    Embedded computing power is very much in demand in a growing number of multimedia-centric devices. The Ka-Ro QS8M is ideally suited for target markets requiring high-end devices for powerful images and impressive video streaming creating connected devices in the following vertical markets.

    • Automation
    • Medical technology
    • Industrial control
    • Digital signage
    • Transportation

    Processor features

    The i.MX 8M Plus family focuses on machine learning and vision, advanced multimedia, and industrial IoT with high reliability. It is built to meet the needs of Smart Home, Building, City and Industry 4.0 applications.

    • Powerful quad or dual Arm Cortex-A53 processor with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS.
    • Dual Image Signal Processors and two camera inputs for an effective Vision System.
    • The multimedia capabilities include video encode (including h.265) and decode, 3D/2D graphic acceleration, and multiple audio and voice functionalities.
    • Real-time control with Cortex-M7. Robust control networks supported by dual CAN FD and dual Gigabit Ethernet with Time Sensitive Networking (TSN).
