M100PF - SoM featuring Microchip PolarFire FPGA

Low Power Mid-Range FPGA for Industrial Applications

The M100PF SoM family spans from 100K logic elements (LEs) to 300K LEs, features 12.7G transceivers and offers up to 50% lower power than competing mid-range FPGAs. The devices are ideal for a wide range of applications within wireline access networks and cellular infrastructure, defense and commercial aviation markets, as well as industrial automation and IoT markets.

PolarFire FPGAs offer various device features such as design security, low power devices and data security. All PolarFire FPGAs are integrated with multi-protocol industry-leading low-power transceivers.

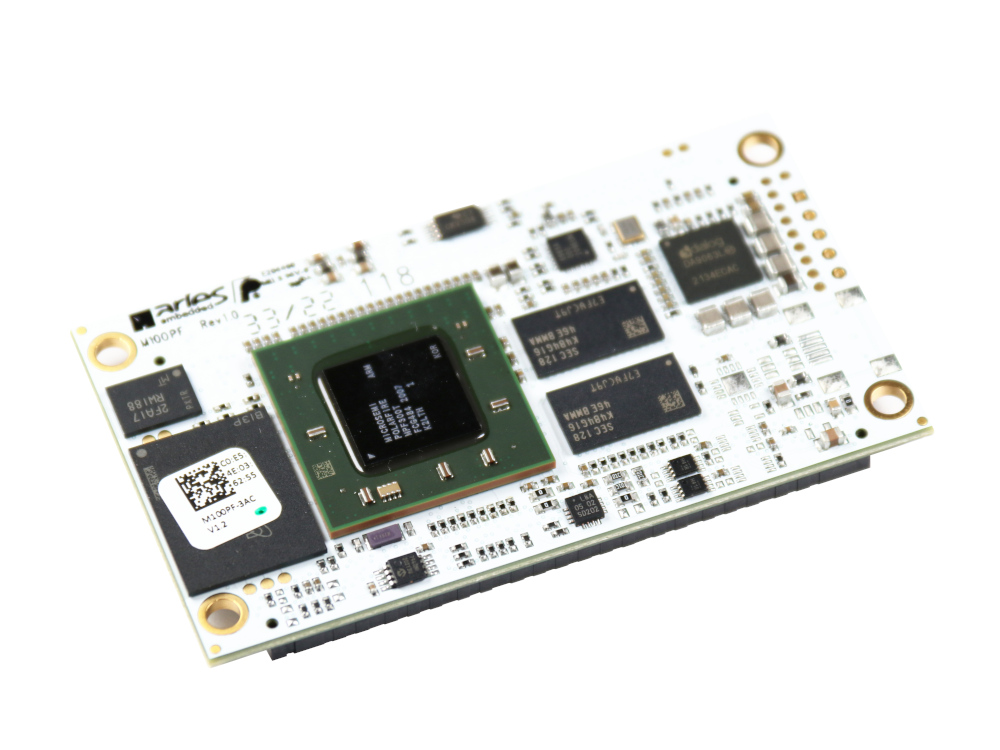

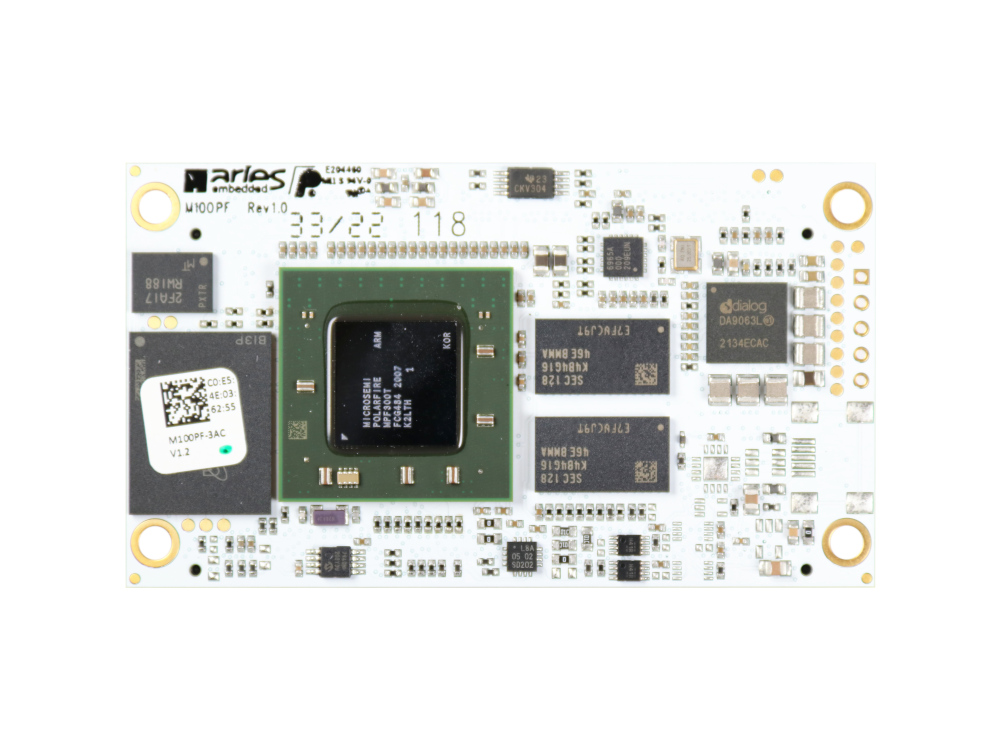

The M100PF combines most FPGA features on a 74mmx42mm footprint, the board-to-board interconnect is implemented by using two high-quality connectors which expose 360pins. The SoM is available in both the commercial temperature range 0°C...+70°C as well as in the industrial temperature range -40°C....+85°C.

The schematics of the M100PF SoM are available upon request.

    • PolarFire FPGA
      • MPF100T
        109KLE, 336 Math Blocks (18x18MACC)
      • MPF200T
        192KLE, 588 Math Blocks (18x18MACC)
      • MPF300T
        300KLE, 924 Math Blocks (18x18MACC)
    • 512 MiB / 1 GiB / 2 GiB DDR3 RAM
    • 128 MiB configuration device
    • 4 GiB eMMC memory
    • 8 SERDES Lanes, 250Mbps to 12.5Gbps
    • 2 PCIe Gen2 End Points/Root Ports
    • rich user I/O
    • Clock distribution
    • single 3,3V supply
    • size 74mmx42mm

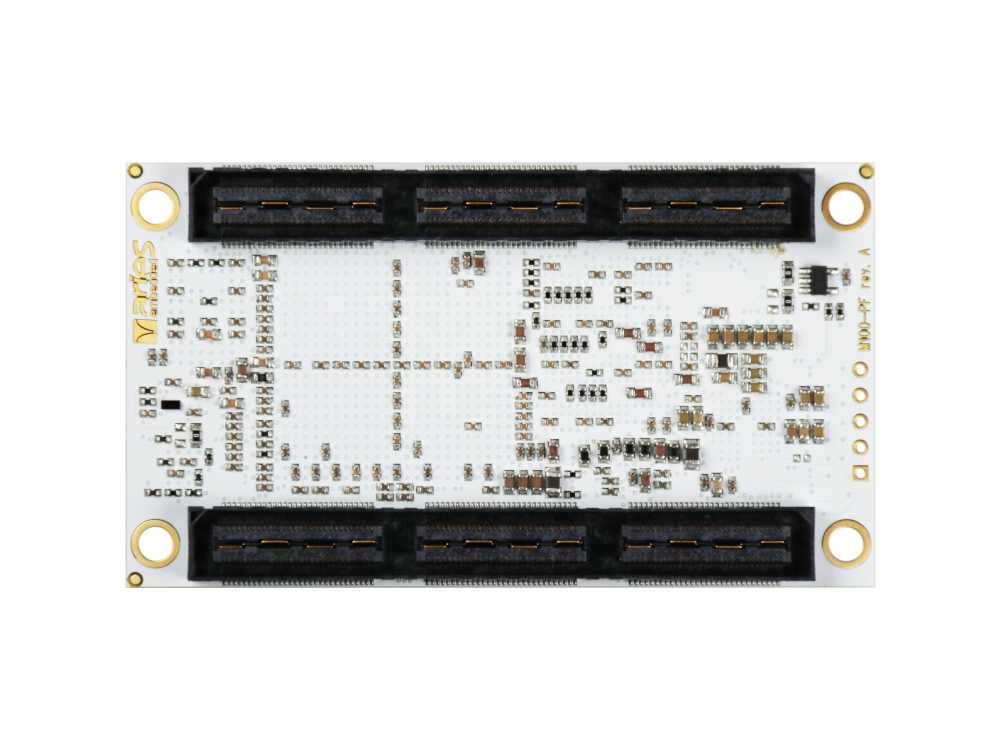

    • 2 x Samtec QSH-090-01-F-D-A board-to-board interconnect

    M100PF-1AC

    • MPF100T PolarFire FPGA
    • 1GB DDR3 SDRAM
    • 4GByte eMMC
    • size 74mm x 42mm
    • 2 x Samtec QSH-090-01-F-D-A board-to-board interconnect
    • 0°C...+70°C



    M100PF-2AC

    • MPF200T PolarFire FPGA
    • 1GB DDR3 SDRAM
    • 4GByte eMMC
    • size 74mm x 42mm
    • 2 x Samtec QSH-090-01-F-D-A board-to-board interconnect
    • 0°C...+70°C



    M100PF-3AC

    • MPF300T PolarFire FPGA
    • 1GB DDR3 SDRAM
    • 4GByte eMMC
    • size 74mm x 42mm
    • 2 x Samtec QSH-090-01-F-D-A board-to-board interconnect
    • 0°C...+70°C



    Longevity

    ARIES Embedded supports the best possible product longevity for the offered embedded solutions. We are committed to longevity support to extend product life and reduce re-design and re-validation. To realize this commitment, ARIES Embedded maintains a close cooperation with its suppliers.

    For the M100PF SoM and its derivatives ARIES Embedded confirms the availability until at least the year

    2032



    RISC-V Softcores

    M100PF is supported by  a comprehensive suite of software tool chains and IP cores for your FPGA designs. The Libero SoC and SoftConsole development environments together provide all the required tools to port RISC-V Soft CPUs on Microsemi's FPGA portfolio and develop, test and debug embedded firmware.

    Your RISC-V FPGA projects starts in a few minutes

    M100PF- versatile usability at its best

    M100PF is of course one of the most flexible System on Module in the embedded market. All PolarFire FPGAs are integrated with multi-protocol industry-leading low-power transceivers

    High Flexibility

    Maximum flexibility for using the SoM  with 'exotic' interface requirements. Combining standard IP cores like i.e. display-controller, Ethernet, CAN, serial, I²C, SPI, etc, unique SoM configurations can be used. Benefit from the variety of freely available IP-cores, or, create your own.

    Robust and Reliable

    High-quality connector suitable for high frequency signals and applications in harsh environments. Use a well designed System on Module with sufficient ressources in terms of performance, interfaces and memory



    Low Power Mid-Range FPGA for Industrial Applications
