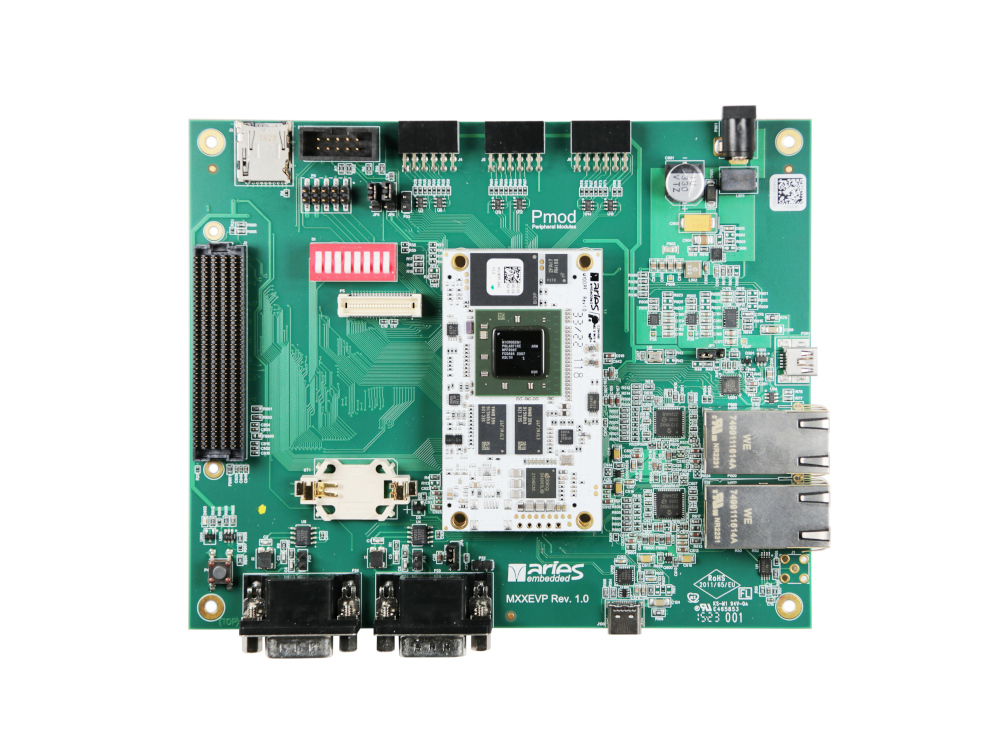

M100PFEVP – PolarFire FPGA Evaluation Platform

Reference Platform for the M100PF SoM

The M100PFEVP supports a quick start-up of FPGA projects and can easily be used as a fast-prototype platform.

M100PF offers the full flexibility of the PolarFire FPGA family. PolarFire cost-optimized FPGAs deliver the lowest power at mid-range densities with 12.7 Gbps SerDes transceivers as well as best-in-class security and reliability. They offer unprecedented capabilities and value with 10G transceivers, advanced I/Os, security and DSP capabilities while maintaining all the advantages traditionally associated with non-volatile FPGAs such as static power, security and single event upset (SEU) immunity. The devices are ideal for a wide range of applications within wireline access networks and cellular infrastructure, defense and commercial aviation markets, as well as industrial automation and IoT Markets.

    • 2x Gigabit Ethernet
    • USB
    • 2x UART
    • 2x CAN
    • TFT connector
    • HSMC extension connector
    • 3x PMOD extension connectors
    • microSD-card slot

    M100PFEVP-1AC

    • MPF100T-FCG484I
    • 1GB DDR3 SDRAM
    • 4GByte eMMC



    M100PFEVP-2AC

    • MPF200T-FCG484I
    • 1GB DDR3 SDRAM
    • 4GByte eMMC



    M100PFEVP-3AC

    • MPF300T-FCG484I
    • 1GB DDR3 SDRAM
    • 4GByte eMMC



    PolarFire SoC-FPGAs have now been adopted by dozens of customers in key communications, defense and industrial infrastructure market segments. These systems have a substantially lower cost of ownership, as the PolarFire family enables significantly lower power consumption and an ability to operate in harsher thermal environments.
