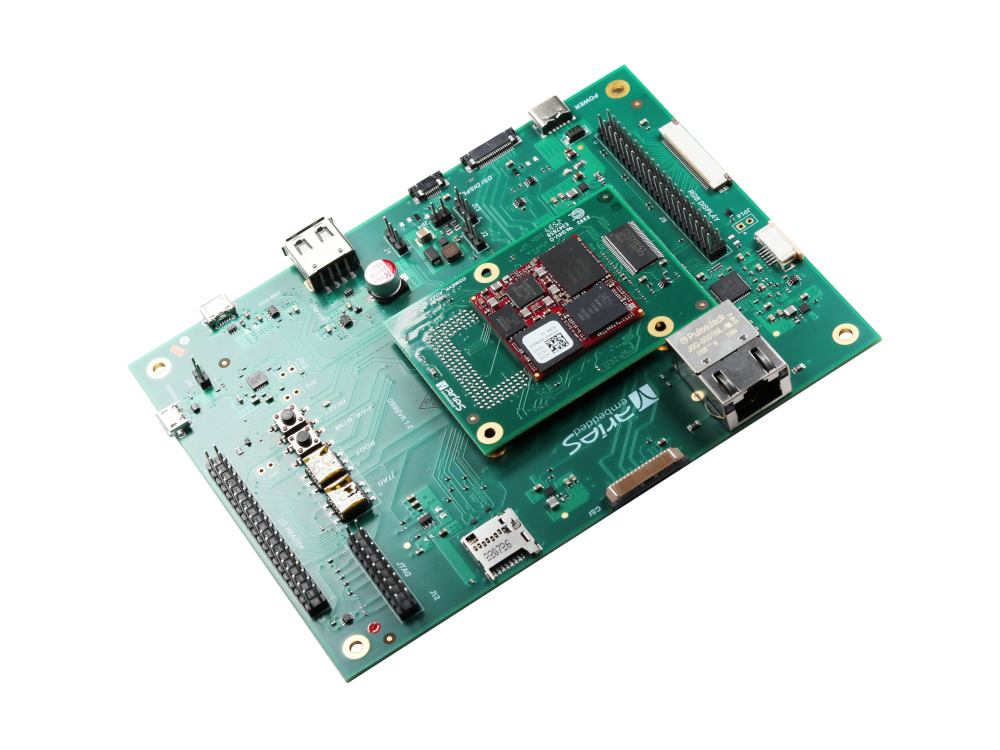

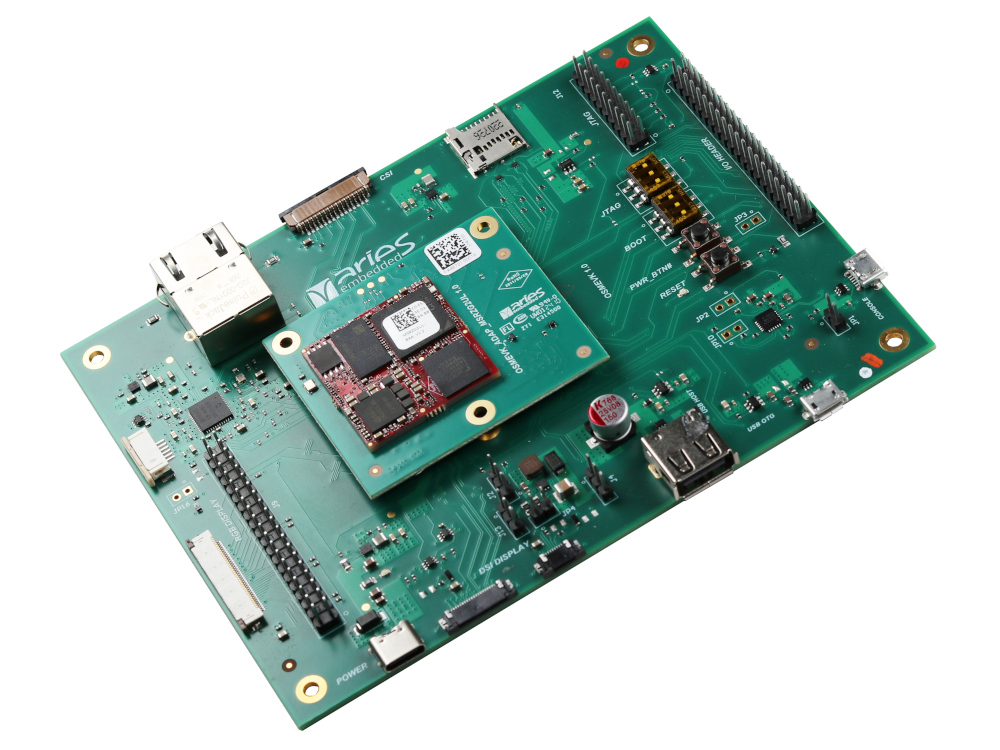

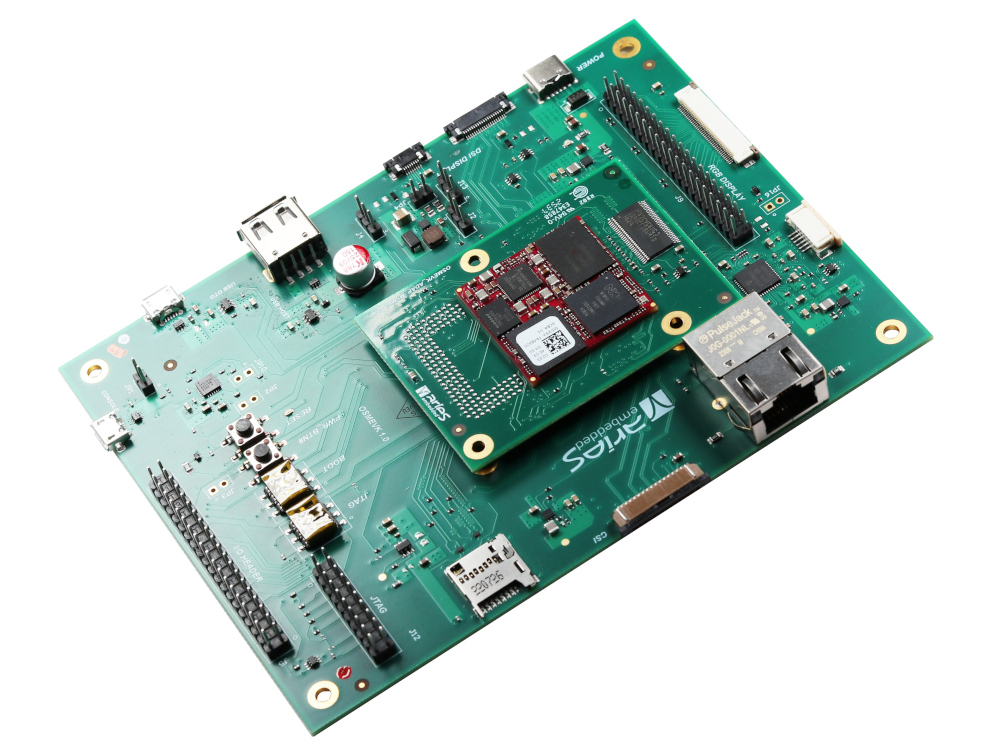

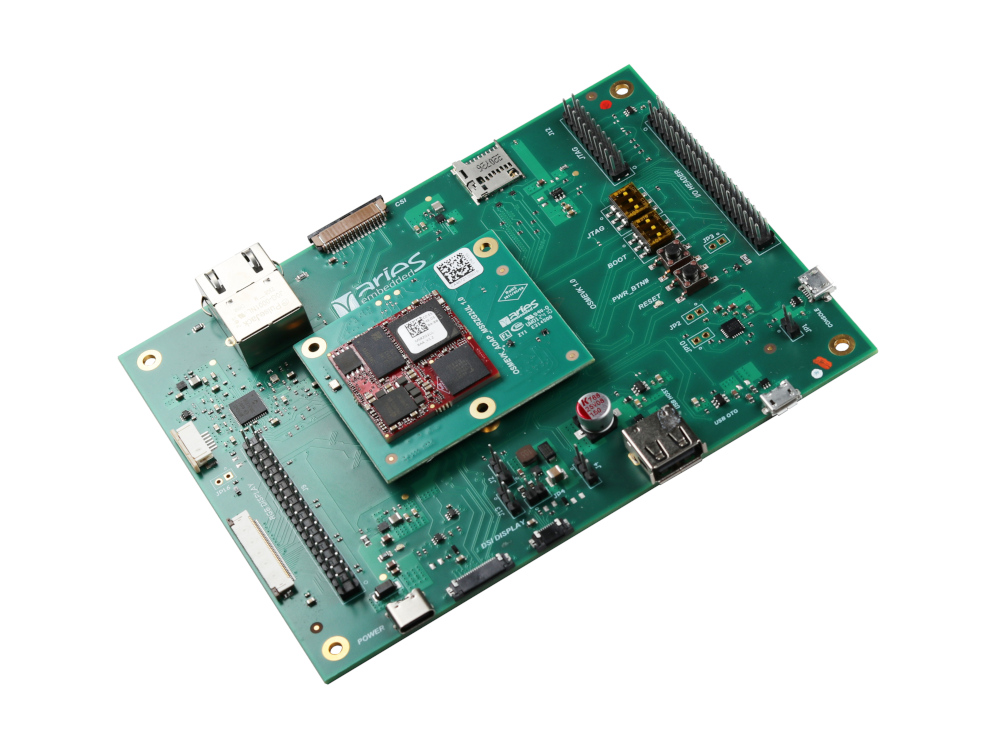

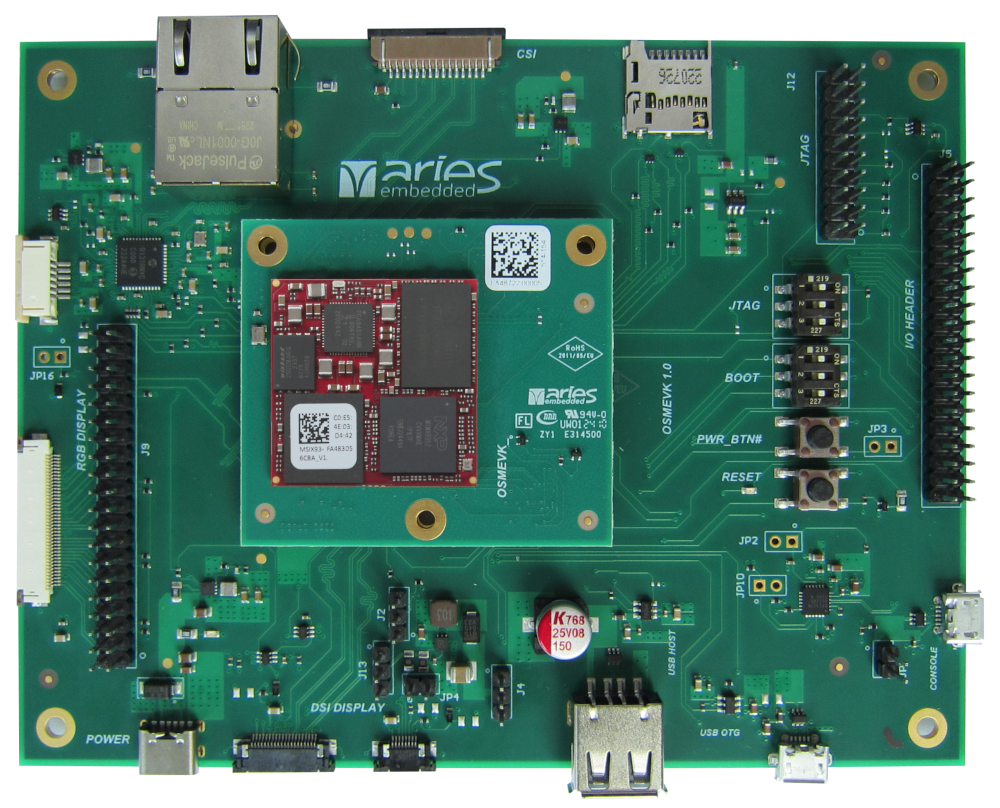

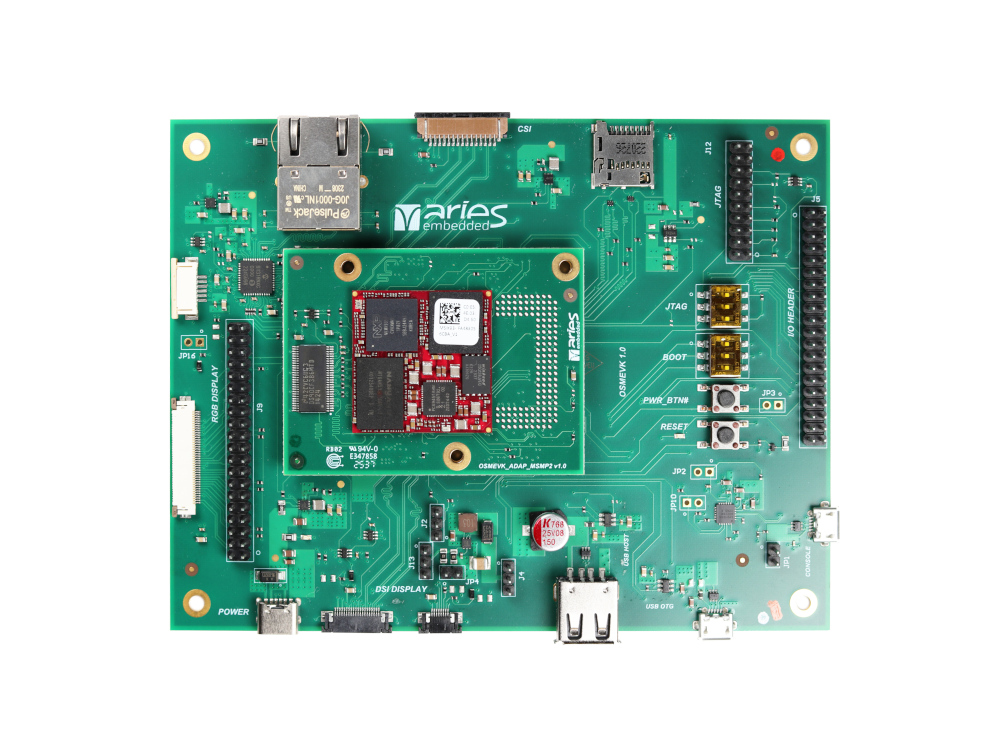

MSIX93EVK - Evaluate the i.MX93 OSM SoM

Power Efficient and AI capable

The MSIX93EVK supports your smooth start with the new MSIX93 System on Module. Combining simplicity and versatility it is the ideal tool for developing software or implementing functional prototypes.

The baseboard supports SoMs which are compatible to the OSM specification as well as SoMs compliant to proprietary implementations. The evaluation system consists out of the

  • SoM, hosting all memory and logic interfaces
  • the adapter board, converting interfaces and/or voltage levels to the right value / direction so that the SoM functionality can be used on the baseboard
  • the baseboard which hosts all components to provide the physical interface implementation and connectors

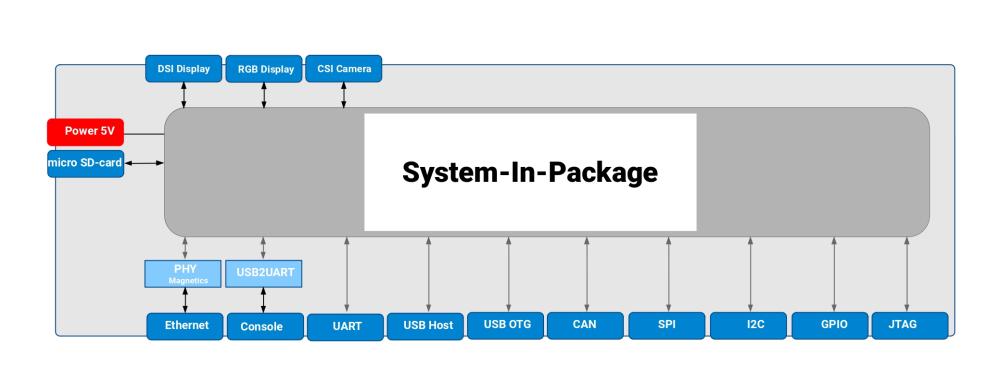

  • MSIX93 System on Module
  • Ethernet on RJ45 connector
  • display on FPC connector or pin header
  • USB Host on USB A connector
  • USB OTG interface on USB microAB connector
  • console interface on USB microAB connector
  • UART on pin header
  • CAN on pin header
  • SPI on pin header
  • I2C on pin header
  • GPIO on pin header
  • JTAG on pin header

MSIX93EVK-6CBA
featuring

  • MSIX93-6CBA SoM
    • NXP i.X93 CPU MIMX9352CVVXMAB
    • 1GB LPDDR4 RAM
    • 8GB eMMC NAND Flash
    • 128MBit SPI-NOR
    • 0°...+70°C
