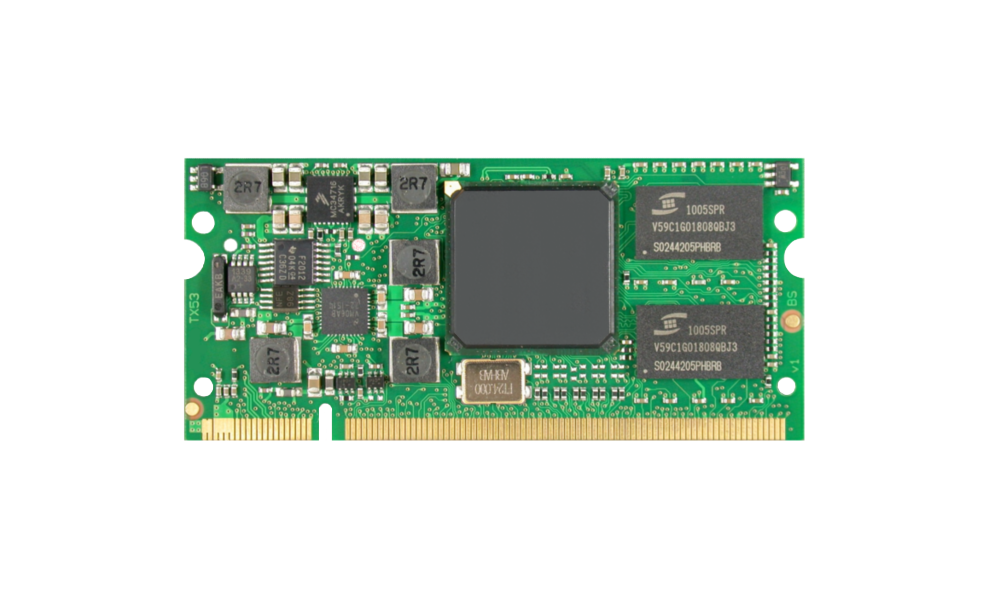

TX53 System on Module

i.MX53 on the TX-Standard

The TX53 is built on the powerful Cortex A8 CPU i.MX53 of Freescale Semiconductor.

TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. TX modules includes an ARM processor, SDRAM and Flash memory. The integrated LCD-controller enables direct connection of an LCD screen, many different interfaces permit simple extension and integration into a target system. The TX53 is specifically targeted at embedded applications where size, high cpu-performance and cost are critical factors.

    • Freescale i.MX537, 800 MHz, Cortex-A8
      Freescale i.MX535, 1 GHz, Cortex-A8
    • 512MB/1GB DDR3/DDR2 SDRAM, up to 2GB on request
    • 128MB NAND Flash
    • RTC DS1339 Real Time Clock
    • 10/100Mbps Ethernet
    • IEEE1588 support for i.M537 only
    • Two High Speed USB 2.0 ports
    • LCD controller up to 1600 x 1200, 24bpp
    • Dual LVDS display port (option on request)
    • OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
    • Multi-format HD 1080p video decoder and 720p video encoder hardware engine
    • Two Camera Interfaces
    • NEON SIMD media accelerator
    • Unified 256KB L2 cache
    • Vector Floating Point Unit
    • Several interfaces: 3x UART, 2x SDIO, 2x SSI/AC97/I2S, I2C, CSPI, Keypad, Ext. Memory I/F
    • Two CAN interfaces for i.MX537 only
    • 3.3V I/O
    • Power supply Single 3.1V to 5.5V
    • Size 31 mm SO-DIMM
    • Temperature Range  0°C..70°C       i.MX535 case temp
                                 -40°C..85°C     i.MX537 case temp

    TX53-8130

    • i.MX537, 800 MHz
    • 512MB DDR3 SDRAM
    • 128MB NAND Flash
    • LVDS Display Interface
    • -40°C..85°C

    TX53-8030

    • i.MX537, 800 MHz
    • 512MB DDR3 SDRAM
    • 128MB NAND Flash
    • -40°C..85°C
