Miami MPSoC Plus - Xilinx Zynq Ultrascale+ SoM

Excellent platform for high bandwidth data processing applications

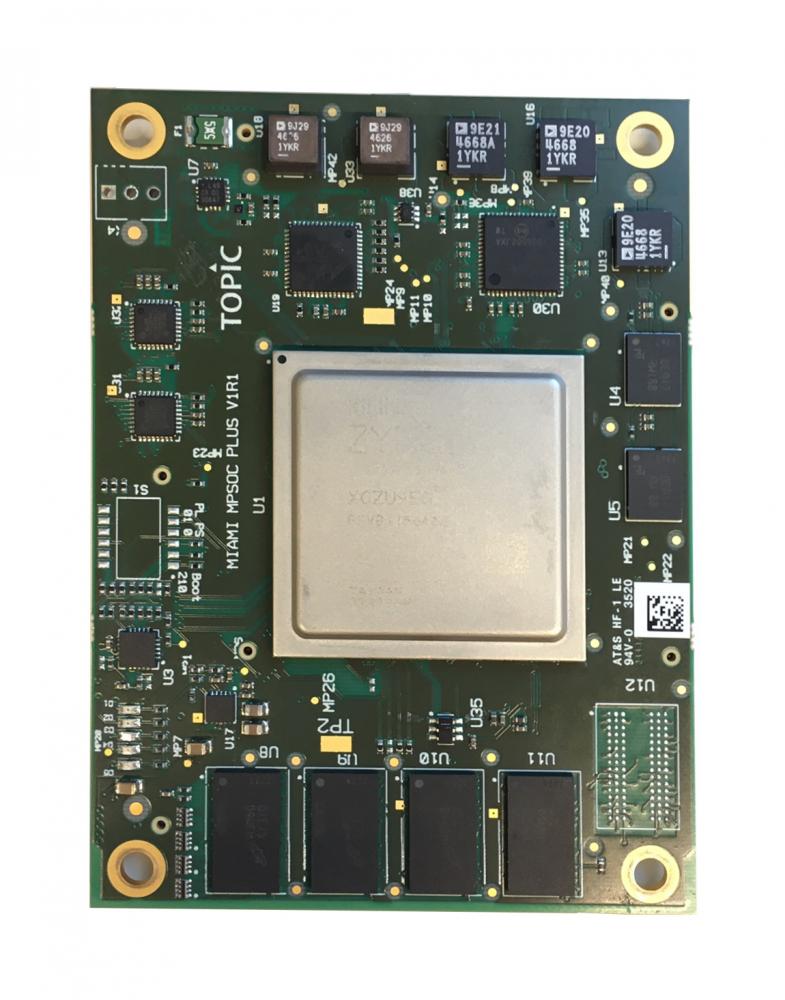

The Miami MPSoC Plus System on Module (SoM) is an embedded computer board, integrating all key functionalities to deliver a complete computing system, running e.g. Linux or FreeRTOS. The modules are based on Xilinx System on Chip 16nm technology, using Zynq Ultrascale+ ZU6/ZU9/ZU15.The module combines a high performance and high-density programmable logic with dedicated hardener IP blocks, such as DSP cores, memory controllers and PCIe endpoints.

It integrates all system components required to bring the system alive including memory, power supply, debugging facilities and various connectivity options. It is a suitable platform for phased array ultrasound and radar applications, which require effective processing power, high speed communication and software defined radio. The SoM has the ability to customize system interfaces and perform real-time signal acquisition. It comes with a aTOPIC supported Linux distribution, including a reference FPGA design.

The Miami combines most FPGA features on 95mmx68,5mm footprint, the board-to-board interconnect is implemented by using two high-quality connectors which expose 240pins and one high-quility connectior which expose 180pins. The SoM is available in both the commercial temperature range 0°C...+70°C as well as in the industrial temperature range -40°C....+85°C.

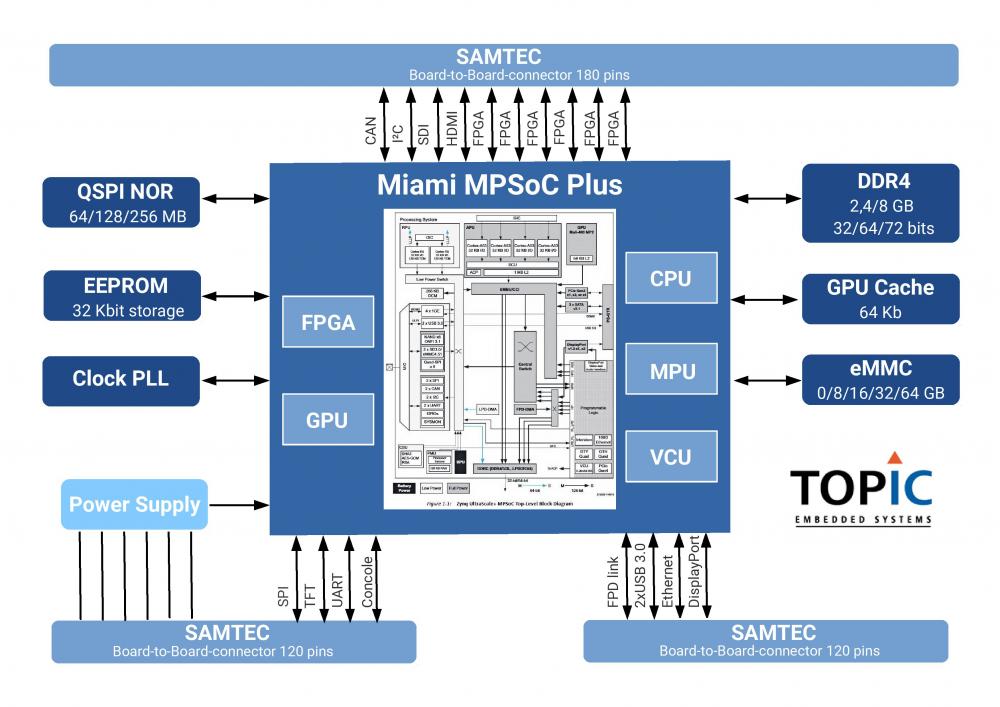

    • Miami MPSoC UltraSCALE+
      • XCZU6-EG-1FFVB1156E
        469KLE, 1973  DSP Blöcke, 25.1Mb RAM, 429K FlipFlops, 215K LUTs CLB
        2x6Gbit/s PS tranceivers, 16x12.5Gbit/s GTH tranceivers
      • XCZU9-EG-1FFBVB1156E
        600KLE, 2520  DSP Blöcke, 32.1Mb RAM, 548K FlipFlops, 274K LUTs CLB
        2x6Gbit/s PS tranceivers, 16x12.5Gbit/s GTH tranceivers
      • XCZU15-EG-1FFVB1156E
        747KLE, 3528  DSP Blöcke, 26.2Mb RAM, 682K FlipFlops, 341K LUTs CLB
        2x6Gbit/s PS tranceivers, 16x12.5Gbit/s GTH tranceivers
        31.5Mb UltraRAM
    • Processor System
      • ARM Cortex-A53 MPCore Quad-core CPU Architecture
      • up to 1.2GHz CPU Perfomance
      • ARM Cortex-R5 (dual core) Real Time Processor
      • ARM Mali -400 MP2 Graphics Processor
    • 2/4/8 GByte DDR4 with/without ECC 32/64/72bits
    • 0/8/16/32/64 GB pseudo-SLC or MLC eMMC
    • 64/128/256 MB Quad SPI
    • 32 Kbit I2C EEPROM storage
    • Processor-Peripherals
      • UART
      • CAN
      • I2C
      • SPI
      • FPD link
      • SDI
      • TFT
      • HDMI
      • DisplayPort
      • 2xUSB 3.0 incl on-board ULPI media
      • Debug UART
      • Concole
      • PS JTAG
      • Ethernet
      • rich I/O
    • Clock distribution
    • single 9-16 Vdc supply
    • size 95mmx68,5mm
    • 2 x 120 pins + 1x180 pins Samtec mezzanine board-to-board interconnect
    Miami MPSoC Plus XCZU6-EG-1FFVB1156E - miap-zu6-1-7-4-2
    • ARMCortex-A53 (quad core)
    • 2/4/8 GB DDR4 with/without ECC 32/64/72bits
    • 0/8/16/32/64 GB pseudo-SLC or MLC eMMC
    • 64/128/256 MB Quad SPI
    • 32 Kbit I2C EEPROM
    • size 95mmx68,5mm
    • 2 x 120 pins + 1x180 pins Samtec board-to-board interconnect
    • -40°C...+85°C



    Miami MPSoC Plus XCZU9-EG-1FFVB1156E - miap-zu9-1-7-4-2
    •
      • available on request
    • ARMCortex-A53 (Dual-Core)
    • 2/4/8 GB DDR4 with/without ECC 32/64/72bits
    • 0/8/16/32/64 GB pseudo-SLC or MLC eMMC
    • 64/128/256 MB Quad SPI
    • 32 Kbit I2C EEPROM
    • size 95mmx68,5mm
    • 2 x 120 pins + 1x180 pins Samtec board-to-board interconnect
    • -40°C...+85°C

    Miami MPSoC PLus XCZU15-EG-1FFVB1156E - miap-zu15-1-7-4-2
    • ARMCortex-A53 (Dual-Core)
    • 2/4/8 GB DDR4 with/without ECC 32/64/72bits
    • 0/8/16/32/64 GB pseudo-SLC or MLC eMMC
    • 64/128/256 MB Quad SPI
    • 32 Kbit I2C EEPROM
    • size 95mmx68,5mm
    • 2 x 120 pins + 1x180 pins Samtec board-to-board interconnect
    • -40°C...+85°C

    High Flexibility

    Maximum flexibility for using the SoM  with 'exotic' interface requirements. Combining standard IP cores like i.e. SPI, USB, UART, Ethernet, CAN, serial, I²C, SPI, etc, unique SoM configurations can be used. Benefit from the variety of freely available IP-cores, or, create your own.

    Miami MPSoC Plus - Xilinx Zynq Ultrascale+ supports DYPLO - dynamic process loader.

    Balance

    It is a highly integrated and compact off-the-shelf solution for today’s high-performance embedded systems. Miami provides a best in class platform for balancing performance, low cost and power, making a perfect solution for applications that require high processing power, high speed interfaces, a high level of reliability, the ability to optimize system interfaces, and perform real-time analytics and control.

    Target Markets

    Typical application areas are any existing applications that use an applications processor together with an FPGA, including but not limited to (secure) communications, aerospace & defense, audio / video applications, medical and industrial imaging.
