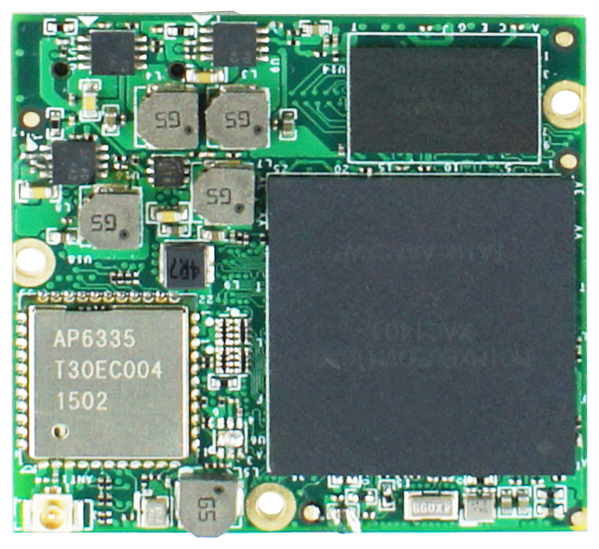

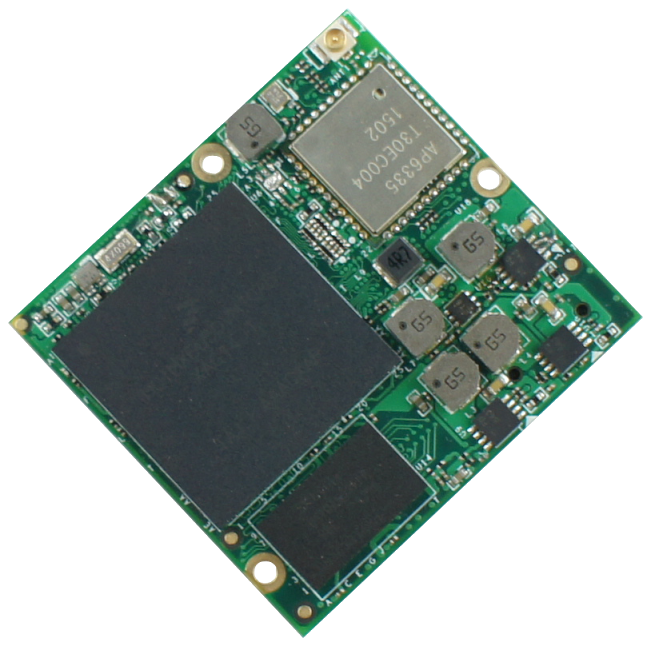

PICO-IMX6 System on Module

PICO SoM based on i.MX6

The PICO-IMX6 reference design based on the Freescale i.MX6 multimedia processor is a purpose-built, small footprint hardware platform equipped with a wide array of high-speed connectivity engineered to support IoT endpoints, wearable applications, appliances, drones or industrial mobile terminals.

The affordable reference design is compatible with Intel Edison baseboards and adds a number of additional high-speed signals such as PCIe, RGMII LAN, USB as well as 24 bit TTL Display, LVDS, HDMI and MIPI CSI Camera and MIPI DSI Display options.

    • Freescale i.MX6 Ultralite
    • NXP i.MX6UL ARM Cortex-A7 core @ 528Mhz and NXP i.MX6 ULL ARM Cortex-A7 core @ 528 MHz and 900MHz
    • 256MB or 1GB DDR3
    • onboard eMMC (default 4GB)

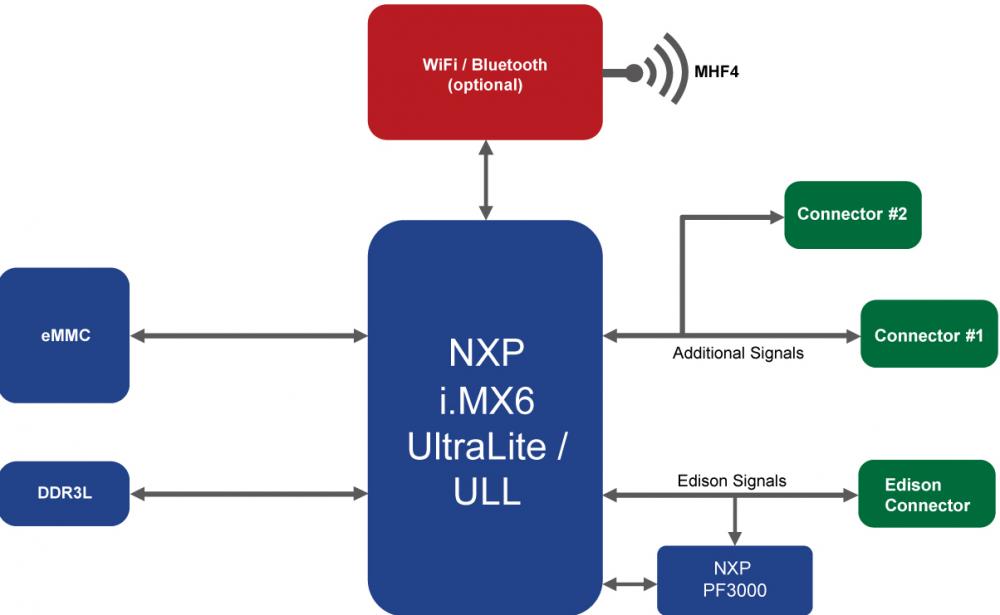

    • Signals routed to board-to-board connector
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
    • MHF4 connector (optional)
    • 1x Intel Edison compatible connector (Hirose 70-pin)
    • 2x Hirose 70-pin connectors
    • 9x GPIO
    • 4x PWM
    • 2x I²C
    • 1x I²S
    • 1x SPI
    • 2x UART
    • USB-OTG
    • SDIO (4-bit)
    • Single Channel LVDS
    • 24-bit TTL RGB
    • HDMI 1.4
    • MIPI CSI Camera
    • MIPI DSI Display
    • PCIe
    • RGMII (gigabit LAN)
    • SoC Integrated
      Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
    • I²S (1 channel)
    • On Carrier Board
    • 4.2-5.25V DC
    • Commercial : 0° to 60° C
    • Extended : -20° to 70° C
    • Industrial : -40° to 85° C (no WiFi possible)
    • 10 - 90%
    • 37 x 40 mm / 1⅜ x 1⅝ inch
    • 8 grams
    • Compliant with RoHS / REACH directives

    Software Support

    • Linux
    • Yocto
    • Ubuntu

    i.MX6UL Ultralite



    PICO-IMX6G2-05-R02-E04

    • PICO SOM
    • I.MX6 ULTRALITE 528MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6G2-05-R02-E04-9377

    • PICO SOM
    • I.MX6 ULTRALITE 528MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX6G2-05-R05-E04

    • PICO SOM
    • I.MX6 ULTRALITE 528MHZ
    • 512MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6G2-05-R05-E04-9377

    • PICO SOM
    • I.MX6 ULTRALITE 528MHZ
    • 512MB DDR3L RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5


    i.MX6ULL Ultralite



    PICO-IMX6Y2-05-R02-E04

    • PICO SOM
    • I.MX6ULL ULTRALITE 528MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6Y2-05-R02-E04-9377

    • PICO SOM
    • I.MX6ULL ULTRALITE 528MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX6Y2-05-R05-E04

    • PICO SOM
    • I.MX6ULL ULTRALITE 528MHZ
    • 512MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6Y2-09-R02-E04

    • PICO SOM
    • I.MX6ULL ULTRALITE 900MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6Y2-09-R02-E04-9377

    • PICO SOM
    • I.MX6ULL ULTRALITE 900MHZ
    • 256MB DDR3L RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    PICO-IMX6Y2-09-R05-E04

    • PICO SOM
    • I.MX6ULL ULTRALITE 900MHZ
    • 512MB DDR3L RAM
    • 4GB e.MMC

    PICO-IMX6Y2-09-R05-E04-9377

    • PICO SOM
    • I.MX6ULL ULTRALITE 900MHZ
    • 512MB DDR3L RAM
    • 4GB e.MMC
    • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
    • 1x Qualcomm Atheros QCA9377 Bluetooth 5

    The PICO-IMX6-EMMC combines outstanding detailed documentation and design files to integrate the module into your designs with support for Linux 3.x kernel sourcecode and has recipes for Yocto and Ubuntu available.
