PICO-IMX6UL System on Module
PICO SoM for the Internet of Things

The PICO-IMX6UL features the i.MX6 UltraLight (i.MX6UL) application processor by NXP. The i.MX6UL is a high performance, ultra-efficient processor family featuring an advanced implementation of a single ARM® Cortex®-A7 core, which operates at speeds up to 528 MHz. The i.MX 6UltraLite applications processor includes an integrated power management module that reduces the complexity of external power supply and simplifies power sequencing. On the PICO-IMX6UL the CPU provides a DDR3 memory interface as well as NAND flash or QSPI NOR flash memory and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, displays and camera sensors.
The SoM is compatible with Intel Edison baseboards and adds a number of additional high-speed signals.
Linux, Android, Ubuntu and Yocto source code.
Open carrier board specifications, design guides, and schematics.
Pre-loaded plug and play startkits.
12-year longevity guarantee.
PICO-IMX6ULL is part of the Pico SoM series, an ultra-compact form factor SoM optimized for mobile devices and IoT. The series has many processor options.
Features
- Freescale i.MX6ULL
- ARM Cortex-A7 single core @ 528MHz and 900MHz
- 256MB or 512MB DDR3L RAM
- Signals routed to board-to-board connector
- 1x Intel Edison compatible connector (Hirose 70-pin)
- 2x Hirose 70-pin connectors
- 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
- 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
- MHF4 connector (optional)
- I/O: RGB TTL, RMII, USB, USB OTG, I²S, CAN, UART, SPI, I²C, PWM, GPIO
-
SoC IntegratedImage re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
- Audio: I²S (1 channel)
- 4.2-5.25V DC
- Commercial : 0° to 60° C
- Extended : -20° to 70° C
- Industrial : -30° to 85° C (no WiFi possible)
- 37 x 40 mm / 1⅜ x 1⅝ inch
- 8 grams
- Compliant with RoHS / REACH directives
Software Support
- Linux
- Yocto
- Ubuntu

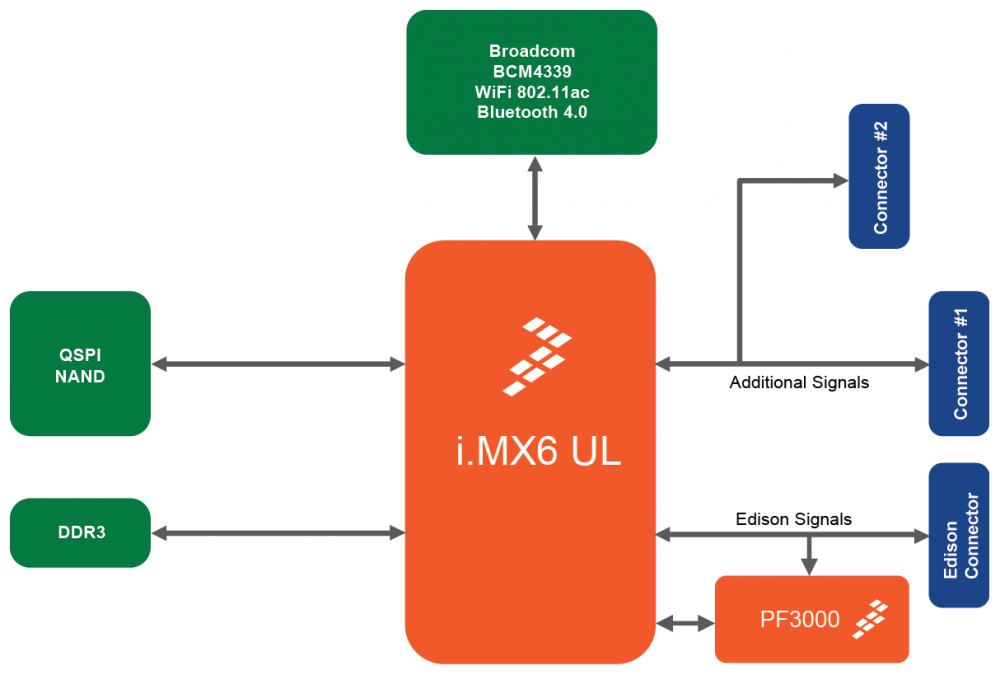

Block Diagram

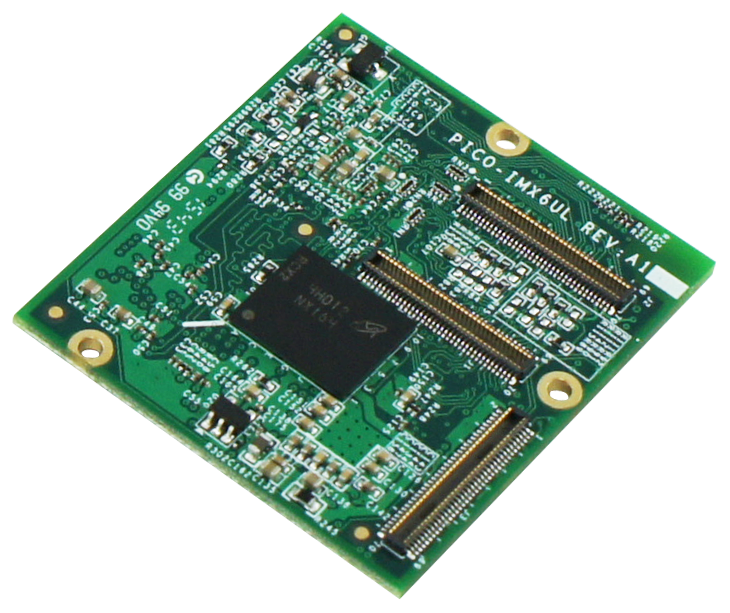

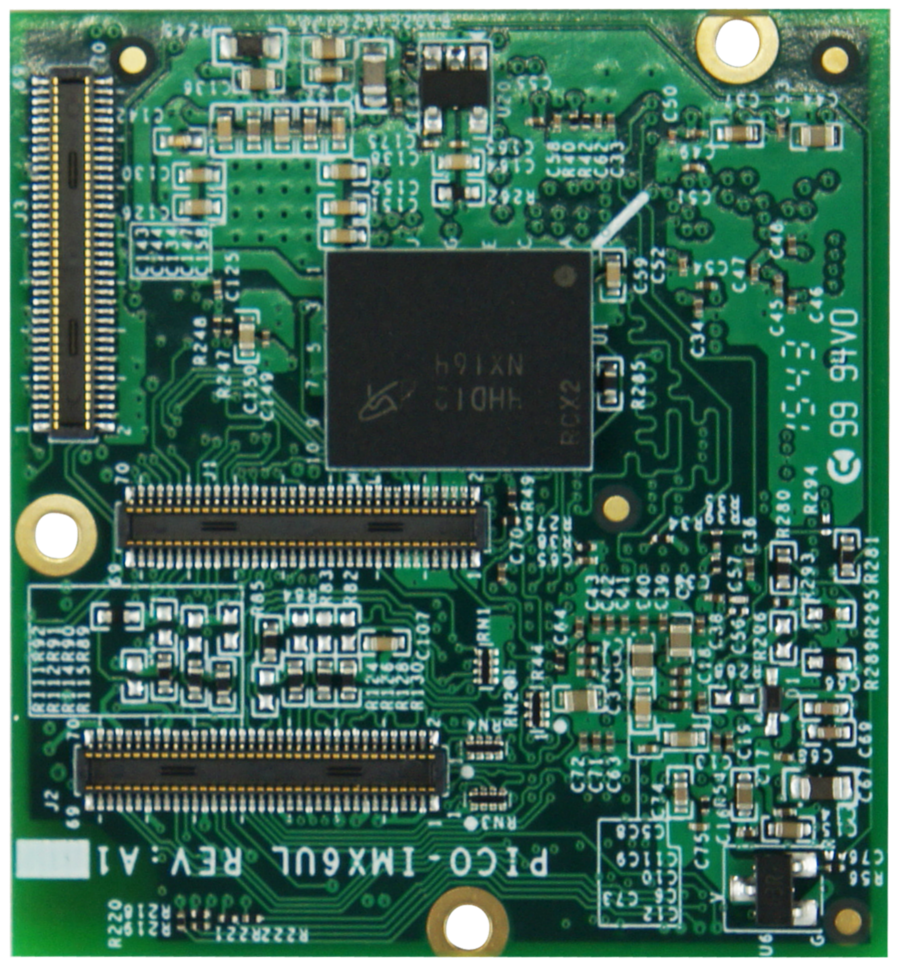

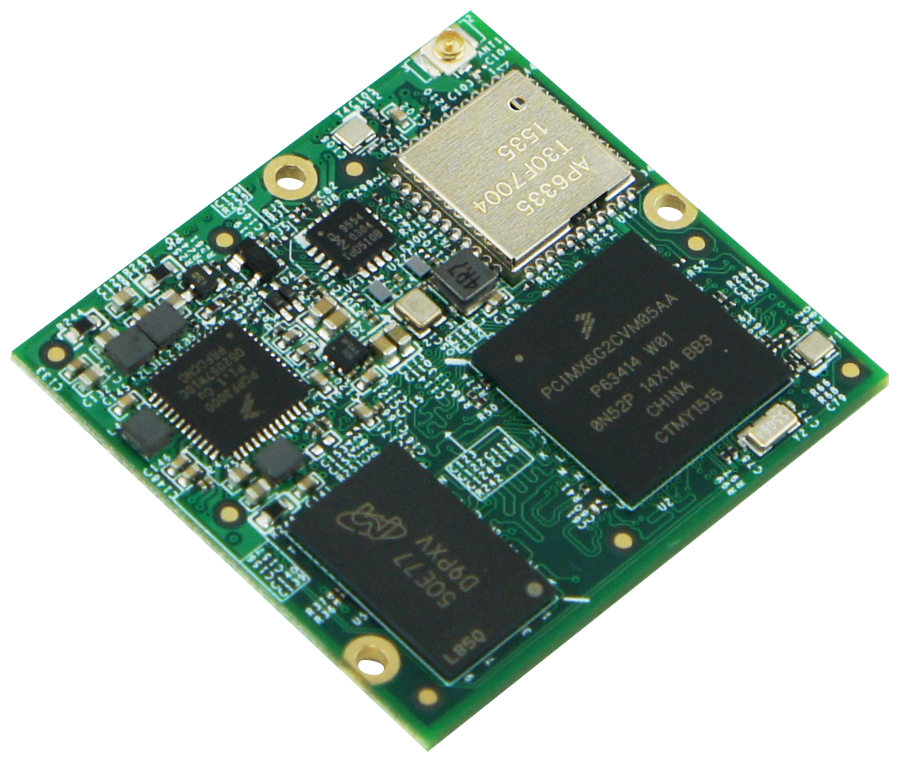

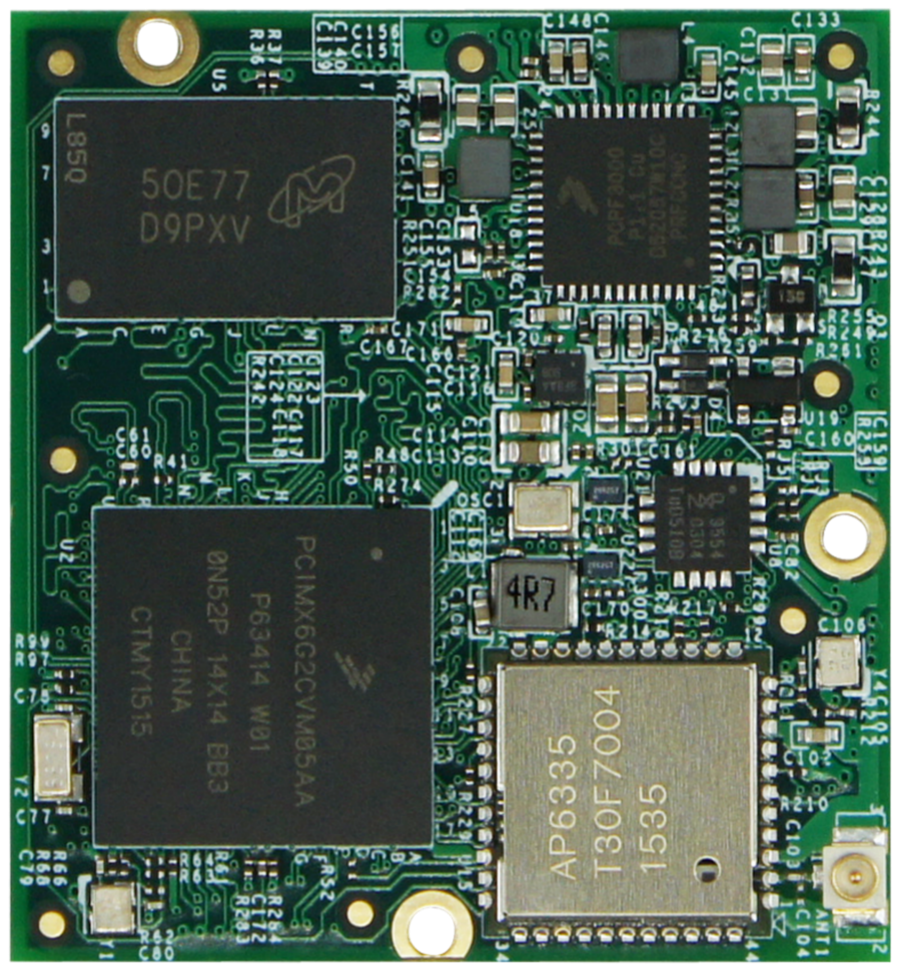

Pictures




Order Codes
PICO-IMX6Y2-05-R02-E04 |
|
PICO-IMX6Y2-05-R02-E04-9377 |
|
PICO-IMX6Y2-05-R05-E04 |
|
PICO-IMX6Y2-09-R02-E04 |
|
PICO-IMX6Y2-09-R02-E04-9377 |
|
PICO-IMX6Y2-09-R05-E04 |
|
PICO-IMX6Y2-09-R05-E04-9377 |
|
