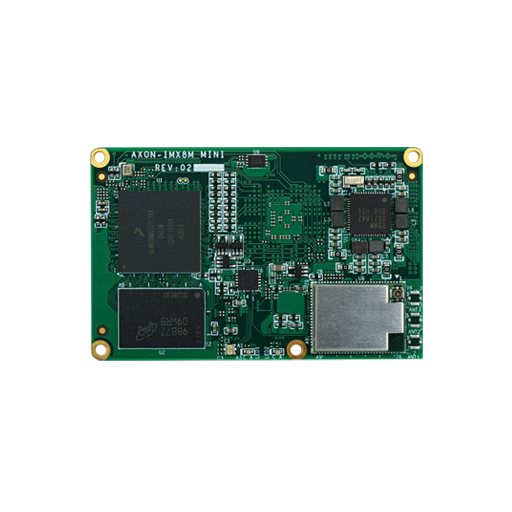

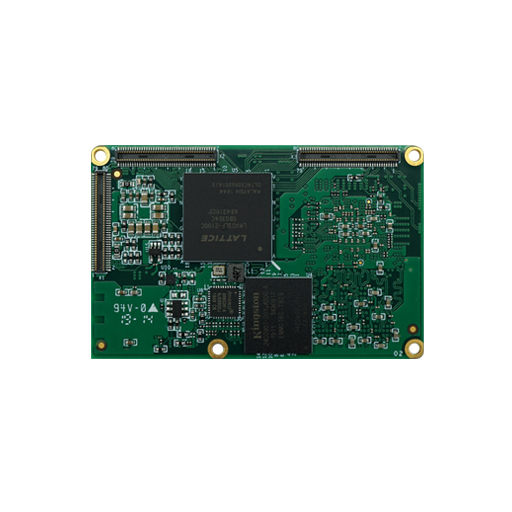

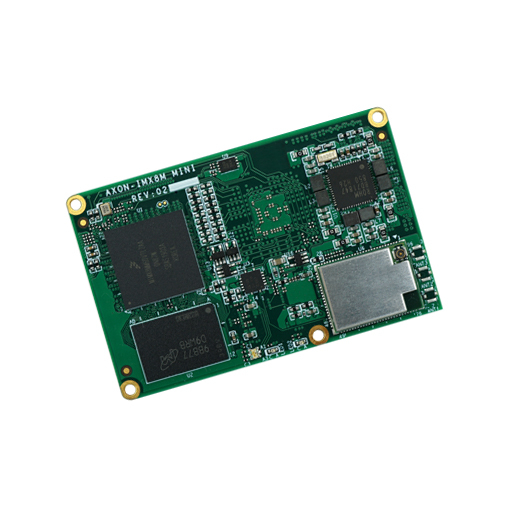

AXON-IMX8M-MINI

NXP I.MX8M Mini based AXON Module

The AXON NXP i.MX8  mini module comes with multiple multimedia interfaces to connect to any type of display at a very low power consumption level in an ultra compact form factor.

  • NXP i.MX8M Mini Quad
  • 1,8 GHz CPU speed
  • up to 1GB GB DDR4 RAM
  • 16 GB eMMC
  • AXON 80-pin Hirose connectors
  • 1x Atheros AR8035 Gigabit LAN
  • 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
  • 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
  • MHF4 connector (optional)
  • I/O: MIPI CSI, MIPI DSI, LAN, PCIe, USB, USB OTG, I²S, SDIO, UART, SPI, I²C, PWM, GPIO
  • Vivante GC7000Lite
  • 1080p60 H.264
  • Camera MIPI CSI (4 lanes)
  • I²S (2 channel)
  • 5V DC +/-5% single supply
  • Commercial: 0° to +60° C
    Extended: -20° to +70° C
    Industrial: -40° to +85° C



Software Support

  • Linux
  • Yocto
  • Ubuntu
  • Android

i.MX8M Mini Quad


AXON-IMX8MMQ-18-R10-E16-F03
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 1 GB RAM
  • 16 GB e.MMC
AXON-IMX8MMQ-18-R10-E16-F03-9377
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 1 GB RAM
  • 16 GB e.MMC
  • WiFi QCA9377 802.11AC
  • Bluetooth 5.0
AXON-IMX8MMQ-18-R20-E16-F03
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 2 GB RAM
  • 16 GB e.MMC



AXON-IMX8MMQ-18-R20-E16-F03-9377
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 2 GB RAM
  • 16 GB e.MMC
  • WiFi QCA9377 802.11AC
  • Bluetooth 5.0
AXON-IMX8MMQ-18-R40-E16-F03
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 4 GB RAM
  • 16 GB e.MMC
AXON-IMX8MMQ-18-R40-E16-F03-9377
  • AXON SOM NXP
  • I.MX8M Mini Quad 1,8 GHZ
  • PMIC
  • 4 GB RAM
  • 16 GB e.MMC
  • WiFi QCA9377 802.11AC
  • Bluetooth 5.0
