AXON PI Evaluation Kit

Get started with the AXON PI Evaluation Kit

Features

NXP i.MX6 Quad and DualLite or NXP i.MX8M Mini Quad
1 GHz / 1,8 GHz CPU speed
ARM Cortex-A9
up to 1GB GB DDR3 RAM
16 GB eMMC
AXON 80-pin Hirose connectors
1x Atheros AR8035 Gigabit LAN
1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
CTIA compliant 3.5mm audio jack
1x RJ45
1x USB 2.0 Host
1x microSD cardslot
I/O: MIPI CSI, MIPI DSI, LAN, PCIe, USB, USB OTG, I²S, SDIO, UART, SPI, I²C, PWM, GPIO
Vivante GC320 (2D Composition)

Vivante GC355 (Dual/Quad)

Vivante GC2000 (Dual/Quad)
Vivante GC7000Lite (Mini Quad)
1080p60 H.264 (Quad)
Camera MIPI CSI (4 lanes)
I/O: HDMI, LVDS (Single Channel), LVDS (Dual Channel), RGB TTL, MIPI CSI, MIPI DSI, LAN, PCIe, USB, USB OTG, I²S, SPDIF, SATA, SDIO, CAN, UART, SPI, I²C, PWM, GPIO
Audio I²S (2 channel)
5V DC +/-5% single supply
Commercial: 0° to +60° C

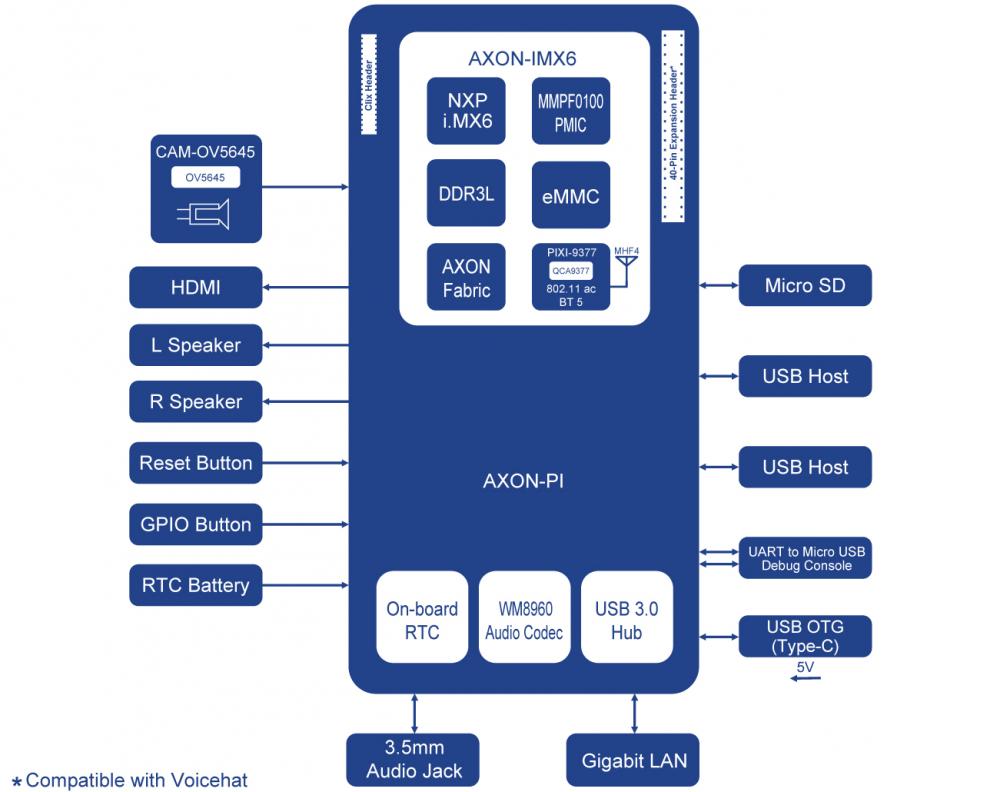

Block Diagram

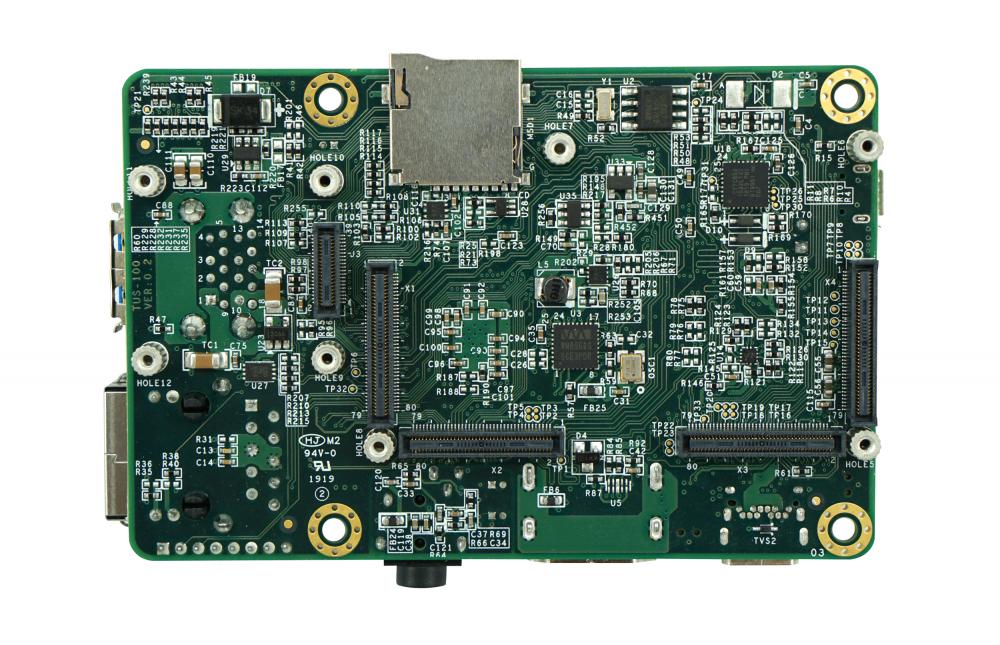

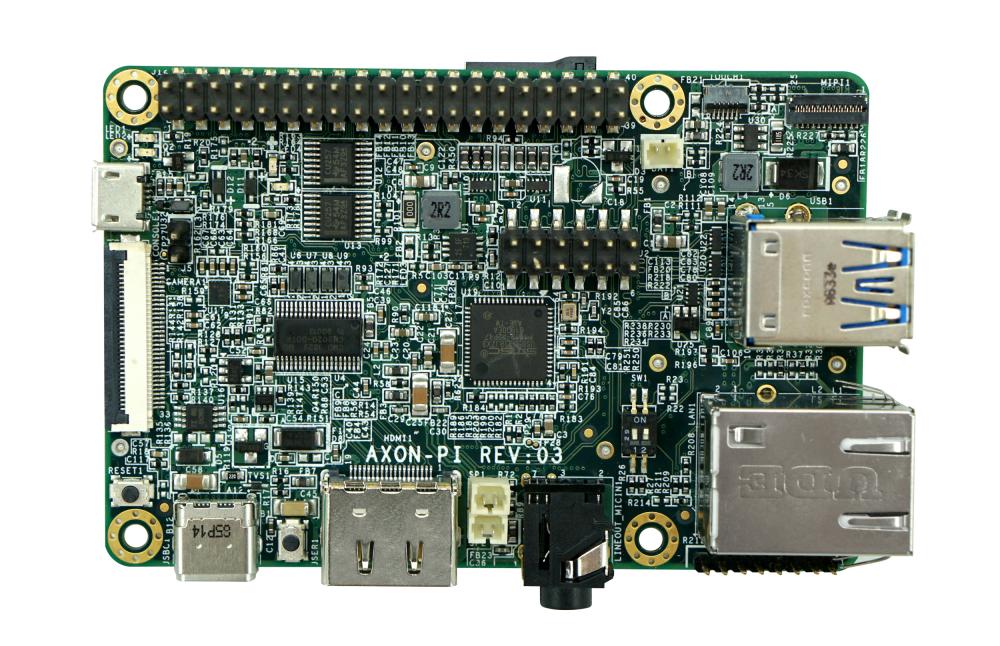

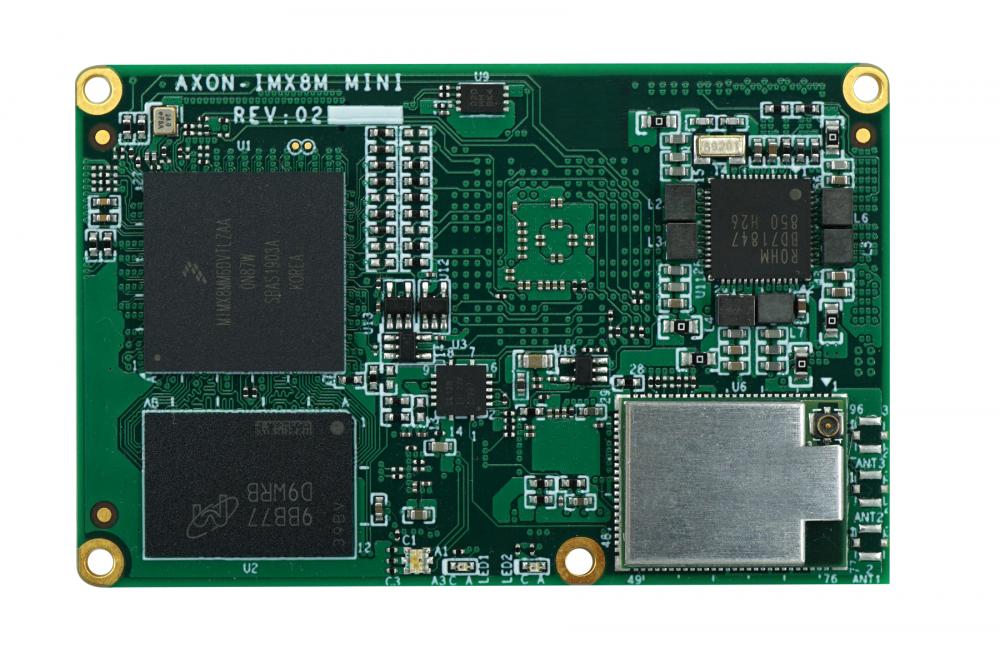

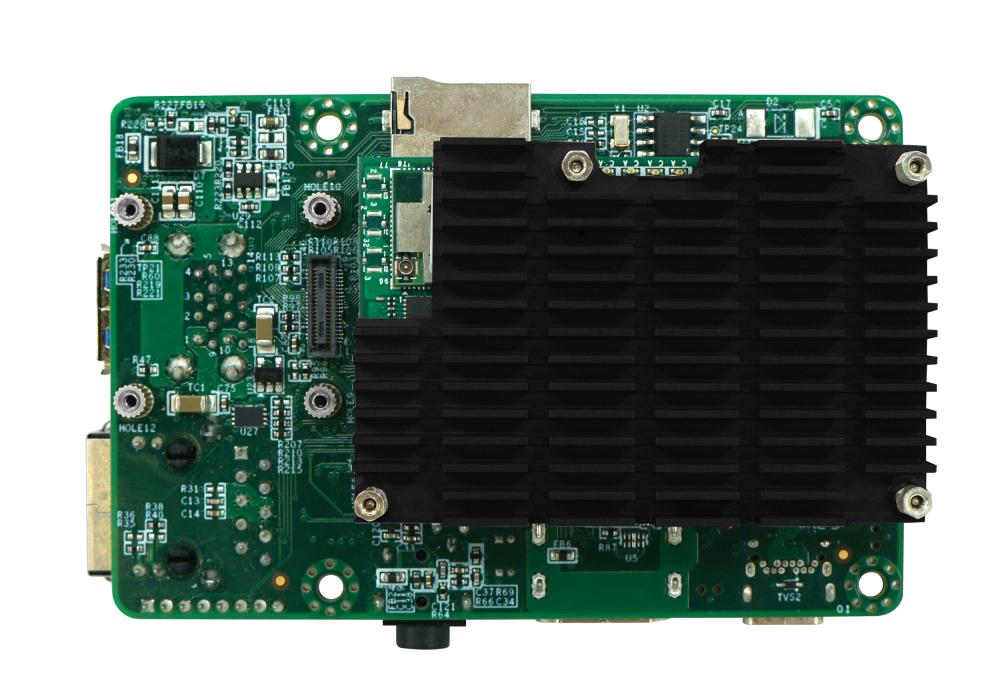

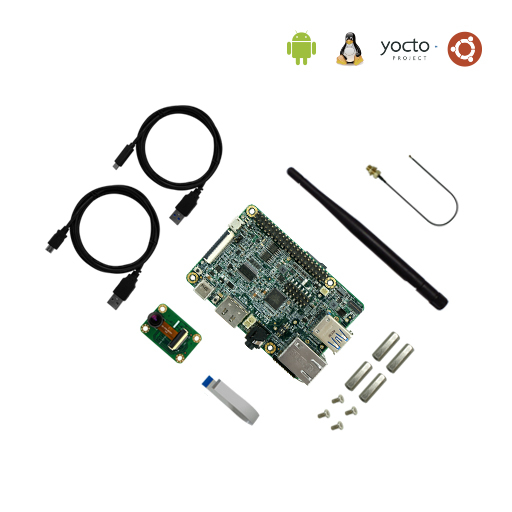

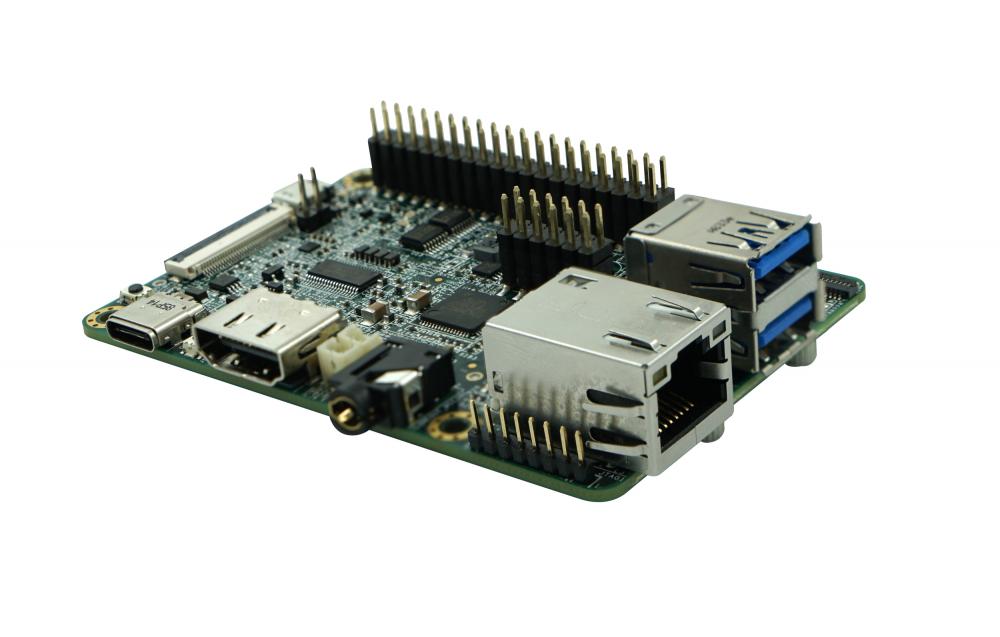

Pictures

Order Codes

i.MX6 Quad and DualLite
AXON-PI-IMX6Q-1G	AXON SOM NXP I.MX6 Quad 1 GHZ ARM Cortex-A9 NXP MMPF0100 1 GB DDR3 RAM 16 GB e.MMC Atheros AR8035 Gigabit LAN Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac Qualcomm Atheros QCA9377 Bluetooth 5
AXON-PI-IMX6U-1G	AXON SOM NXP I.MX6 DualLite 1 GHZ ARM Cortex-A9 NXP MMPF0100 1 GB DDR3 RAM 16 GB e.MMC Atheros AR8035 Gigabit LAN Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac Qualcomm Atheros QCA9377 Bluetooth 5
i.MX8M Mini Quad
AXON-PI-IMX8M-MINI-2G-DEV	AXON SOM NXP I.MX8M Mini Quad 1,8 GHZ ARM Cortex-A53 +M4 ROHM BD71847 2 GB DDR3 RAM 16 GB e.MMC Atheros AR8035 Gigabit LAN Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac Qualcomm Atheros QCA9377 Bluetooth 5
AXON-PI-IMX8M-MINI-4G-DEV	AXON SOM NXP I.MX8M Mini Quad 1,8 GHZ ARM Cortex-A53 +M4 ROHM BD71847 4 GB DDR3 RAM 16 GB e.MMC Atheros AR8035 Gigabit LAN Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac Qualcomm Atheros QCA9377 Bluetooth 5

Get started with the AXON PI Evaluation Kit
