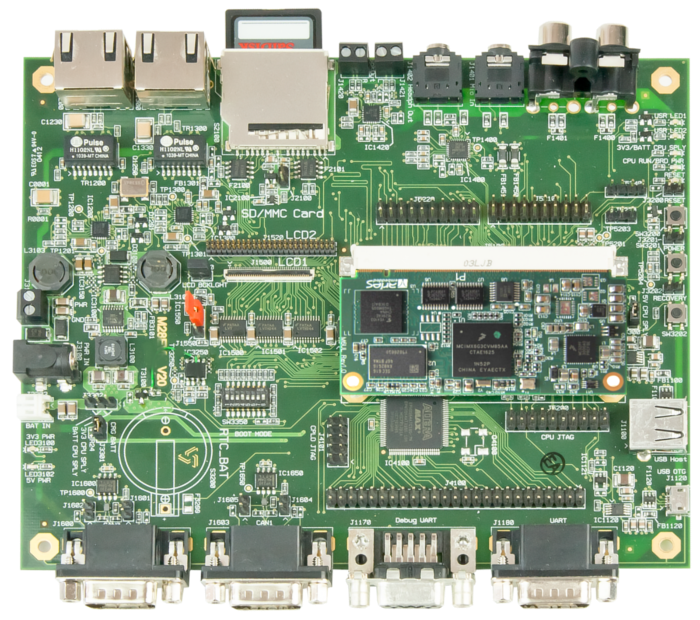

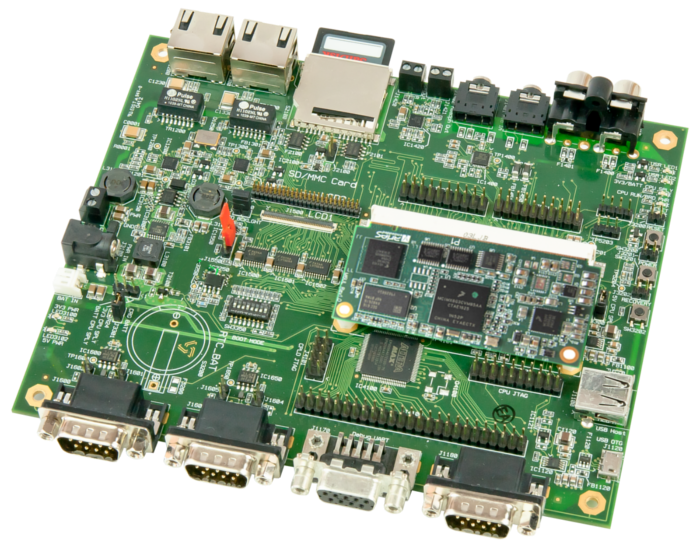

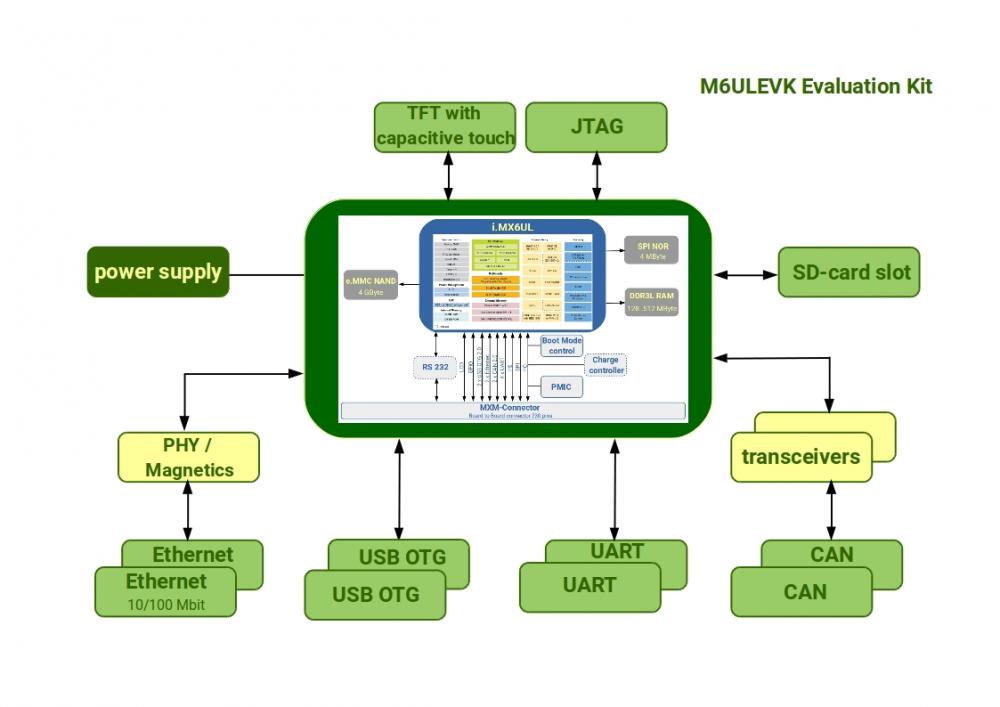

M6ULEVK – NXP i.MX6UL Evaluation Kit

Easy Start and Integration of the i.MX6UL SoM

The M6ULEVK is available as a flexible evaluation platform which enables user to setup a running system in a very short time frame. Due to the Plug'n Play concept and the completeness of the EVK it can be used either for evaluating the M6UL SOM or setting up a prototype.

The M6ULEVK is shipped as a complete kit with an optional 17,78cm (7'') TFT display with touch screen support and a wall plug.

    • size 165mm x 135mm
    • dual Ethernet 10/100MBit on RJ45
    • debug UART on DSUB9
    • UART on DSUB9
    • dual CAN on DSUB9
    • line in, mic in, headphone out / speaker out via SGTL5000
    • USB Host
    • USB OTG
    • SD card slot
    • SPI Flash
    • I²C EEPROM
    • DIP Switch for Boot Mode and Power options
    • CPLD for port expansion via I²C/SPI
    • JTAG



    • M6UL-10AB50E
      • 256MB DDR3L RAM
      • 4GB eMMC NAND Flash
    • power supply
    • download cable
