AXON IMX6
NXP I.MX6 Based AXON Module

The NXP i.MX6 AXON Compact module comes with multiple multimedia interfaces to connect to any type of display at a very low power consumption level in an ultra compact form factor.
Features
- NXP i.MX6 Dual Lite/Quad
- 1GHz CPU speed
- 1GB GB DDR3 RAM
- 16GB eMMC (default)
- AXON 80-pin Hirose connectors
- 1x Atheros AR8035 Gigabit LAN
- 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
- 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
- MHF4 connector (optional)
-
I/O: HDMI, LVDS (Single Channel), LVDS (Dual Channel), RGB TTL, MIPI CSI, MIPI DSI, LAN, PCIe, USB, USB OTG, I²S, SPDIF, SATA, SDIO, CAN, UART, SPI, I²C, PWM, GPIO
-
Vivante GC320 (2D Composition), Vivante GC355 (Quad), Vivante GC880 (Solo/DualLite), Vivante GC2000 (Quad)
-
1080p30 + D1 (Solo/DualLite), 1080p60 H.264 (Quad)
- BP/Dual 720p
- Camera MIPI CSI (4 lanes)
- I²S (2 channel)
- 5V DC +/-5%
- Commercial Temperature range (0~60° C)(Default)
-
Extended: -20° to +70° CIndustrial: -40° to +85° C
Software Support
- Linux
- Yocto
- Ubuntu
- Android

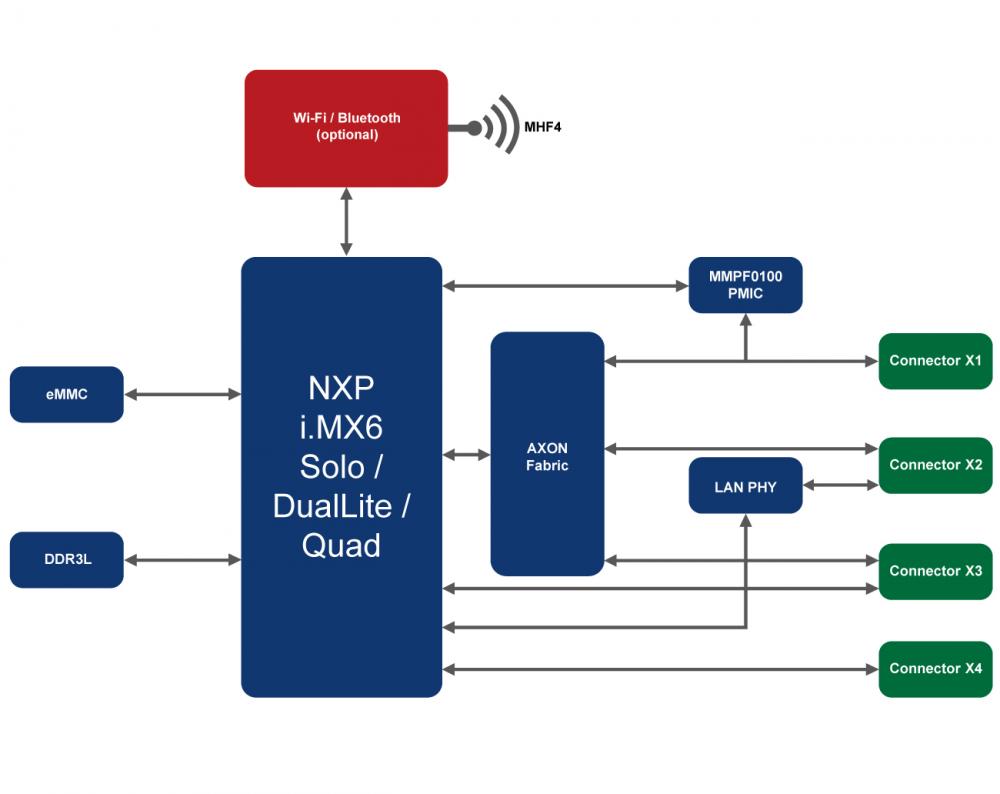

Block Diagram

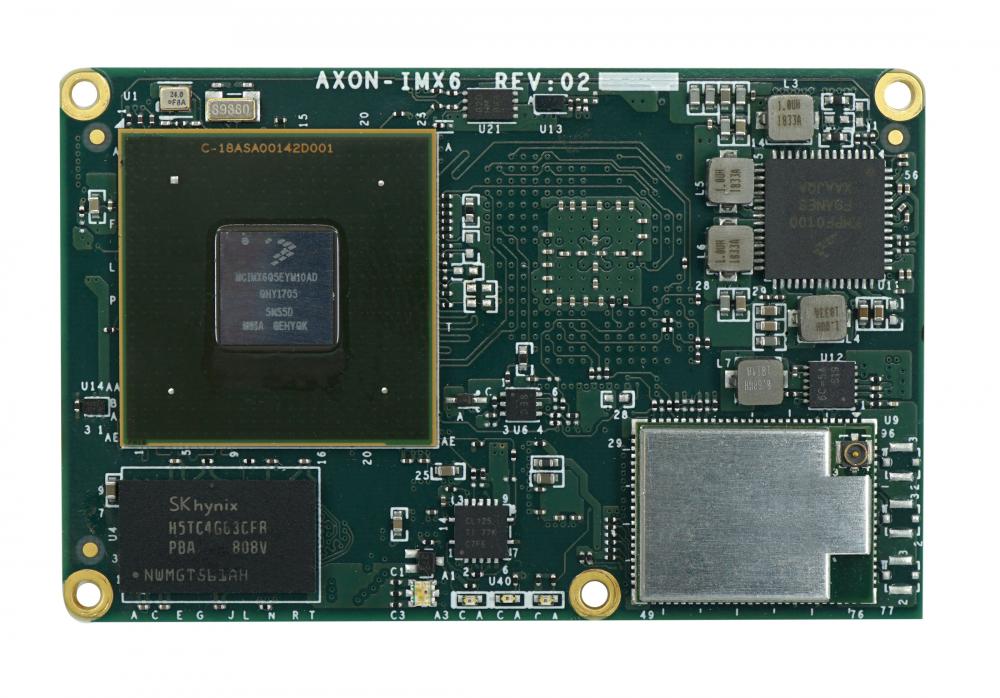

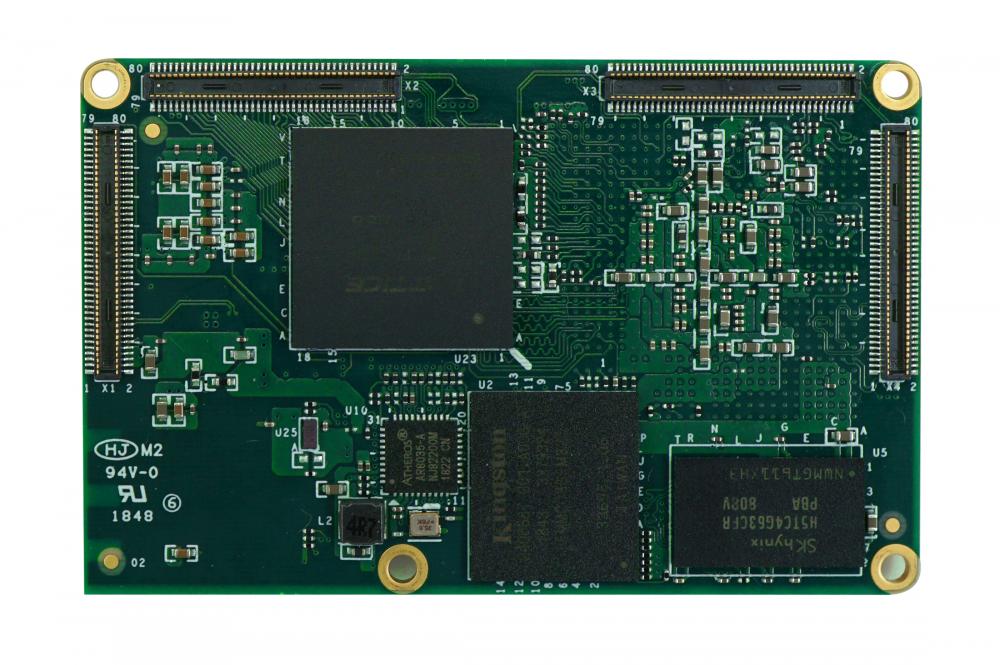

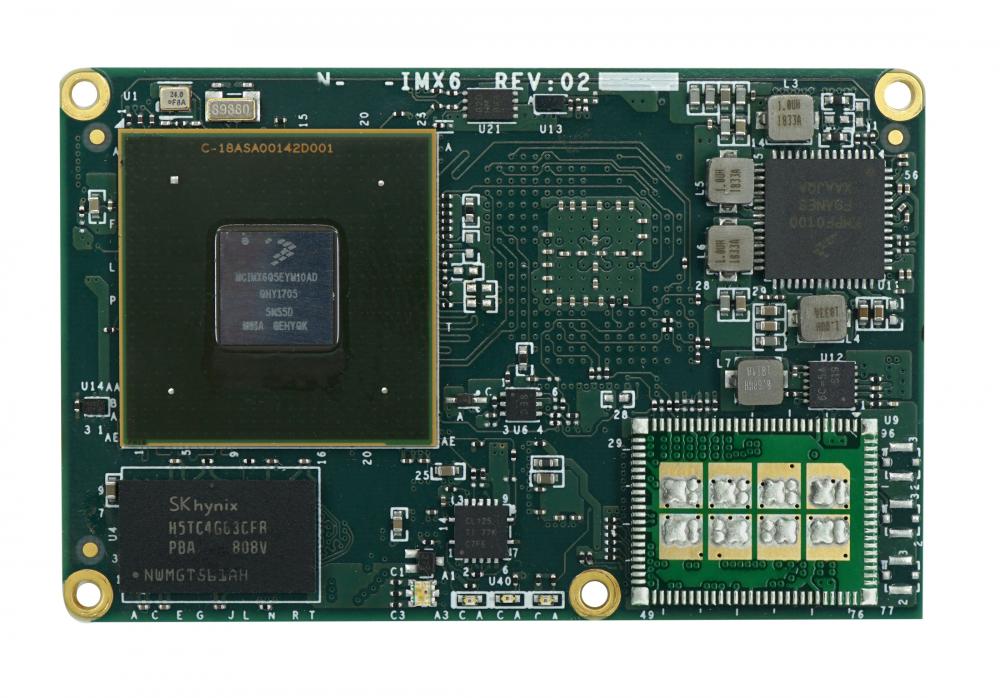

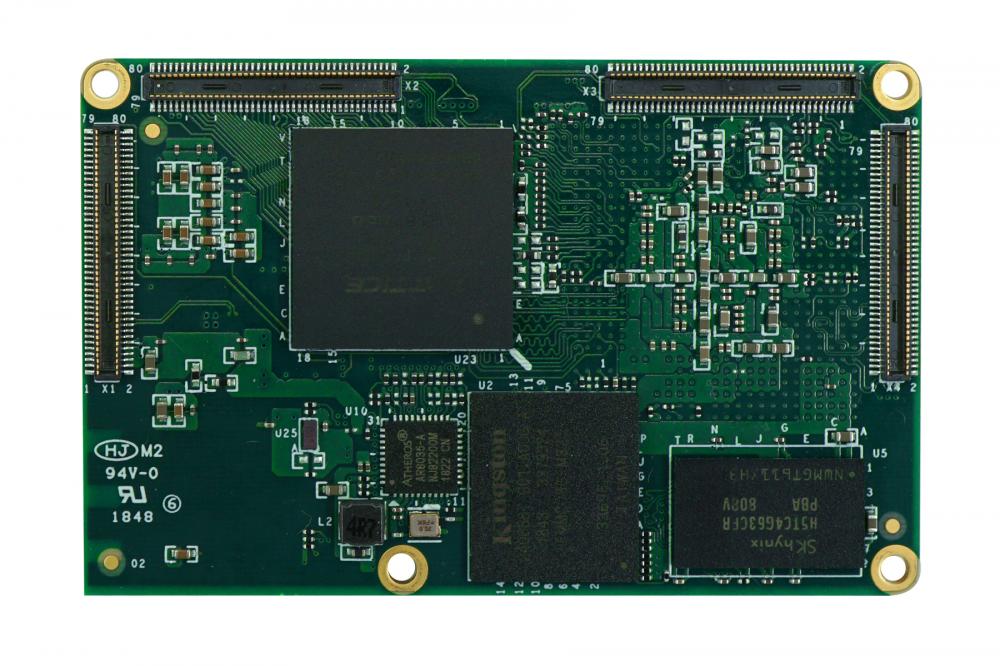

Pictures




Order Codes
AXON i.MX6 Quad |
|
AXON-IMX6Q-10-R10-E16-F03 |
|
AXON-IMX6Q-10-R10-E16-F03-9377 |
|
AXON i.MX6 DualLite |
|
AXON-IMX6U-10-R10-E16-F03 |
|
AXON-IMX6U-10-R10-E16-F03-9377 |
|
