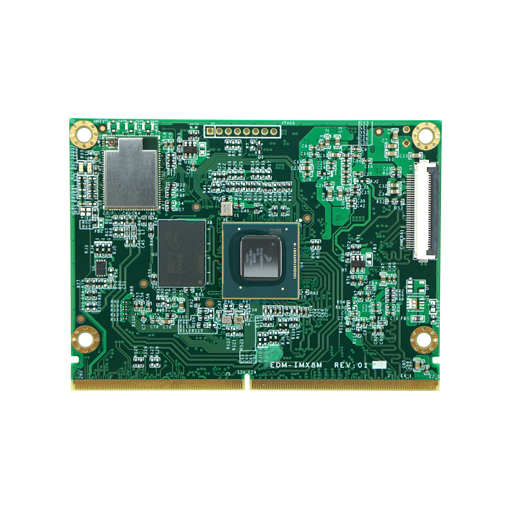

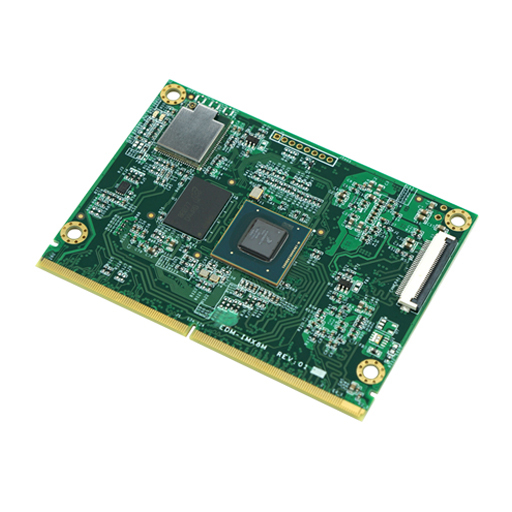

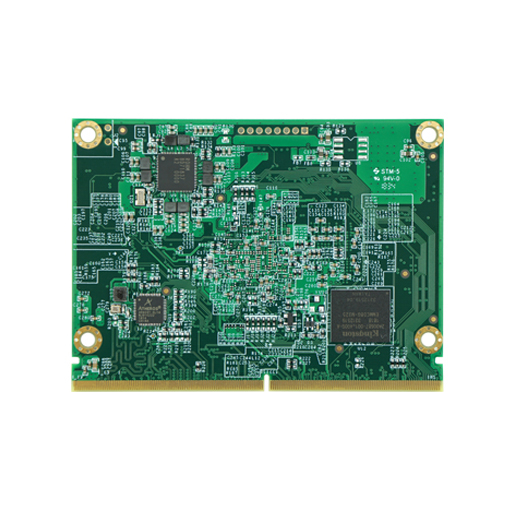

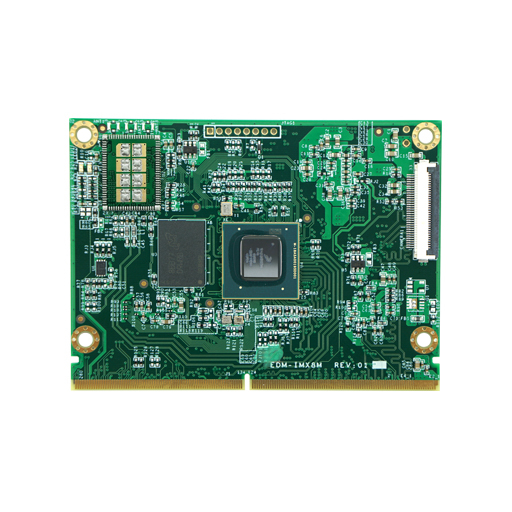

EDM-IMX8M

NXP i.MX8M System on Module on the EDM Formfactor

EDM-IMX8M is an extreme-performance, low-power SoM featuring NXP i.MX8M applications processor based on ARM Cortex-A53 and Cortex-M4 architecture that provides industry-leading video, voice and audio processing capabilities.

Featuring video quality with full 4K UltraHD resolution and HDR.

It supports the newest high-speed interfaces for flexible connectivity.

W-Fi and Bluetooth communication interface.

Software source code at your fingertips: Abdroid, Linuy and Yocto.

    • Freescale i.MX8M Quad
    • 1.3Ghz CPU speed
    • up to 4GB LPDDR4 RAM
    • 16GB eMMC (default)
    • JTAG interface by Through-hole
    • Ethernet via Atheros AR8035 Gigabit LAN
    • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
    • Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
    • HDMI
    • MIPI CSI
    • MIPI DSI
    • LAN
    • PCIe
    • USB
    • USB OTG
    • I²S
    • SDIO
    • UART
    • SPI
    • I²C
    • PWM
    • GPIO
    • Vivante GC7000Lite
    • Commercial: 0° to +60° C
      Extended: -20° to +70° C
      Industrial: -40° to +85° C
    • 5 V ±5% DC single supply

    Software Support

    • Linux
    • Yocto
    • Ubuntu
    • Android

    i.MX8M Quad



    EDM-IMX8MQ13-R10-E16

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 1GB LPDDR4 RAM
    • 16GB e.MMC
    • Atheros AR8035 Gigabit LAN

    EDM-IMX8MQ13-R10-E16-9377

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 1GB LPDDR4 RAM
    • 16GB e.MMC
    • Atheros AR8035 Gigabit LAN
    • 1x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac
    • BLUETOOTH 5.0

    EDM-IMX8MQ13-R20-E16

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 2GB LPDDR4 RAM
    • 16MB e.MMC
    • Atheros AR8035 Gigabit LAN


    EDM-IMX8MQ13-R20-E16-9377

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 2GB LPDDR4 RAM
    • 16GB e.MMC
    • Atheros AR8035 Gigabit LAN
    • 1x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac
    • BLUETOOTH 5.0

    EDM-IMX8MQ13-R40-E16

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 4GB LPDDR4 RAM
    • 16MB e.MMC
    • Atheros AR8035 Gigabit LAN

    EDM-IMX8MQ13-R40-E16-9377

    • EDM SOM
    • NXP i.MX8M Quad 1,3GHz
    • 4MB RAM
    • 16MB e.MMC
    • Atheros AR8035 Gigabit LAN
    • 1x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac
    • BLUETOOTH 5.0

    NXP i.MX8M System on Module on the EDM Formfactor
