PI Evaluation Kit

Ideal candidate for IoT Evaluation

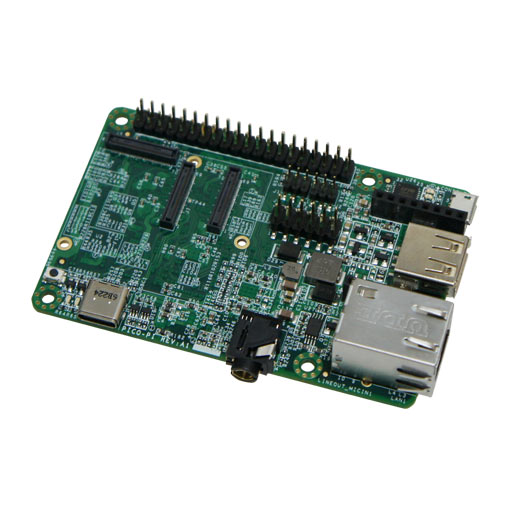

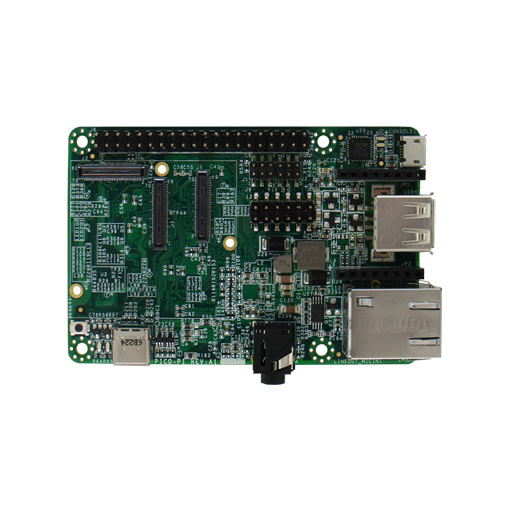

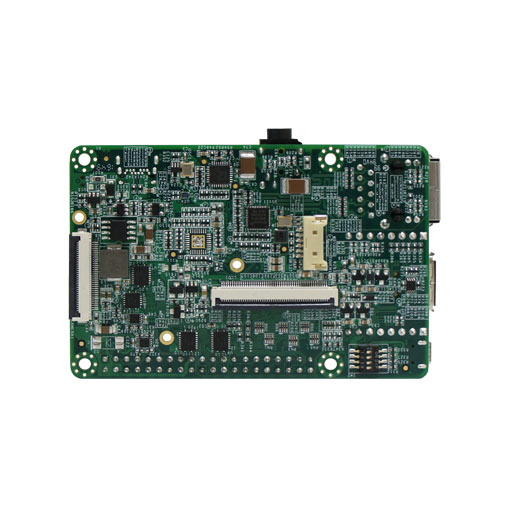

The PICO-PI reference design is compatible with Intel Edison and TechNexion Pico modules and add a variety of sensors and connectivity to the Pico module making it the ideal candidate for IoT (Internet of Things).



  • Edison compatibile connector
  • PICO 70-pin Hirose connectors
  • 1x Atheros AR8035 Gigabit LAN (optional)
  • 1x Micrel KSZ8084RNB Fast Ethernet LAN (optional)
  • 1x 24-bit TTL RGB signals (expansion header)
  • MIPI DSI signals on 33-pin FPC connector
  • 1x RJ45
  • 1x USB 2.0 Host
  • 1x USB 2.0 OTG (C-Type)
  • NXP SGTL5000
  • ADC
  • GPIO
  • I²C
  • I²S
  • PWM
  • RS232
  • SPI
  • UART
  • CTIA compliant 3.5mm audio jack
  • Commercial: 0° to +60° C
  • Relative humidity: 10 to 90 %
  • Size: 85.6 x 56.5 mm
  • Compliant with CE / FCC / RoHS / REACH directives





PICO-PI-FL

PICO PI CARRIER BOARD WITH FAST ETHERNET LAN

PICO-PI-GL

PICO PI CARRIER BOARD WITH GIGABIT ETHERNET LAN
