PICO-IMX8M-MINI System on Module
PICO SoM based on i.MX8M Mini
The PICO-IMX8M is a high-performance and reliability SoM featuring NXP i.MX8M mini applications processor based on ARM Cortex-A53 and Cortex-M4 architecture that provides industry-leading computing performances, efficency and security.
Featuring 2D and 3D graphics, 1080p video quality for rich visual HMI experience, it supports the newest high-speed interfaces for flexible connectivity. The PICO-IMX8M is optimized for fanless operations, low thermal system cost, and long battery life.
The reference design is compatible with Intel Edison baseboards and adds a number of additional high-speed signals such as PCIe, RGMII LAN, USB as well as MIPI CSI Camera ans MIPI DSI Display options.
Features
- Freescale i.MX8M MINI Solo/Dual/Quad
- ARM Cortex-A53 + M4 core @ up to 1,6 GHz and 1,8 GHz
- ROHM BD71837
- up to 4GB LPDDR4 RAM
- 16GB eMMC
- 1x Intel Edison compatible connector (Hirose 70-pin)
- 2x PICO Hirose 70-pin connectors
- RGMII
- 1x Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
- 1x Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
- MHF4 connector (optional)
- I/O: MIPI CSI, MIPI DSI, RGMII, PCIe, USB, USB OTG, I²S, SDIO, UART, SPI, I²C, PWM, GPIO
- Vivante GC Nano Ultra
-
1080p60 H.264
- MIPI CSI (4 lanes)
- I²S (2 channel)
- 4.2-5.25V DC
- Commercial: 0° to +60° C
-
Extended: -20° to +70° C
-
Industrial: -40° to +85° C
- 37 x 40 mm / 1⅜ x 1⅝ inch
- 8 grams
- Compliant with RoHS / REACH directives
Software Support
- Linux
- Yocto
- Android
- Ubuntu

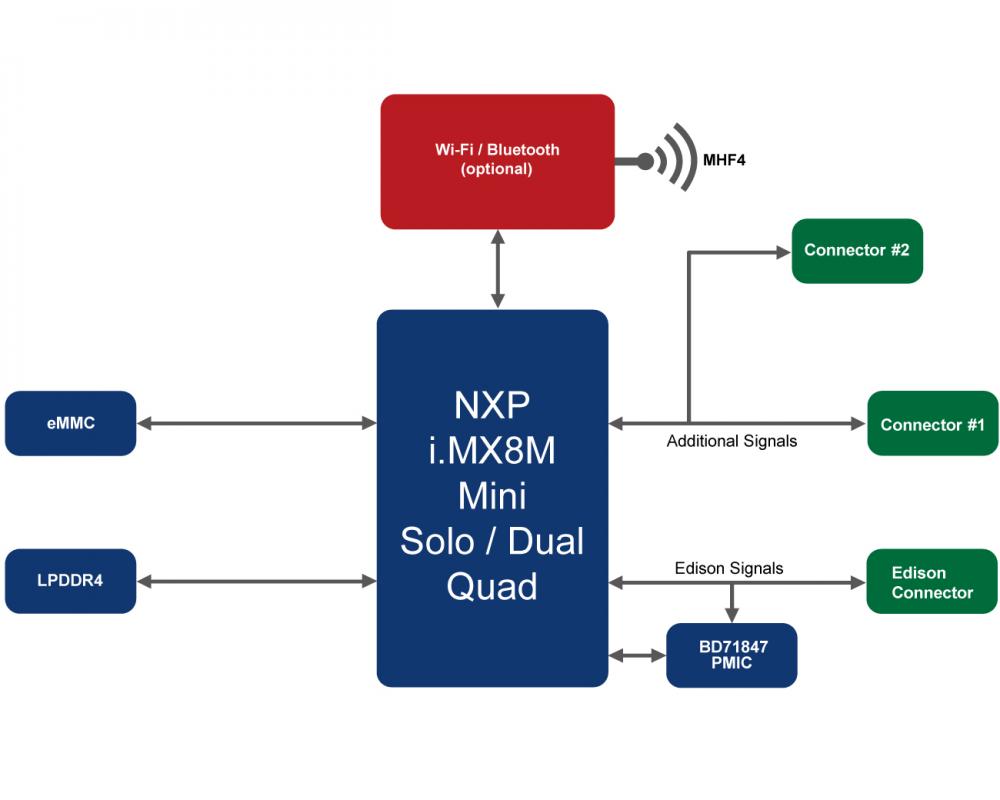

Block Diagram

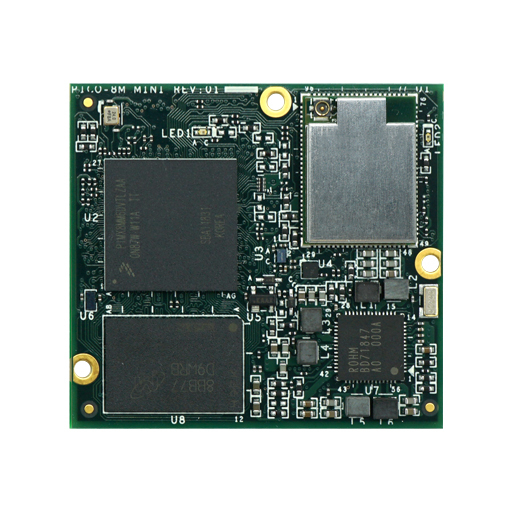

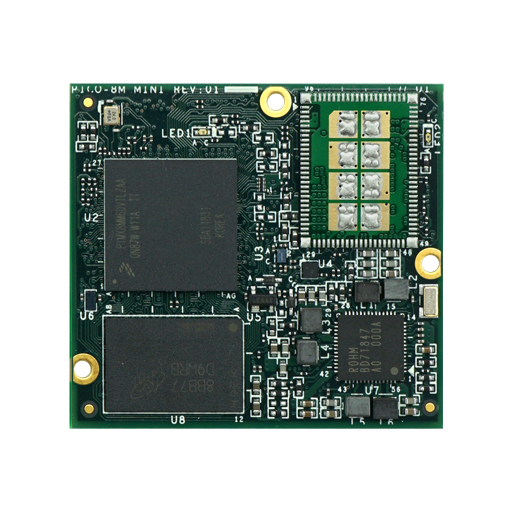

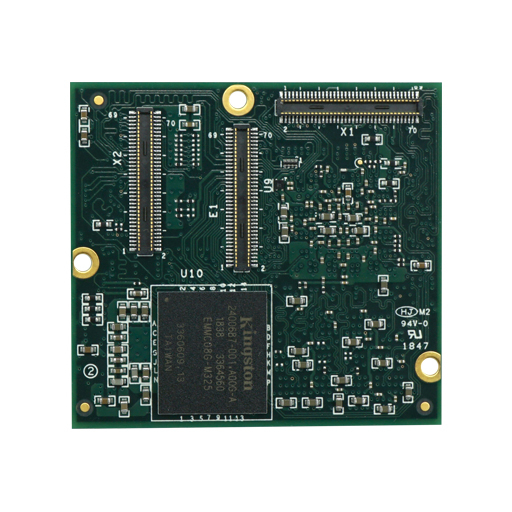

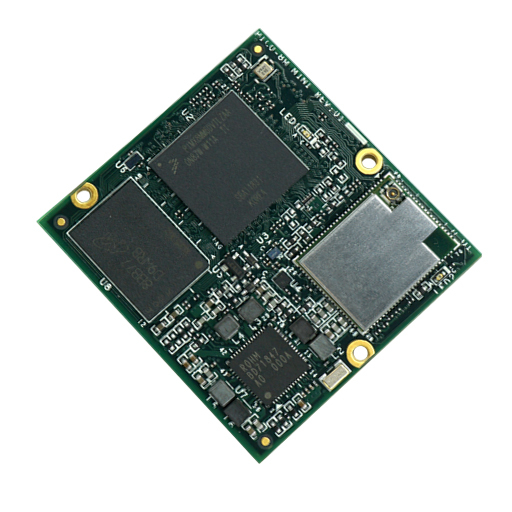

Pictures
Order Codes
i.MX8M MINI Quad |
|
PICO-IMX8MMQ18-R10-E16 |
|
PICO-IMX8MMQ18-R10-E16-9377 |
|
PICO-IMX8MMQ18-R20-E16 |
|
|
PICO-IMX8MMQ18-R20-E16-9377 |
|
PICO-IMX8MMQ18-R40-E16 |
|
|
PICO-IMX8MMQ18-R40-E16-9377 |
|
Feel free to contact us for customization requests.
