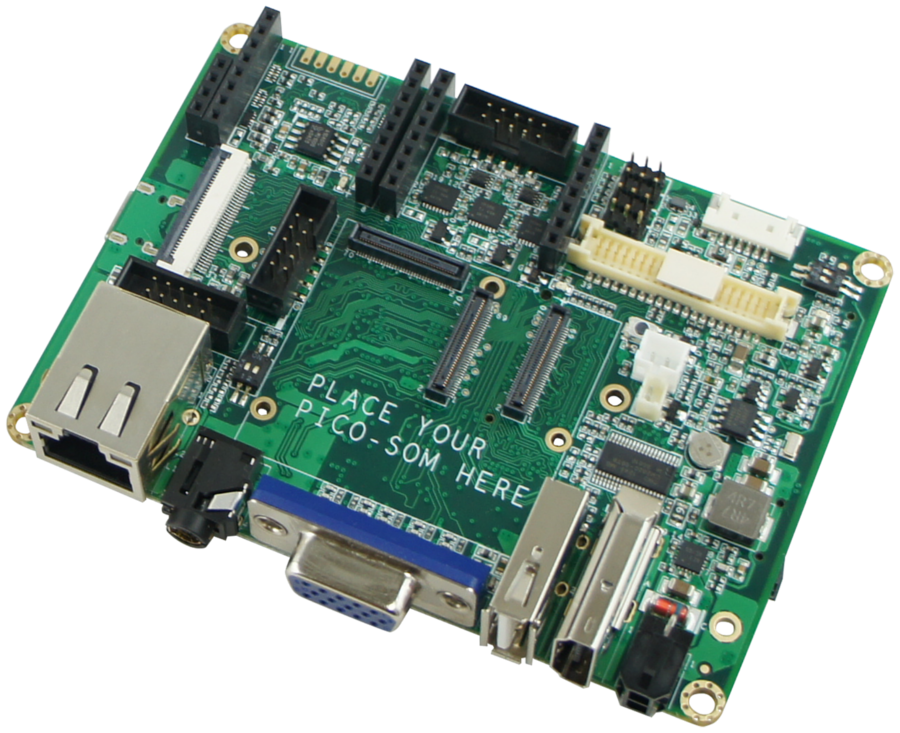

NYMPH Evaluation Kit

Small, Smart + Utilitarian baseboard for PICO SoMs

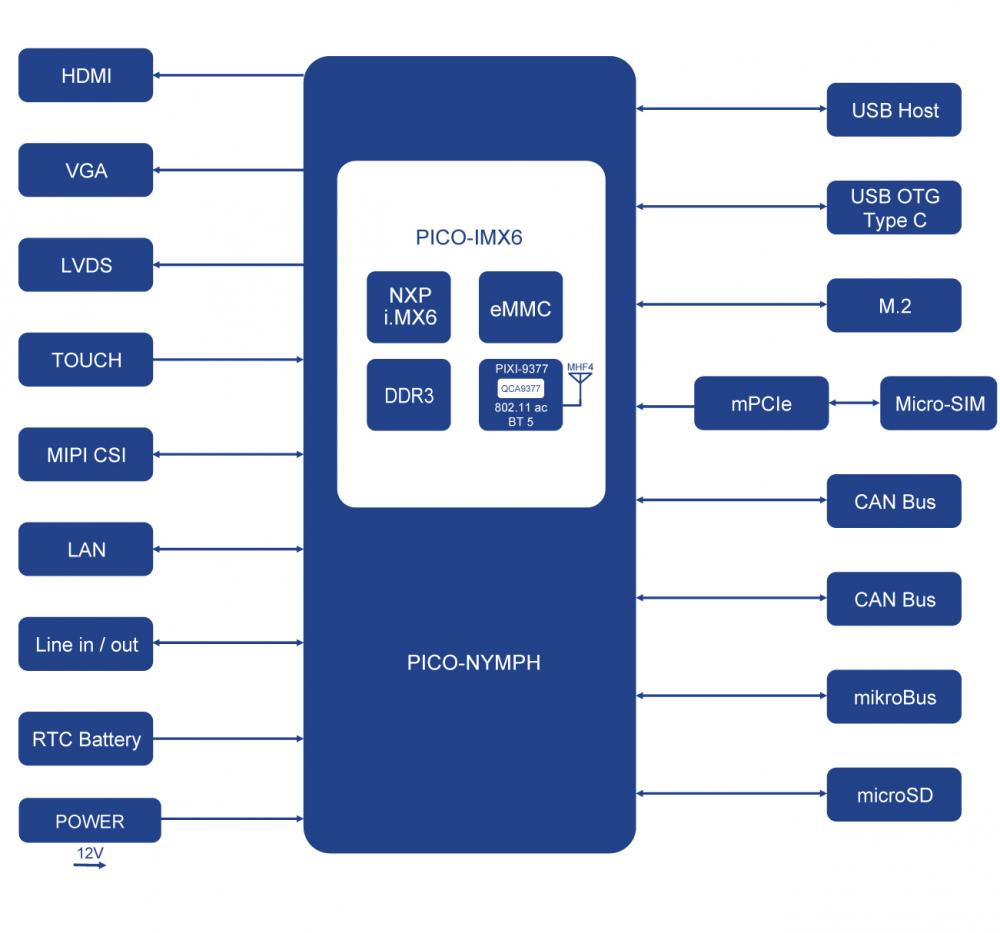

The PICO-NYMPH design is compatible with Edison and TechNexion Pico SoM modules and adds a a bunch of functions to connect the PICO SoMs to the Internet of Things .

The complete schematics, design files, board files and BOM lists of PICO-NYPMH are available for use in customer projects.

    • Compatible with Edison connector (1x 70-pin Hirose Connector)
    • Compatible with TechNexion Pico connectors (3x 70-pin Hirose Connector)
    • Ethernet
    • RJ-45 LAN Connector
    • HDMI connector
    • Single Channel LVDS (expansion header)
    • MIPI DSI Display on 33-pin FPC Connector
    • MIPI CSI signals on 33-pin FPC Connector
    • Freescale SGTL5000
    • 1x micro SD cardslot
    • 1x USB 2.0 Host connector
    • 1x USB 2.0 OTG connector
    • PCIe
    • CAN
    • GPIO
    • I²C
    • SPI
    • UART
    • 12 VDC +/- 5%
    • 5.5 / 2.1mm barrel jack
    • Commercial : 0° to 60° C
    • 10 - 90%
    • 100 x 72 mm
    • 40 grams
    • Compliant with CE, FCC, RoHS, REACh directives
    PICONYMPHFL

    PICO NYMPH CARRIER BOARD WITH FAST ETHERNET LAN

    PICONYMPHGL PICO NYMPH CARRIER BOARD WITH GIGABIT LAN



    Different configurations of baseboards are available upon request.
