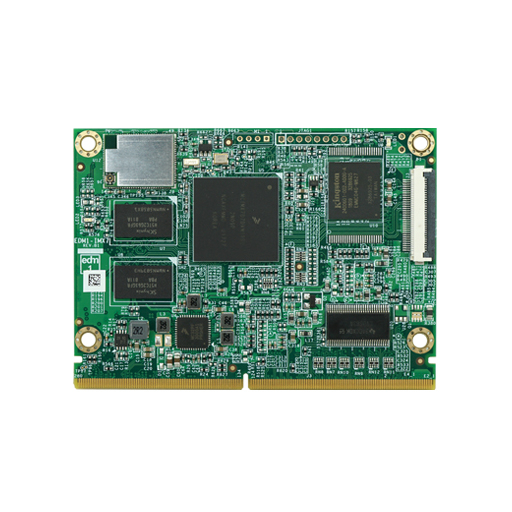

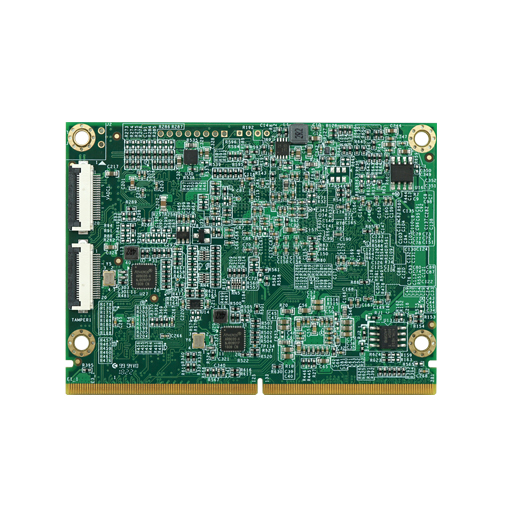

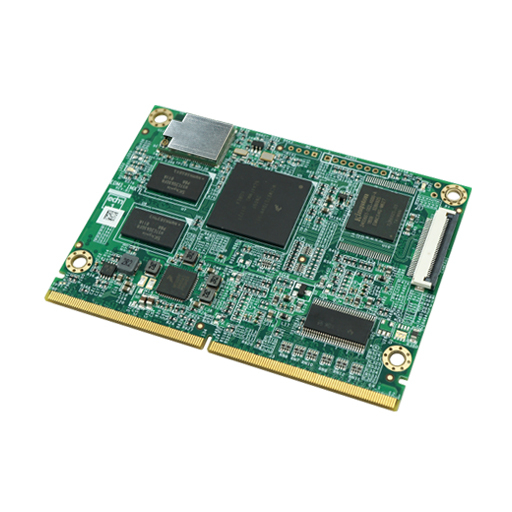

EDM-IMX7

EDM Type 1 system on module around NXP i.MX7

The Freescale i.MX6 EDM Type 1 Compact module comes with multiple multimedia interfaces to connect to any type of display at a very low power consumption level in an ultra compact form factor.

  • Freescale i.MX7 Solo/Dual
  • 1GHz CPU speed
  • up to 2GB DDR3L RAM
  • 16GB eMMC (default)
  • JTAG interface by Through-hole
  • 2 Ethernet via Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
  • Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
  • Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
  • RGB TTL
  • MIPI CSI
  • MIPI DSI
  • LAN
  • PCIe
  • USB
  • USB OTG
  • I²S
  •  SPDIF
  •  SATA
  •  SDIO
  •  CAN
  •  UART
  •  SPI
  •  I²C
  •  PWM
  •  GPIO
  • Commercial: 0° to +60° C
    Extended: -20° to +70° C
  • 5 V ±5% DC single supply

Software Support

  • Linux
  • Yocto
  • Ubuntu
  • Android

i.MX7 Dual



EDMIMX7D10R05E16L2
  • EDM COMPACT TYPE 1
  • I.MX7 DUAL 1GHZ
  • PMIC NXP PF3000
  • 512MB RAM
  • 16GB e.MMC
  • 2GB Atheros AR8035 Gigabit LAN

EDMIMX7D10R10E16L29377
  • EDM COMPACT TYPE 1
  • I.MX7 DUAL 1GHZ
  • PMIC NXP PF3000
  • 512MB RAM
  • 16GB e.MMC
  • 2GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

EDMIMX7D10R10E16L2
  • EDM COMPACT TYPE 1
  • I.MX7 DUAL 1GHZ
  • PMIC NXP PF3000
  • 1GB RAM
  • 16GB e.MMC
  • 2GB Atheros AR8035 Gigabit LAN

EDMIMX7D10R10E16L29377
  • EDM COMPACT TYPE 1
  • I.MX7 DUAL 1GHZ
  • PMIC NXP PF3000
  • 1GB RAM
  • 16GB e.MMC
  • 2GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5
