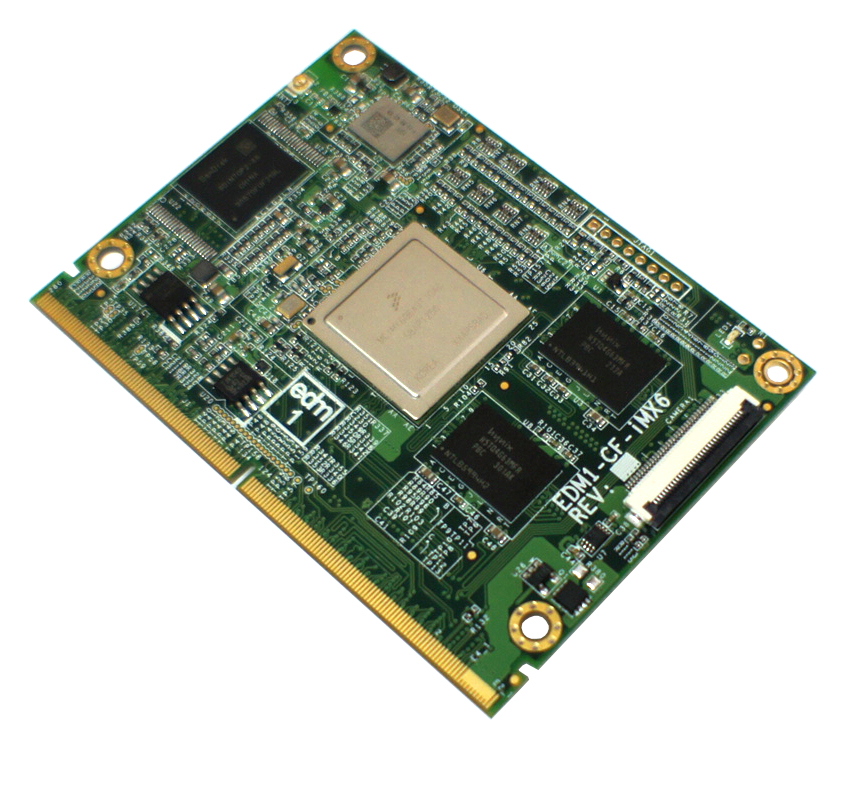

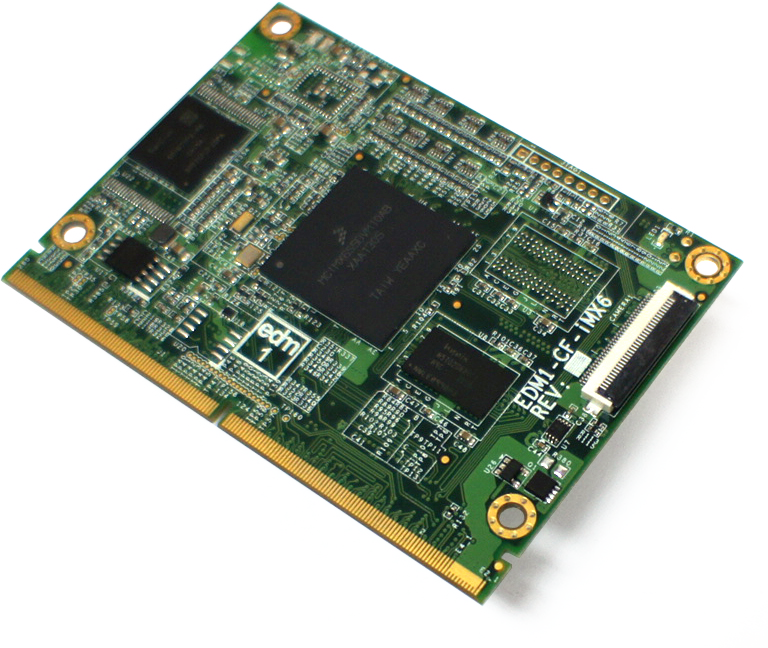

EDM1-iMX6 System on Module

EDM1 Compact SoM based on i.MX6

The Freescale i.MX6 EDM Type 1 Compact module comes with multiple multimedia interfaces to connect to any type of display at a very low power consumption level in an ultra compact form factor.

ARM Cortex-A9 NXP i.MX6 Highly Scalable System-on-Module.
NXP i.MX6 Solo, DualLite, Dual, Quad and QuadPlus options.
EDM1 pin-compatible standard modular design.
Gigabit LAN, WiFi 802.11 a/b/g/n/ac, and Bluetooth v.4.0 communication interface.
1080/720 video encoding/decoding capabilities.

Linux, Android, Ubuntu and Yocto source code.
Open carrier board specifications, design guides, and schematics.
Pre-loaded plug and play startkits.
12-year longevity guarantee.

Optimized for multimedia applications with LVDS, TTL, HDMI, S/PDIF, I2S, MIPI camera and display.

  • Freescale i.MX6 Solo/Dual/Dual Lite/Quad/Quad Plus
  • 1GHz CPU speed
  • up to 2GB GB DDR3 RAM
  • 16GB eMMC (default)
  • MicroSD Cardslot (optional)
  • JTAG interface by Through-hole
  • Camera MIPI Interface CSI (2 lanes)
  • Display MIPI Interface on FPC connector
  • Ethernet via Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac (optional)
  • Qualcomm Atheros QCA9377 Bluetooth 5 (optional)
  • Vivante GC320 (2D Composition)
    Vivante GC355 (Dual/Quad/QuadPlus)
    Vivante GC880 (Solo/DualLite)
    Vivante GC2000 (Dual/Quad)
    Vivante GC2000+ (QuadPlus)
  • 1080p30 + D1 (Solo/DualLite)
    1080p60 H.264 (Dual/Quad)
    HD (1080p +720p) (QuadPlus)
  • HDMI
  • LVDS (Single Channel)
  •  RGB TTL
  •  MIPI CSI
  •  MIPI DSI
  •  LAN
  •  PCIe
  •  USB
  •  USB OTG
  •  I²S
  •  SPDIF
  •  SATA
  •  SDIO
  •  CAN
  •  UART
  •  SPI
  •  I²C
  •  PWM
  •  GPIO
  • EDM type 1 compliant
  • 5 V ±5% DC single supply

Software Support

  • Linux
  • Yocto
  • Ubuntu
  • Android

i.MX6 Solo


EDM1IMX6S10R05E16
  • EDM COMPACT TYPE 1
  • I.MX6 SOLO 1GHZ
  • PMIC NXP MNPF0100
  • 512MB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6S10R05E169377
  • EDM COMPACT TYPE 1
  • I.MX6 SOLO 1GHZ
  • PMIC NXP MNPF0100
  • 512MB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5
EDM1IMX6S10R05MSD
  • EDM COMPACT TYPE 1
  • I.MX6 SOLO 1GHZ
  • PMIC NXP MNPF0100
  • 512MB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6S10R05MSD9377
  • EDM COMPACT TYPE 1
  • I.MX6 SOLO 1GHZ
  • PMIC NXP MNPF0100
  • 512MB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

i.MX6 Dual



EDM1IMX6D10R05E16
  • EDM COMPACT TYPE 1
  • I.MX6 DUAL 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN

EDM1IMX6D10R10E169377
  • EDM COMPACT TYPE 1
  • I.MX6 DUAL 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

EDM1IMX6D10R10MSD
  • EDM COMPACT TYPE 1
  • I.MX6 DUAL 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN

EDM1IMX6D10R10MSD9377
  • EDM COMPACT TYPE 1
  • I.MX6 DUAL 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

i.MX6 DualLite


EDM1IMX6U10R10E16
  • EDM COMPACT TYPE 1
  • I.MX6 DUALLITE 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6U10R10E169377
  • EDM COMPACT TYPE 1
  • I.MX6 DUALLITE 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5
EDM1IMX6U10R10MSD
  • EDM COMPACT TYPE 1
  • I.MX6 SOLO 1GHZ
  • PMIC NXP MNPF0100
  • 1MB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6U10R10MSD9377
  • EDM COMPACT TYPE 1
  • I.MX6 DUALLITE 1GHZ
  • PMIC NXP MNPF0100
  • 1GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

i.MX6 Quad


 EDM1IMX6Q10R20E16
  • EDM COMPACT TYPE 1
  • I.MX6 QUAD 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
 EDM1IMX6Q10R20E169377
  • EDM COMPACT TYPE 1
  • I.MX6 QUAD 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5
EDM1IMX6Q10R20MSD
  • EDM COMPACT TYPE 1
  • I.MX6 QUAD 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6Q10R20MSD9377
  • EDM COMPACT TYPE 1
  • I.MX6 QUAD 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

i.MX6 Quad Plus


 EDM1IMX6QP10R20E16
  • EDM COMPACT TYPE 1
  • I.MX6 QUADPLUS 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6QP10R20E169377
  • EDM COMPACT TYPE 1
  • I.MX6 QUADPLUS 1GHZ
  • PMIC
  • 2GB RAM
  • 16GB e.MMC
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5
EDM1IMX6QP10R20MSD
  • EDM COMPACT TYPE 1
  • I.MX6 QUADPLUS 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
EDM1IMX6QP10R20MSD9377
  • EDM COMPACT TYPE 1
  • I.MX6 QUADPLUS 1GHZ
  • PMIC NXP MNPF0100
  • 2GB RAM
  • MicroSD Cardslot
  • 1GB Atheros AR8035 Gigabit LAN
  • Qualcomm Atheros QCA9377 Wi-Fi 5 - 802.11 a/b/g/n/ac
  • Qualcomm Atheros QCA9377 Bluetooth 5

Other configurations such as different CPU, optional interfaces and storage capacities on project basis and subject to minimum order quantities.
